Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–187
LIMIT:TEMPLate:SOUrce CH2
specifies that the template waveform for limit tests is the waveform currently
acquired using channel 2.
LIMIT:TEMPLate:SOUrce?
might return MATH3, specifying that the template waveform for limit tests is the
waveform currently stored as the MATH3 waveform.
LIMit:TEMPLate:TOLerance:HORizontal
Sets or queries the amount, in units of horizontal divisions, by which the source
waveform is varied horizontally when creating the destination waveform.
Limit Test
LIMit:COMPARE:CH<x>

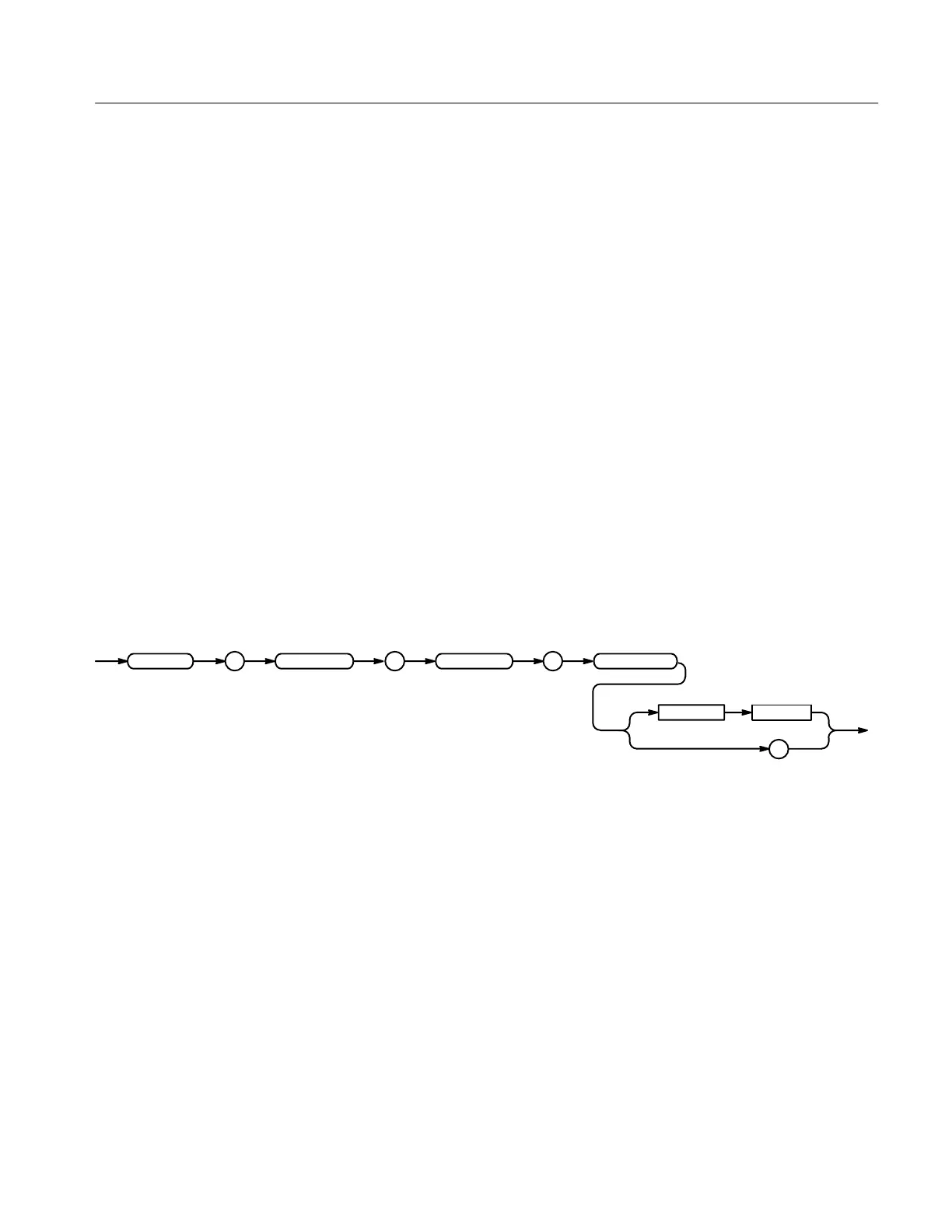

LIMit:TEMPLate:TOLerance:HORizontal <NR3>
LIMit:TEMPLate:TOLerance:HORizontal?
LIMit
:
TEMPLate TOLerance
:
HORizontal
:
<NR3>
?
<Space>
<NR3> is the amount, in horizontal divisions, by which the current waveform is
allowed to deviate from the template waveform without exceeding the limits set
in the limit test. The range is 0 to 5 divisions.
LIMIT:TEMPLate:TOLerance:HORizontal 1.0
specifies that the current waveform is deemed to be close enough to the template
waveform if it is within ±1.0 horizontal division.
LIMIT:TEMPLate:TOLerance:HORizontal?
might return 1.0, specifying that the current waveform is close enough to the
template waveform if it is within ±1.0 horizontal division.
Examples
Group
Related Commands
Syntax
Arguments
Examples
