LIMit:TEMPLate:TOLerance:VERTical
Sets or queries the amount, in units of vertical divisions, by which the source
waveform is varied vertically when creating the destination waveform.
Limit Test
LIMit:COMPARE:CH<x>
LIMit:TEMPLate:TOLerance:VERTical <NR3>
LIMit:TEMPLate:TOLerance:VERTical?

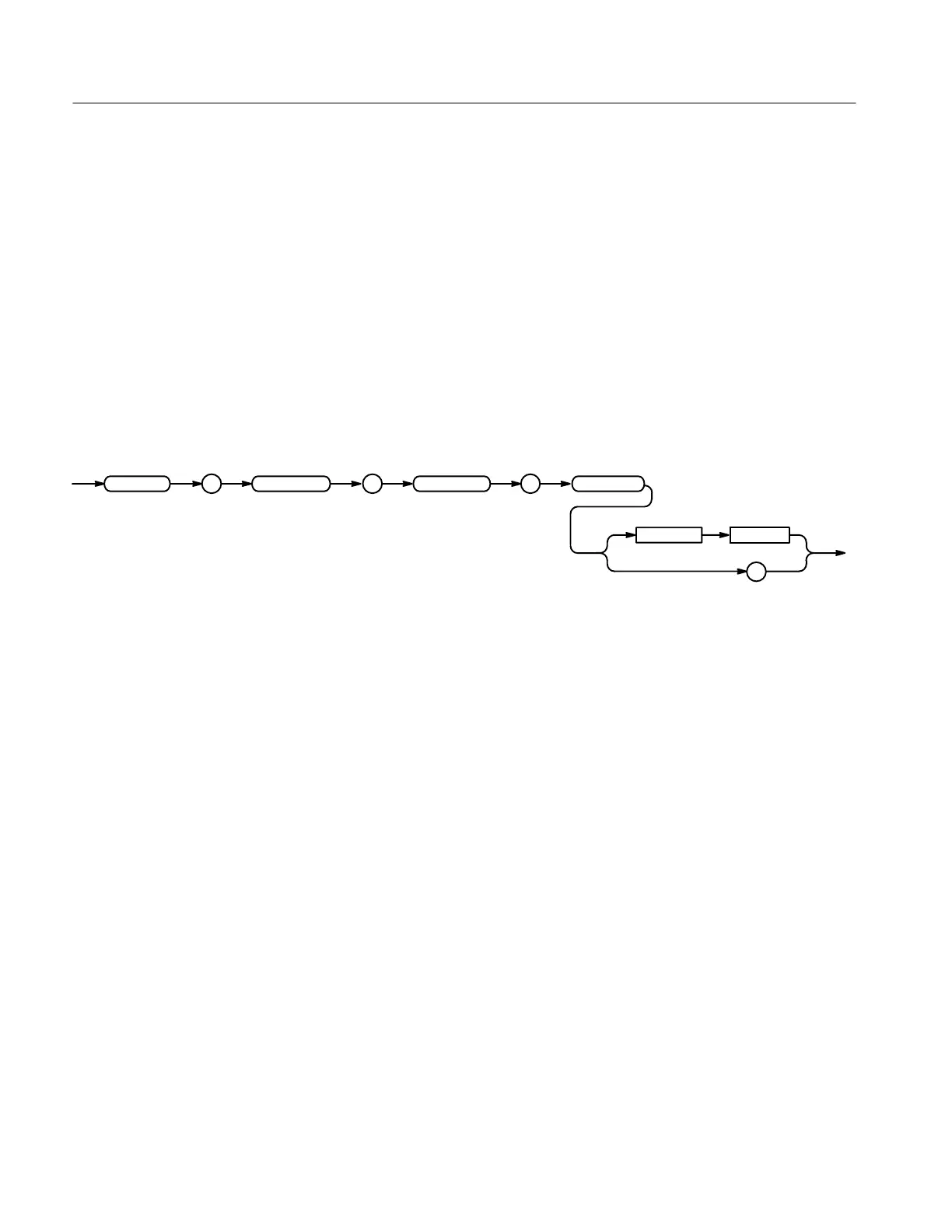

LIMit
:
TEMPLate TOLerance
:
VERTical
:
<NR3>
?
<Space>
<NR3> is the amount, in vertical divisions, by which the current waveform is
allowed to deviate from the template waveform without exceeding the limits set
in the limit test. The range is 0 to 5 divisions.
LIMIT:TEMPLate:TOLerance:VERTical 1.0
specifies that the current waveform is close enough to the template waveform if
it is within ±1.0 vertical division from the template waveform.
LIMIT:TEMPLate:TOLerance:VERTical?
might return 1.0, specifying that the current waveform is close enough to the
template waveform if it is within ±1.0 vertical division.
LOCk
Enables and disables all front panel buttons and knobs. There is no front-panel
equivalent.
Miscellaneous
UNLock, Remote Enable Group, Local Lockout Group
Group
Related Commands
Syntax
Arguments
Examples
Group
Related Commands
