Command Descriptions
2–278
TDS Family Oscilloscope Programmer Manual
PATTERN5 | PATTERN6 | PATTERN7 | P0 | P1 | P2 | P3 | P4 | P5 | P6
|P7}

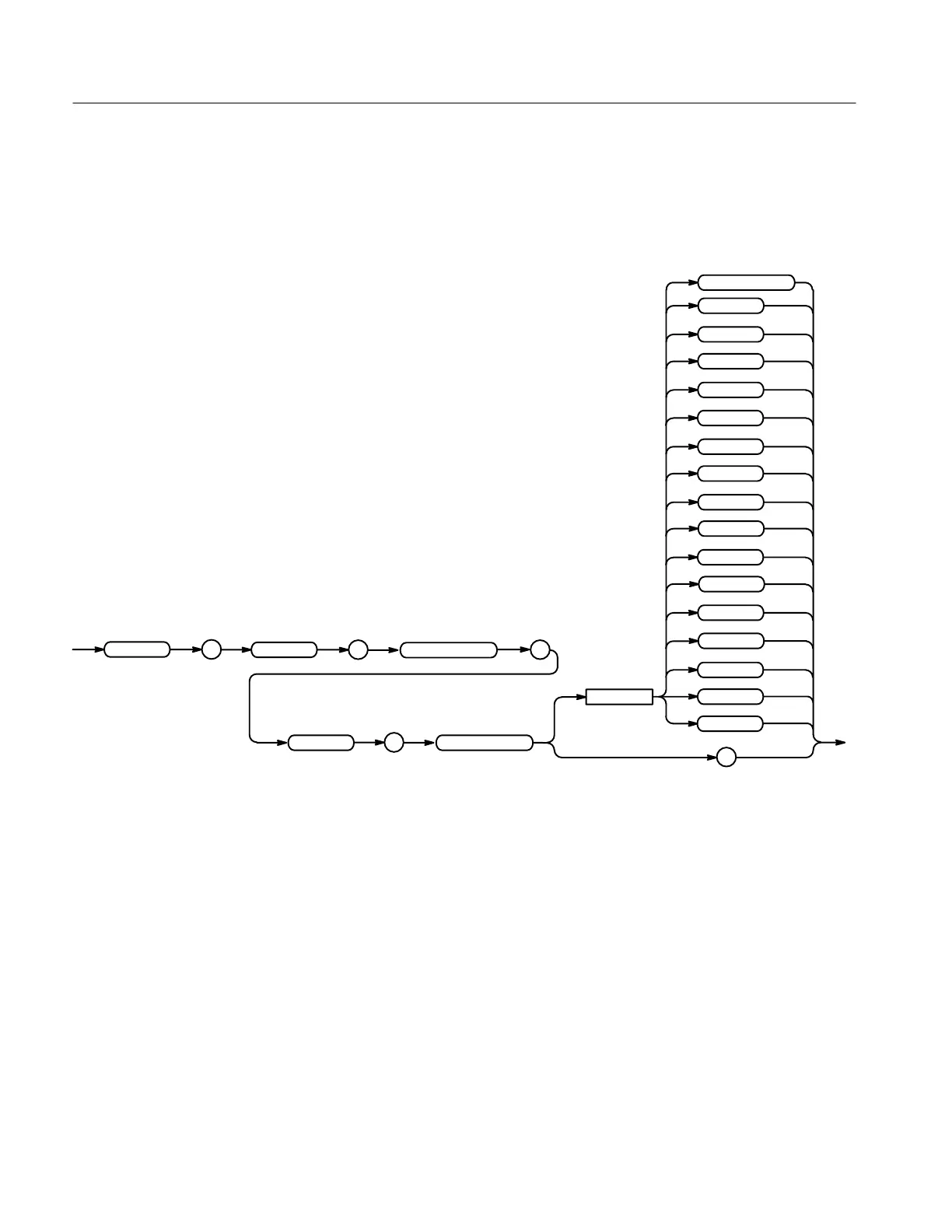

TRIGger:MAIn:COMMunication:NRZ:PULSEForm?
TRIGger :
:
MAIn :
<Space>
P5
?
P6
COMMunication
NRZ
EYEdiagram
:
PULSEForm
P4
P3
P2
P1
PATTERN7
PATTERN6
PATTERN5
PATTERN4
PATTERN3
PATTERN2
PATTERN1
FALL
RISE
P7
EYEdiagram selects an Eye Diagram image. This is the default value.
RISE selects a positive edge trigger.
FALL selects a negative edge trigger.
PATTERN0 causes a trigger on Pattern0. Intersymbol interference can be identified
with the Pattern Violations Trigger. The leading symbol (0, 1, x) and trailing
symbol (0, 1, x) are bit values that precede or follow the three symbols of
interest (in the middle). The underlying trigger that implements Pattern Violation
Triggering is pulse width triggering.
PATTERN1 causes a trigger on Pattern1 1 001 x.
PATTERN2 causes a trigger on Pattern2 x 010 x.
PATTERN3 causes a trigger on Pattern3 x 011 0.
Arguments
