Tektronix TDS 500C Programmer's Manual

Command Descriptions
TDS Family Oscilloscope Programmer Manual
2–279
PATTERN4 causes a trigger on Pattern4 x 100 1.
PATTERN5 causes a trigger on Pattern5 x 101 x.
PATTERN6 causes a trigger on Pattern6 0 110 x.
PATTERN7 causes a trigger on Pattern7 0 111 0.
P0 is a synonym for PATTERN0.
P1 is a synonym for PATTERN1.
P2 is a synonym for PATTERN2.
P3 is a synonym for PATTERN3.
P4 is a synonym for PATTERN4.
P5 is a synonym for PATTERN5.
P6 is a synonym for PATTERN6.
P7 is a synonym for PATTERN7.
TRIGGER:MAIN:COMM:NRZ:PULSEFORM EYEDIAGRAM
selects a trigger on an Eye Diagram image.
TRIGger:MAIn:COMMunication:SOUrce
TDS 500C & 700C Only
Sets or queries the source for the main communication trigger. This is equivalent
to selecting the source in the Communication Source side menu.
Trigger
TRIGger:MAIn:COMMunication:SOUrce CH<x>
TRIGger:MAIn:COMMunication:SOUrce?
?

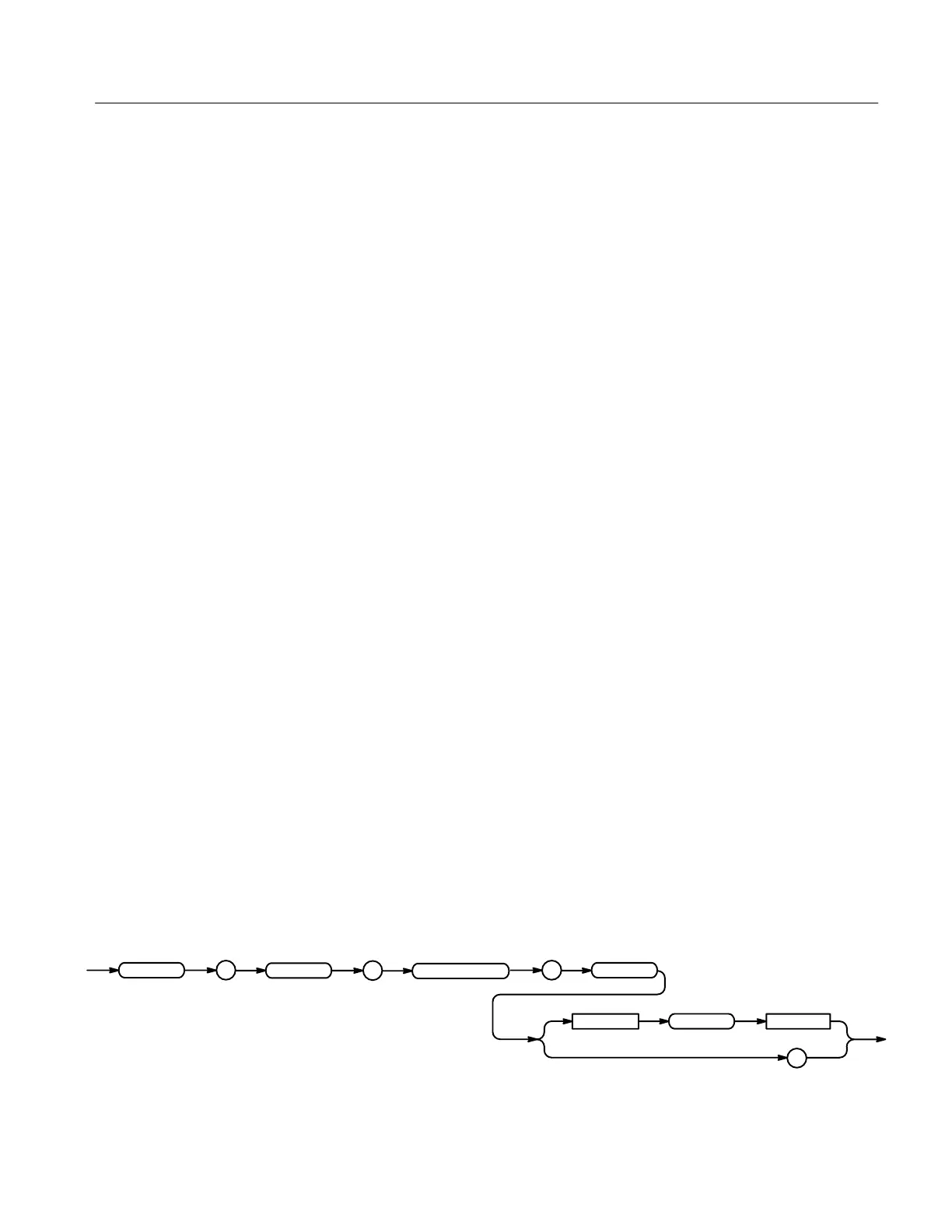

<Space> <x>
CH
TRIGger
:
:MAIn
SOUrce
:
COMMunication
Examples
Group
Syntax
