Command Descriptions
2–66
TDS Family Oscilloscope Programmer Manual
itself is not altered. The entire label can be returned as a query response
regardless of what is displayed.
assigns the label “SETUP1” to the third main menu button.
APPMenu:LABel:RIGHT<x>
Defines a label for the side menu button that is specified by <x>. Side menu
buttons are located on the right side of the display, and are numbered from 1 to 5
starting with the top-most button.
Application Menu
#$ "!
#$
"!
#
$
"! is the menu button label and can include any of the characters shown
in the TDS Character Chart in Appendix A. The maximum length of the label is
1000 characters. The label is displayed in the area to the left of the specified side
menu button. Refer to the APPMenu:LABel:BOTTOM<x> command on page
2–65 for more information on defining menu labels.
The label area is 72 pixels high and 112 pixels wide. The length of the label that
fits in the label area depends on the contents of the label, because the width of
characters varies. The label area is about 12 characters wide and 4 lines high. For
a complete list of character widths in pixels, see Table A–1 on page A–1.
%
displays the label “TEST ON” next to the top side menu button.
APPMenu:TITLe
Sets or queries the user-defined application menu title. The title is displayed
above the side menu.
Examples
Group

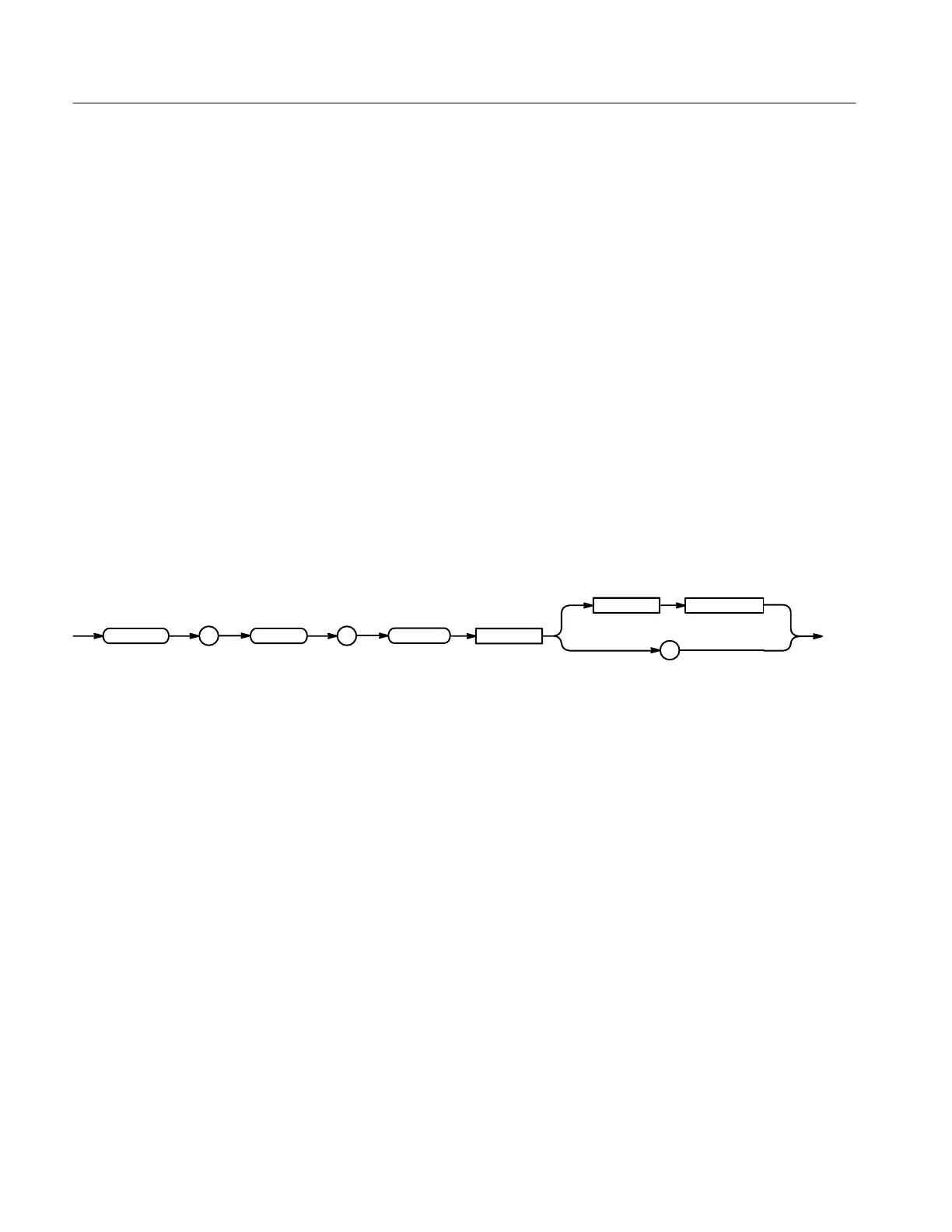

Syntax
