Tektronix TDS 520A - Figure 6 1: External Modules

Removal and Installation Procedures
Maintenance
6Ć12
Line Cord
Fuse Cap
Handle
Trim Ring
Front Panel
Knobs
Front Cover
Line Fuse
Handle Cap
Attenuator
Cover
Foot Pad
Flip Stand
Cabinet
Rear Cover
A12 Front Panel
Assembly
Foot
Display
Frame
Menu
Buttons
EMI Gasket
EMI Gasket

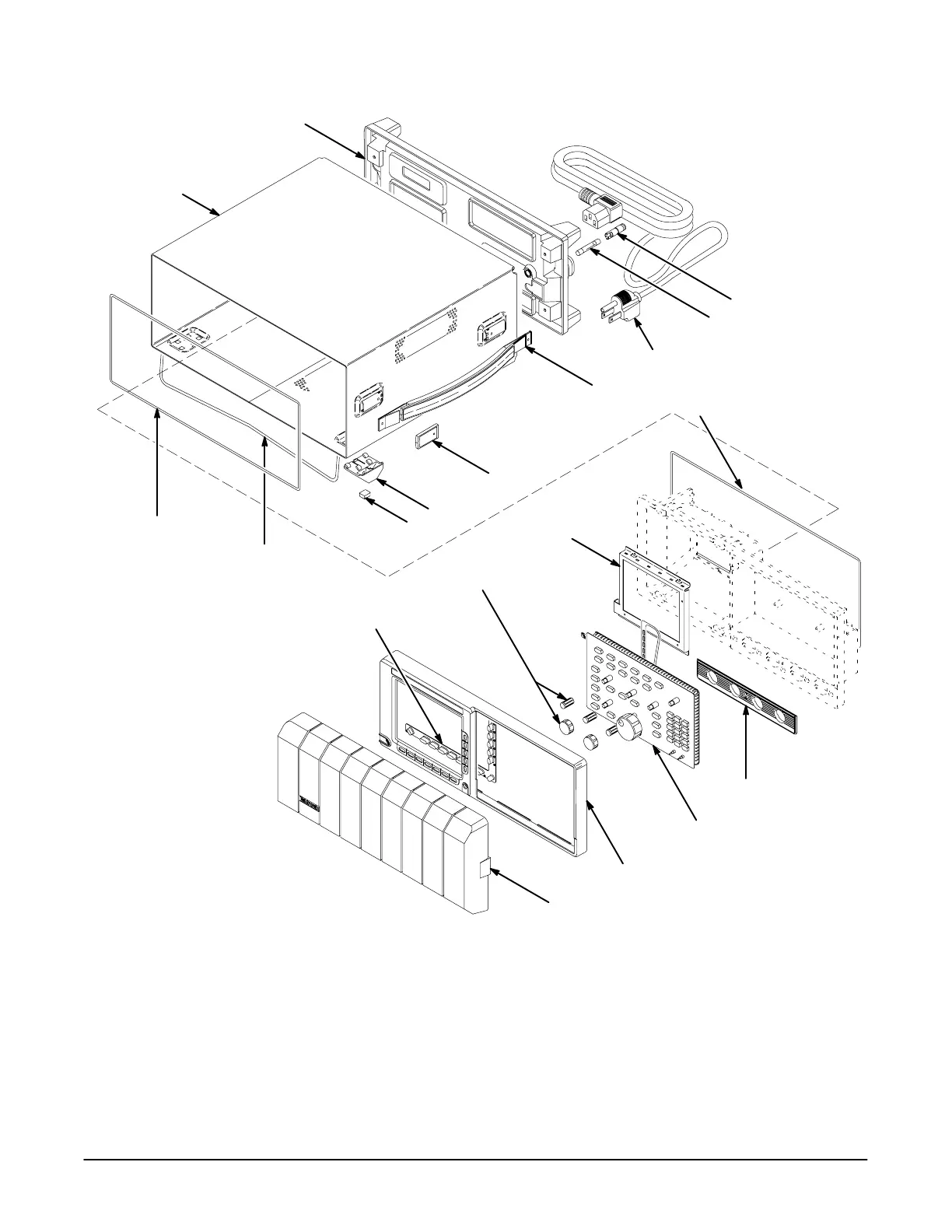

Figure 6Ć1:ăExternal Modules
