Removal and Installation Procedures
Maintenance
6Ć52
Rotate the edge of
the board upward as
indicated to clear
the lip of the main
chassis when lifting
this board out.

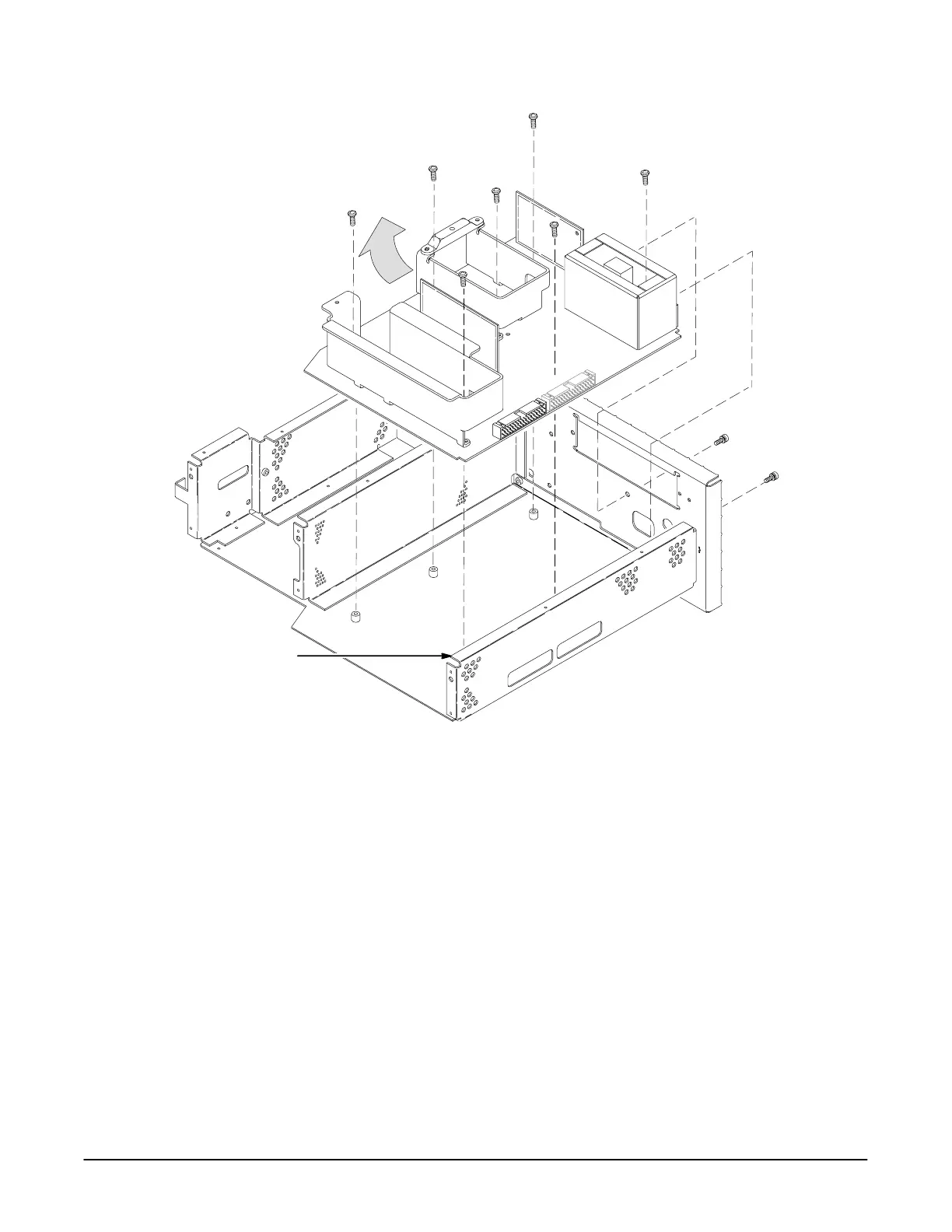

Figure 6Ć24:ăA16 Low Voltage Power Supply Removal
