Removal and Installation Procedures
Maintenance
6Ć30
Handle Removal
Flip Stand
Removal
Foot Removal
Handle Cap
Removal
Push down to flex
handle and flatten
against cabinet; then
pull it out.

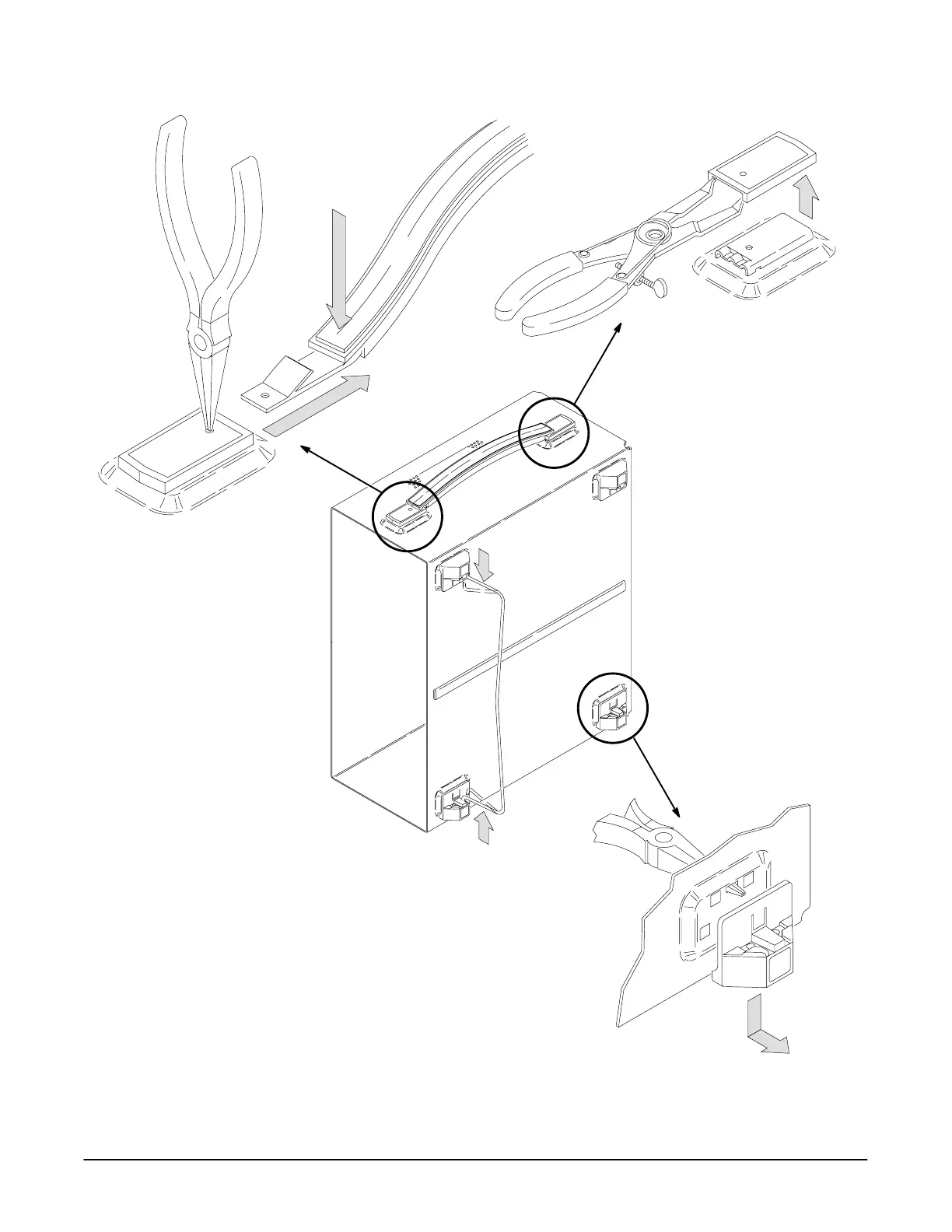

Figure 6Ć11:ăCabinet Modules Removal
