Hardcopy
TDS 520A, 524A, 540A, & 544A User Manual
3Ć63
Date and Time Display

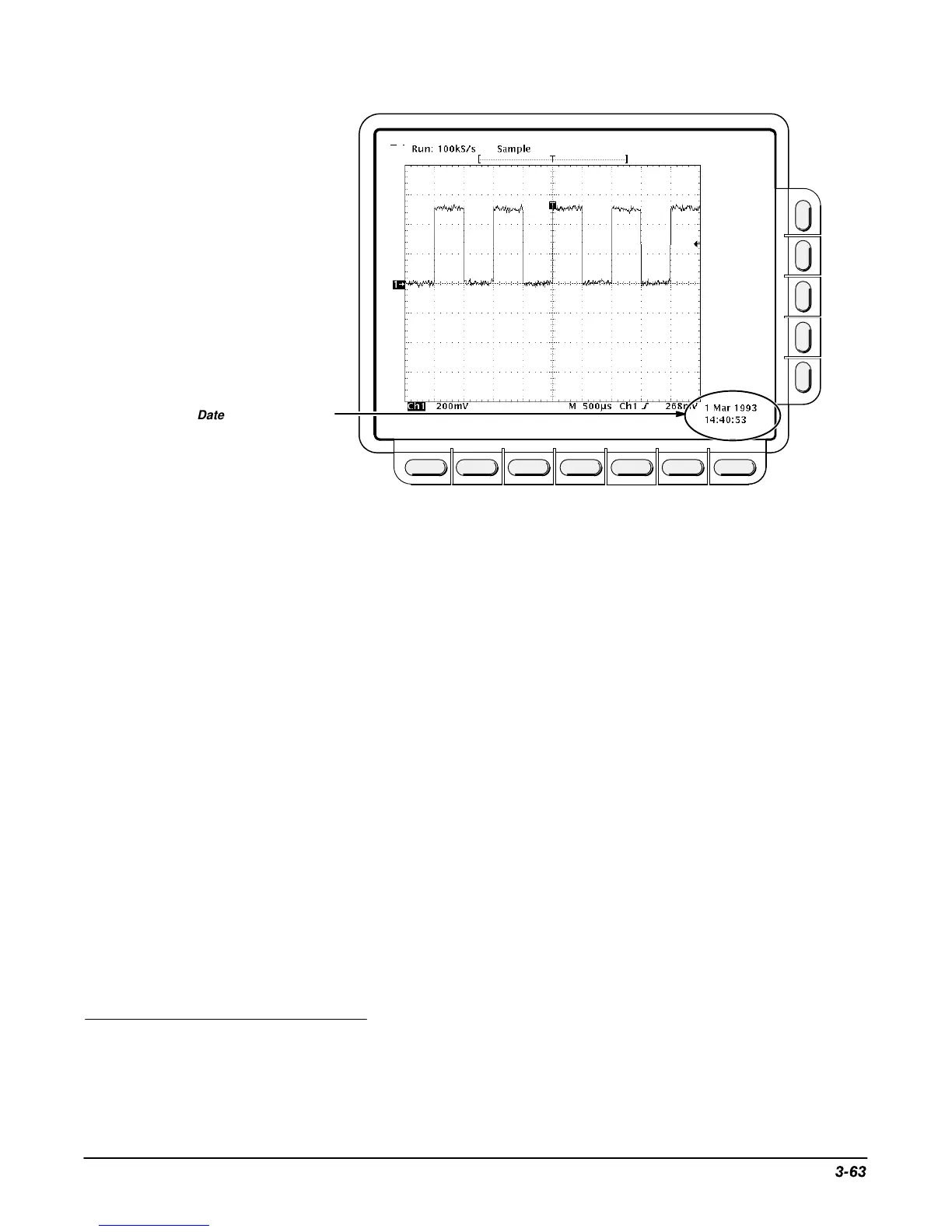

Figure 3-33: Date and Time Display
5. Use the general purpose knob or the keypad to set the parameter you
have chosen to the value desired. (The format when using the keypad is
day.month. For example, use 23.6 for the 23
rd
of June.)
6. Repeat steps 4 and 5 to set other parameters as desired.
7. Press OK Enter Date/Time (side) to put the new settings into effect. This
sets the seconds to zero.
NOTE
When setting the clock, you can set to a time slightly later than the
current time and wait for it to catch up. When current time catches
up to the time you have set, pressing Ok Enter Date/Time (side)
synchronizes the set time to the current time.
8. Press CLEAR MENU to see the date/time displayed with the new set-
tings.
9. Press HARDCOPY to print your date/time stamped hardcopy.
The ability of the digitizing oscilloscope to print a copy of its display in many
formats (see page 3-59) gives you flexibility in choosing a hardcopy device. It
also makes it easier for you to place oscilloscope screen copies into a desk-
top publishing system.
