Saving and Recalling Waveforms
Reference
3Ć134

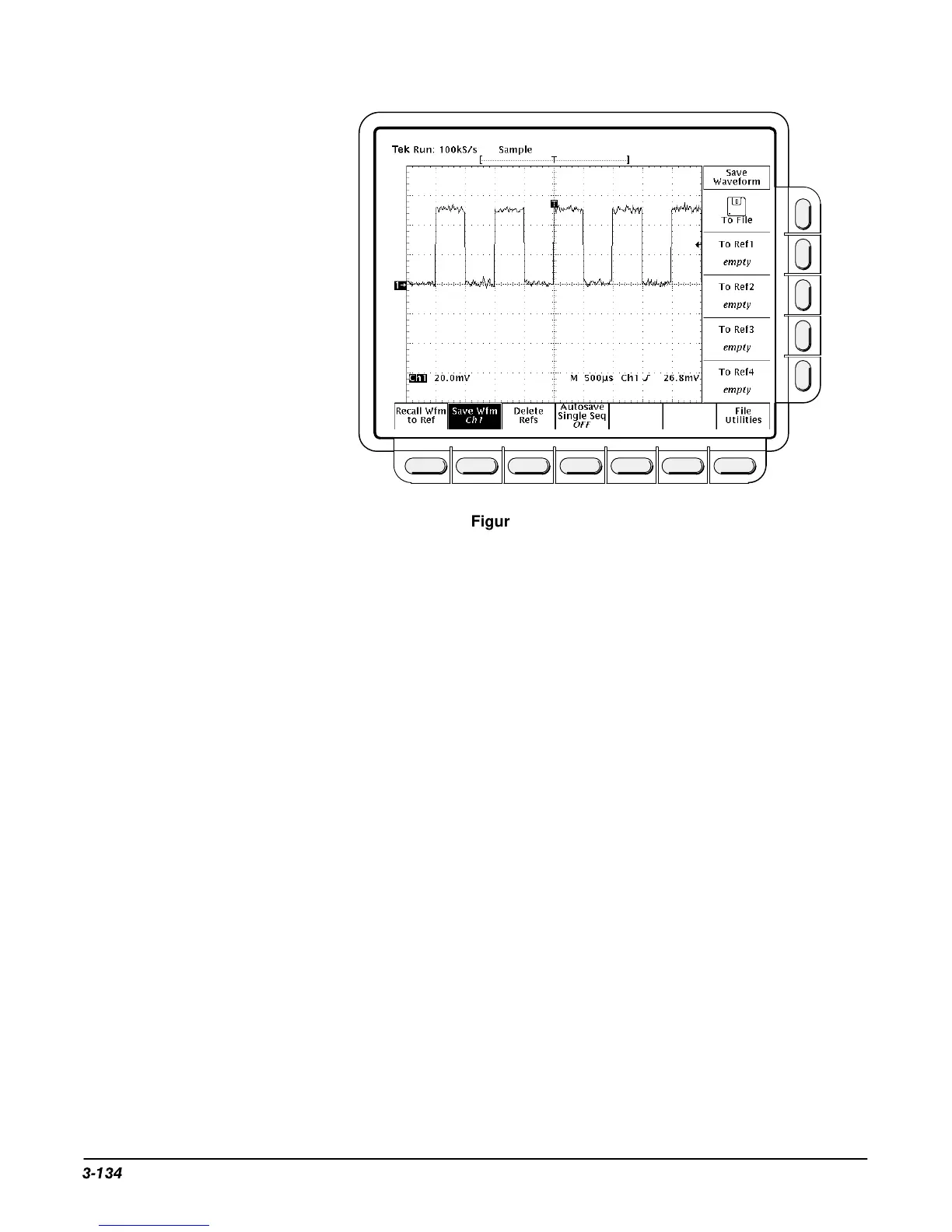

Figure 3-69: Save Waveform Menu
Deleting Waveforms
You can choose the Delete Refs main menu item and then select the refer-
ences you no longer need from the side menu (Delete Ref1, Delete Ref2,
Delete Ref3, Delete Ref4, or Delete All Refs).
Deleting All Waveforms and Setups
You can remove all stored reference waveforms and setups using the feature
called Tek Secure. It is described under
Saving and Recalling Setups.
See
“Deleting All Setups and Waveforms” on page 3-131.
Displaying a Saved Waveform
To display a waveform in internal reference memory:
Press MORE ➞ Ref1, Ref2, Ref3, or Ref4 (main).
Note that in Figure 3-70, the main menu items Ref2, Ref3, and Ref4 appear
shaded while Ref1 does not. References that are empty appear shaded in the
More main menu.
Recalling a Waveform From Disk
To recall a waveform from disk (optional on the TDS 620A & TDS 640A) to an
internal reference memory, press save/recall WAVEFORM ➞ Recall Wfm To
Ref. Then use the general purpose knob to select the exact file from the
