Operating Interface Maps
TDS 500C, TDS 600B, & TDS 700C User Manual
2–5

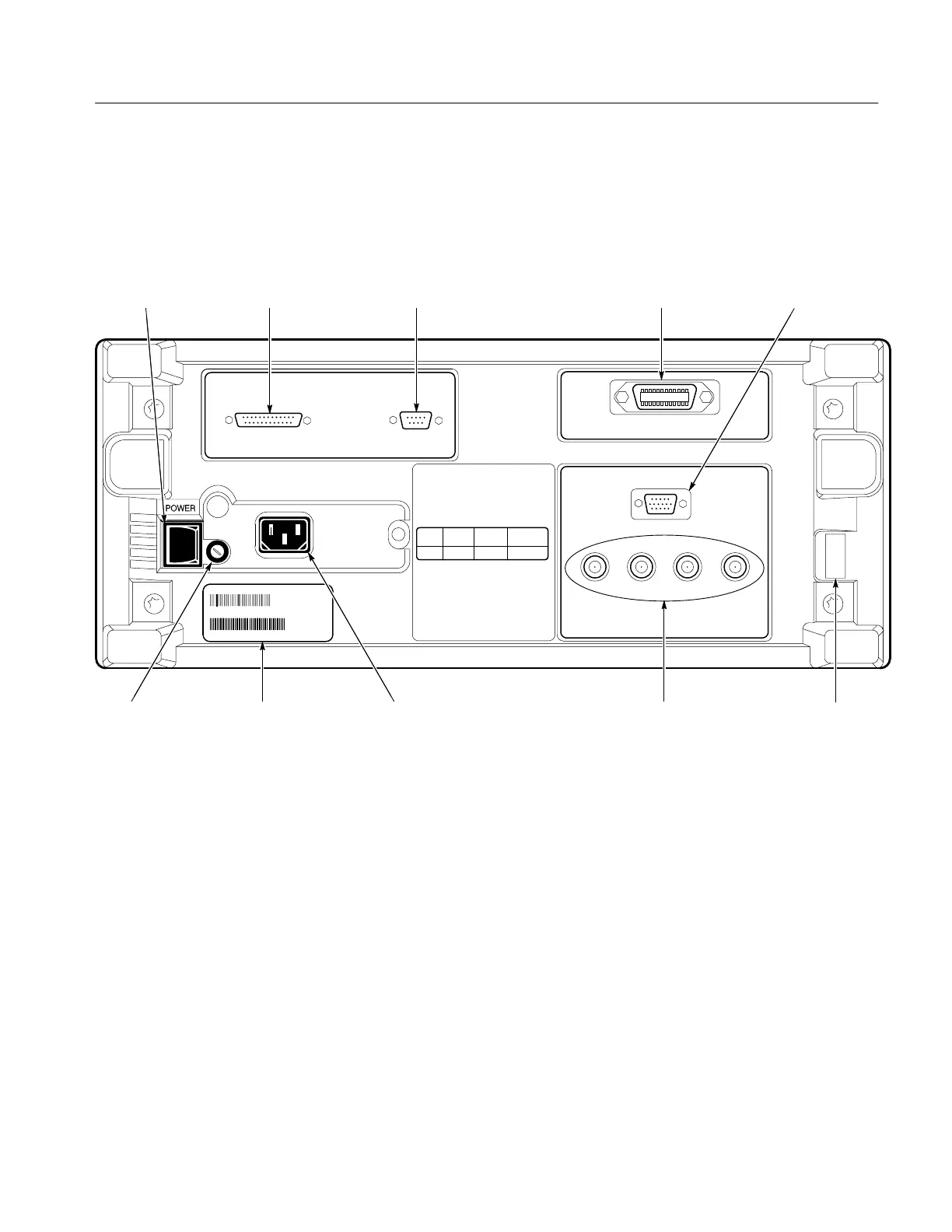

Rear Panel Map
Rear Panel Connectors Security Bracket
GPIB Connector,
page 3–174
Centronics Connector
Principal Power
Switch,
page 1–7
Serial Number
SIGNAL OUTPUT –
(Provides Analog Signal Output
from CH3 – or AX1 – @ 10 mV/div)
AUX TRIGGER INPUT –
(Provides Auxiliary Trigger Signal Input)
MAIN TRIGGER OUTPUT –
(Provides Main Trigger (TTL) Output)
DELAYED TRIGGER OUTPUT –
(Provides Delayed Trigger (TTL) Output)
RS-232 Connector
Fuse,
page 1–6
Power Connector,
page 1–6
VGA Output
