MEASUrement:REFLevel:ABSolute:MID2
Sets or queries the mid reference level for the “to” waveform when taking a
delay measurement, and is the 50% reference level when MEASUrement:RE-
FLevel:METHod is set to ABSolute. This command is equivalent to setting the
Reference Levels in the Measure menu.
Measurement

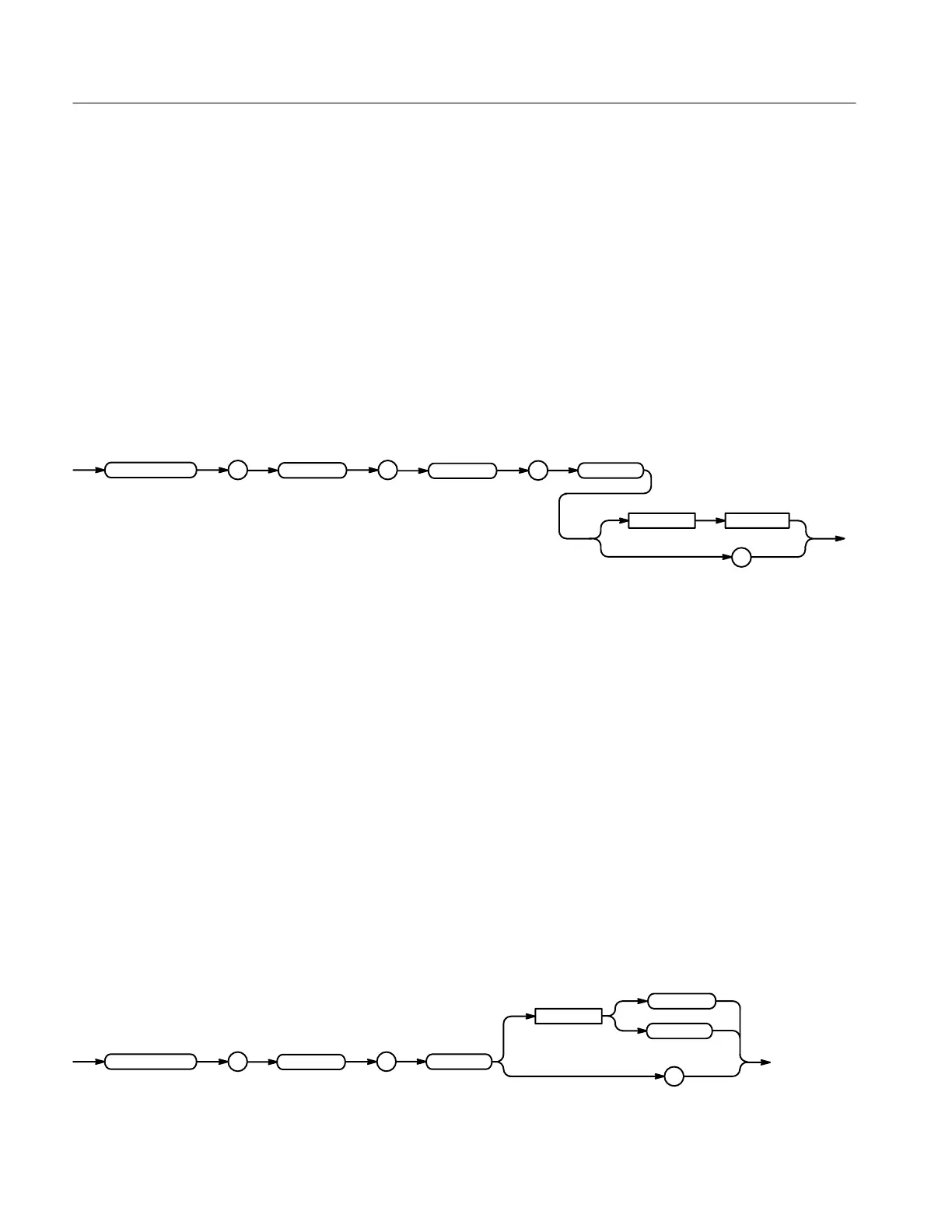

MEASUrement:REFLevel:ABSolute:MID2 <NR3>
MEASUrement:REFLevel:ABSolute:MID2?
MID2
?
<Space> <NR3>
MEASUrement :
REFLevel
:
ABSolute
:
<NR3> is the mid reference level, in volts. The default is 0.0 V.
MEASUREMENT:REFLEVEL:ABSOLUTE:MID2 0.5
sets the mid reference level for the delay waveform to 0.5 volts.
MEASUrement:REFLevel:METHod
Specifies which reference levels are used for measurement calculations. This
command is equivalent to setting the levels in the Reference Levels side menu.
Measurement
MEASUrement:REFLevel:METHod { ABSolute | PERCent }
MEASUrement:REFLevel:METHod?
METHod
MEASUrement :
REFLevel
:
<Space>
?
ABSolute
PERCent
Group
Syntax
Arguments
Examples
Group
Syntax
