Command Descriptions

TDS Family Oscilloscope Programmer Manual

2–191

LOW

MEASUrement :

REFLevel

ABSolute

<NR3> is the low reference level, in volts. The default is 0.0 V.

MEASUREMENT:REFLEVEL:ABSOLUTE:LOW?

might return 0.0E+0 as the low reference level.

MEASUrement:REFLevel:ABSolute:MID

Sets or queries the mid reference level, and is the 50% reference level when

MEASUrement:REFLevel:METHod is set to ABSolute. This command is

equivalent to setting the Reference Levels in the Measure menu.

Measurement

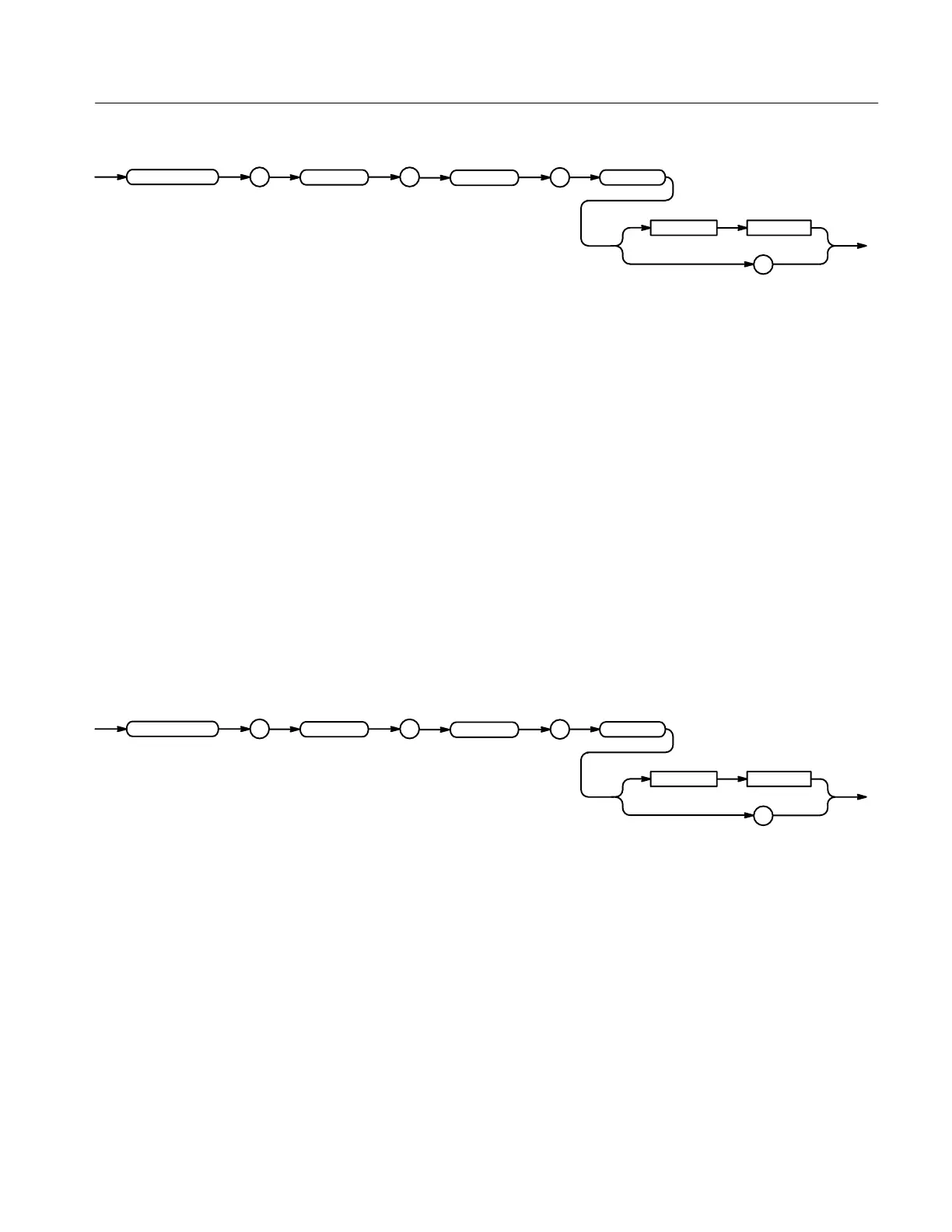

MEASUrement:REFLevel:ABSolute:MID <NR3>

MEASUrement:REFLevel:ABSolute:MID?

MID

MEASUrement

REFLevel

ABSolute

<NR3> is the mid reference level, in volts. The default is 0.0 V.

MEASUREMENT:REFLEVEL:ABSOLUTE:MID .71

sets the mid reference level to .71 volts.

Arguments

Examples

Group

Syntax

Arguments

Examples
