Command Descriptions

2–214

TDS Family Oscilloscope Programmer Manual

SPREADSheet

<Space>

INTERNal

MATHCad

FILEFormatSAVe : WAVEFORM :

INTERNal specifies the internal format. Internal format files have a .wfm

extension.

SPREADSheet specifies the spreadsheet format. Spreadsheet format files have a

.CSV extension.

MATHCad specifies the MathCad format. MathCad format files have a .DAT

extension.

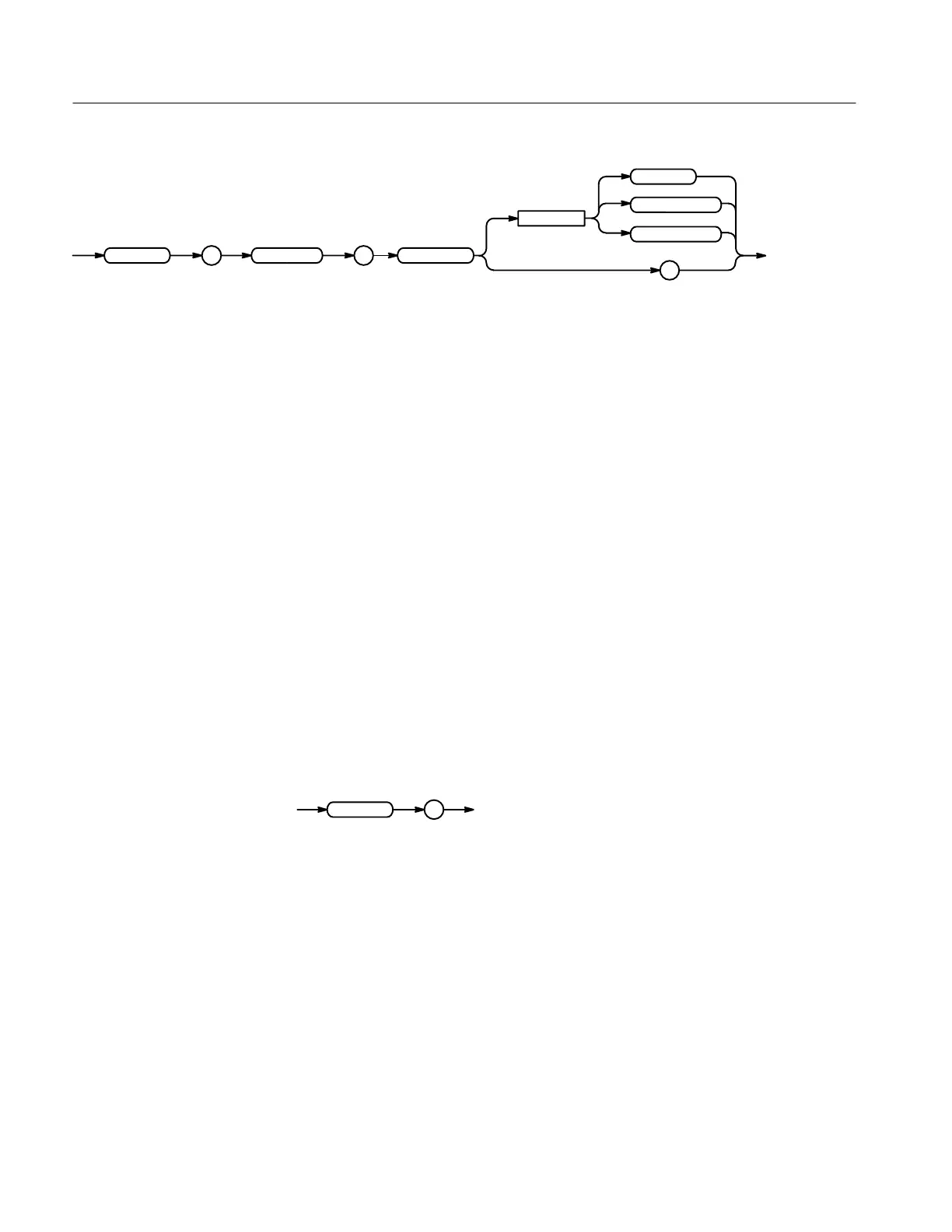

SAVE:WAVEFORM:FILEFORMAT SPREADSHEET

specifies the waveform, when saved, will be stored in a spreadsheet–compatible

format.

SELect? (Query Only)

Returns the selected waveform and the display status of all waveforms.

Vertical

SELect?

SELect ?

SELECT?

might return :SELECT:CH1 1;CH2 0;CH3 0;CH4 0;MATH1 0;

MATH2 0;MATH3 0;REF1 0;REF2 0;REF3 0;REF4 0;SELECT CH1

Arguments

Examples

Group

Syntax

Examples
