DELay
TRIGger
:
EVENTS
?
TRIGGER:DELAY:EVENTS?
might return :TRIGGER:DELAY:EVENTS:COUNT 2
TRIGger:DELay:EVENTS:COUNt
Sets or queries the number of events that must occur before the delayed trigger
occurs when TRIGger:DELay:BY is set to EVENTS. This is equivalent to
setting the Delay by Events count in the Delayed Edge Delay side menu.
Trigger

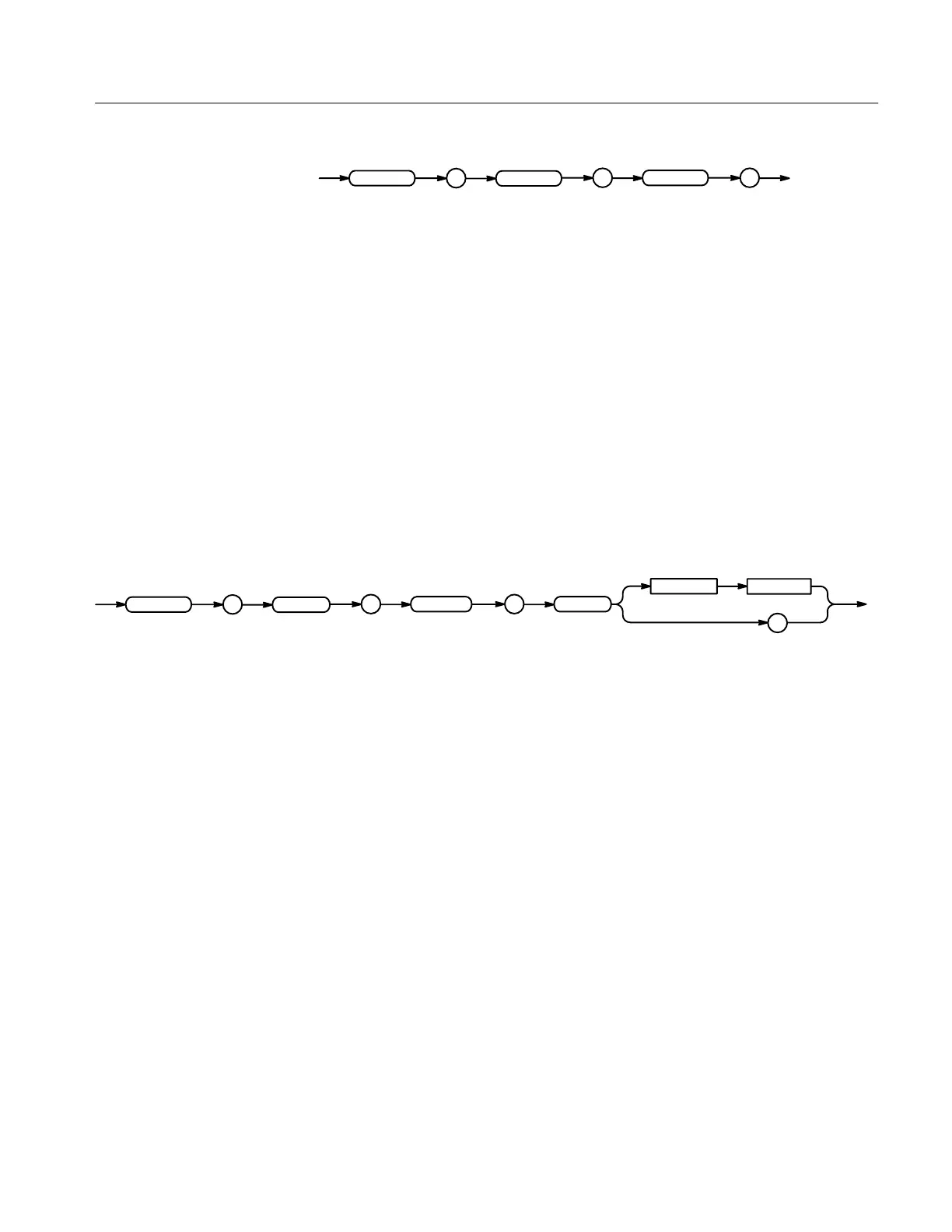

TRIGger:DELay:EVENTS:COUNt <NR1>
TRIGger:DELay:EVENTS:COUNt?
?
<Space>
<NR1>
COUNt
:
DELay
TRIGger
:
EVENTS
:
<NR1> is the number of delayed edge trigger events. The TDS 4XXA range is 1
to (10E7 –1). The TDS 5XXA, 6XXA, and 7XXA range is 2 to 10E7.
TRIGGER:DELAY:EVENTS:COUNT 4
specifies that the delayed trigger will occur four trigger events after the main
trigger.
TRIGGER:DELAY:EVENTS:COUNT?
might return 2, indicating that 2 events must occur after the main trigger before
the delayed trigger can occur.
TRIGger:DELay:LEVel
Selects the level of the delayed trigger. This command is equivalent to setting
LEVel in the Delayed Trig menu.
Trigger
TRIGger:DELay:LEVel { ECL | TTL | <NR3> }
Examples
Group
Syntax
Arguments
Examples
Group
Syntax
