Command Descriptions
2–306
TDS Family Oscilloscope Programmer Manual
is from 0 to 100, and is the percent of the waveform that is to the left of
screen center when the zoom factor is 1x or greater.
It is the percent of the graticule to the right of the waveform center when the
zoom factor is less than 1. It can be less than 1 when using Fit to Screen.
centers the waveform on the display.
ZOOm:HORizontal:SCAle
Sets or queries the horizontal expansion factor. This command is equivalent to
using the front-panel Horizontal Scale knob when Zoom is on. It is also
equivalent to using Zoom Preview with the upper graticule selected in the
TDS 7XXA.
Zoom
is the amount of expansion in the horizontal direction.
It is less than 1 if there is horizontal compression.
It is more than 1 if there is horizontal expansion.

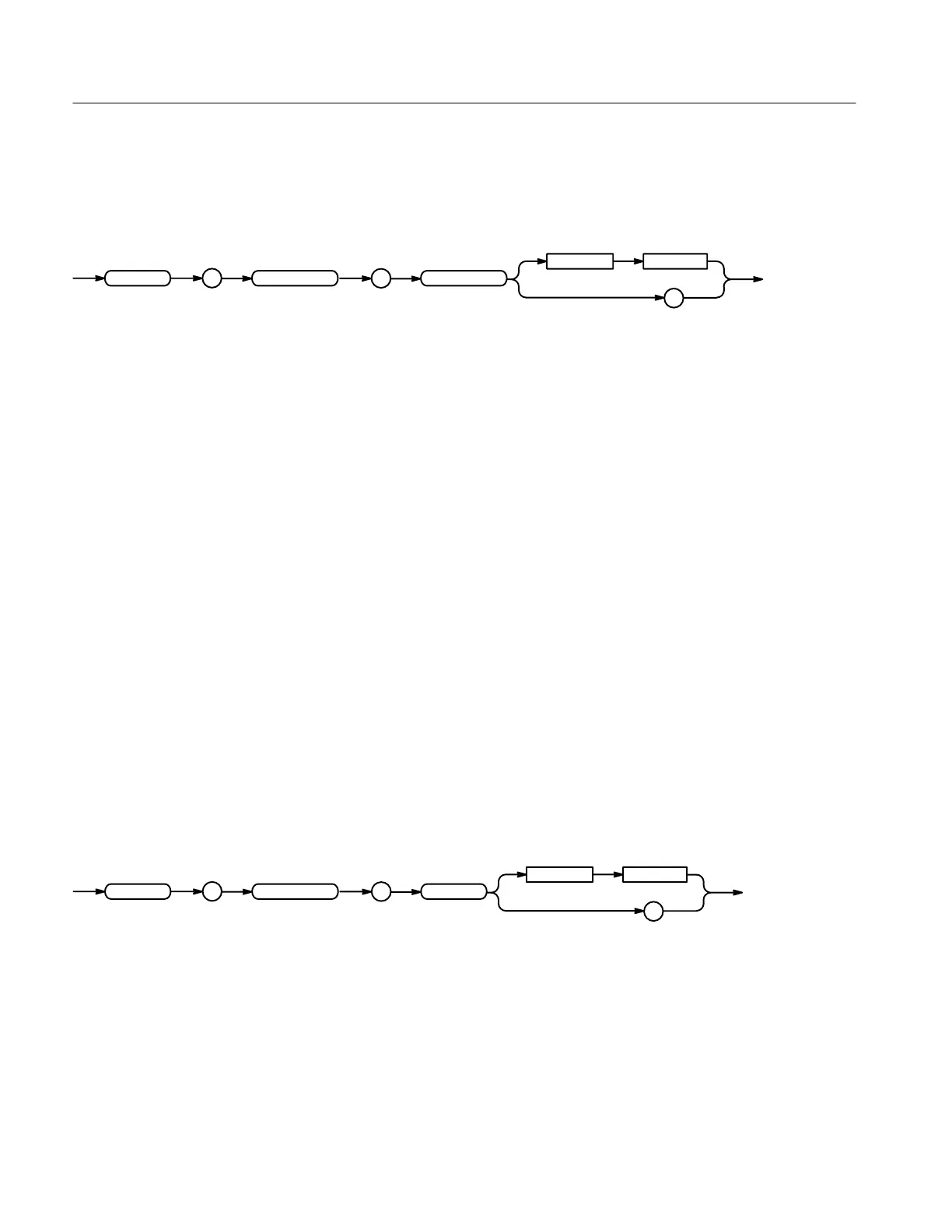

Syntax
Arguments
Examples
Group
Syntax
Arguments
