Saving Waveforms and Setups
3–120
TDS 500B, TDS 600B, & TDS 700A User Manual
To delete a reference waveform(s) that you no longer need:
Press SAVE/RECALL WAVEFORM ➞ Delete Refs (main) ➞ Delete Ref1,
Delete Ref2, Delete Ref3, Delete Ref4, or Delete All Refs (side).
To remove all stored reference waveforms and setups, use the feature called Tek
Secure. See To Delete All Setups and Waveforms on page 3–117.
To display a waveform in internal reference memory:
Press MORE ➞ Ref1, Ref2, Ref3, or Ref4 (main). (See Figure 3–67.)
Note that in Figure 3–67, the main menu items Ref2, Ref3, and Ref4 appear
shaded while Ref1 does not. References that are empty appear shaded in the
More main menu.
To recall a waveform from disk to an internal reference memory, press SAVE/
RECALL WAVEFORM ➞ Recall Wfm To Ref (main) ➞ Recall From File
(side) Then use the general purpose knob to select the exact file from the
resulting scrollbar list. Only files with .WFM extensions are displayed. Finally,
press To Ref1, To Ref2, To Ref3, or To Ref4 (side) to complete the operation.

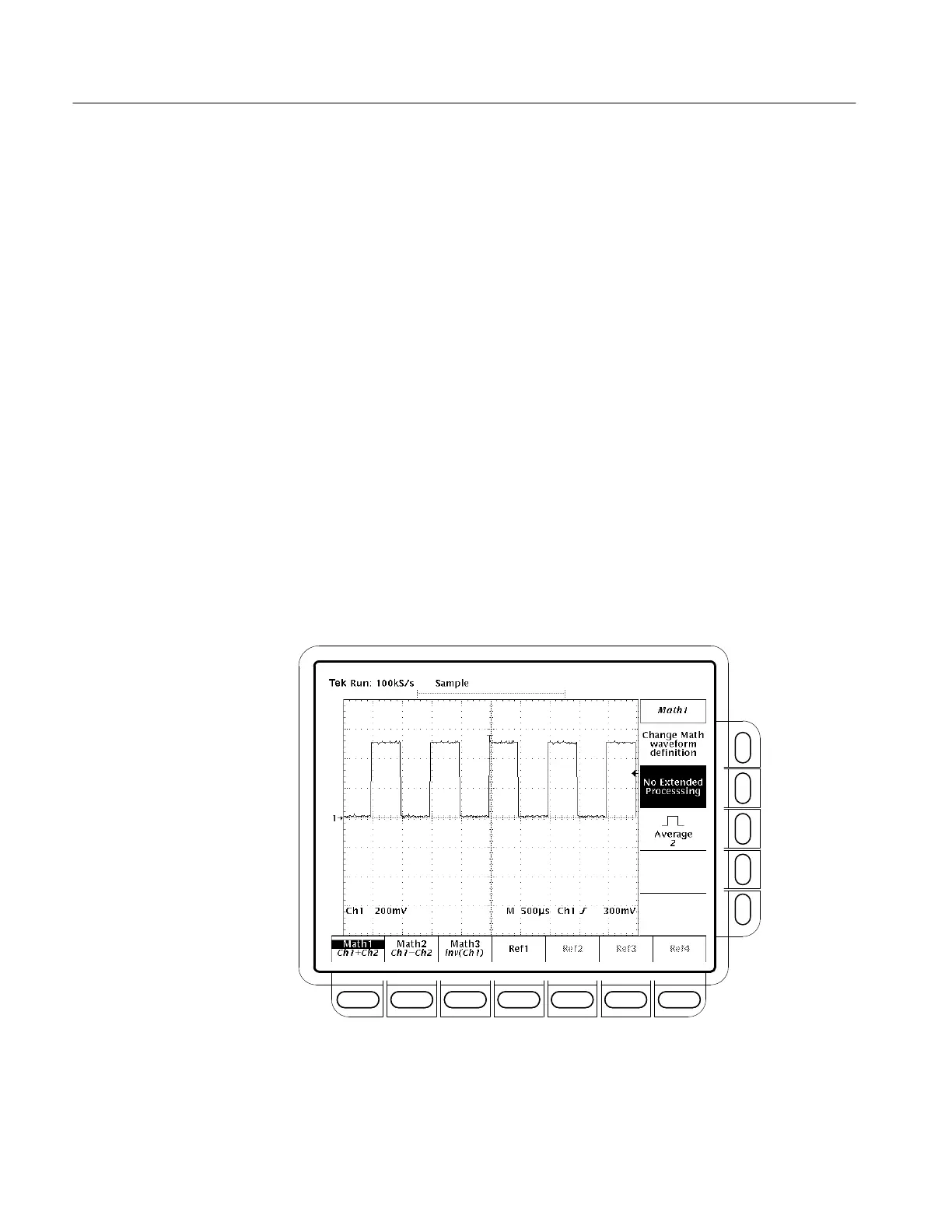

Figure 3–67: More Menu
To Delete Waveforms
To Delete All Waveforms
and Setups
To Display a
Saved Waveform
To Recall a Waveform
From Disk
