Saving Waveforms and Setups

TDS 500B, TDS 600B, & TDS 700A User Manual

3–123

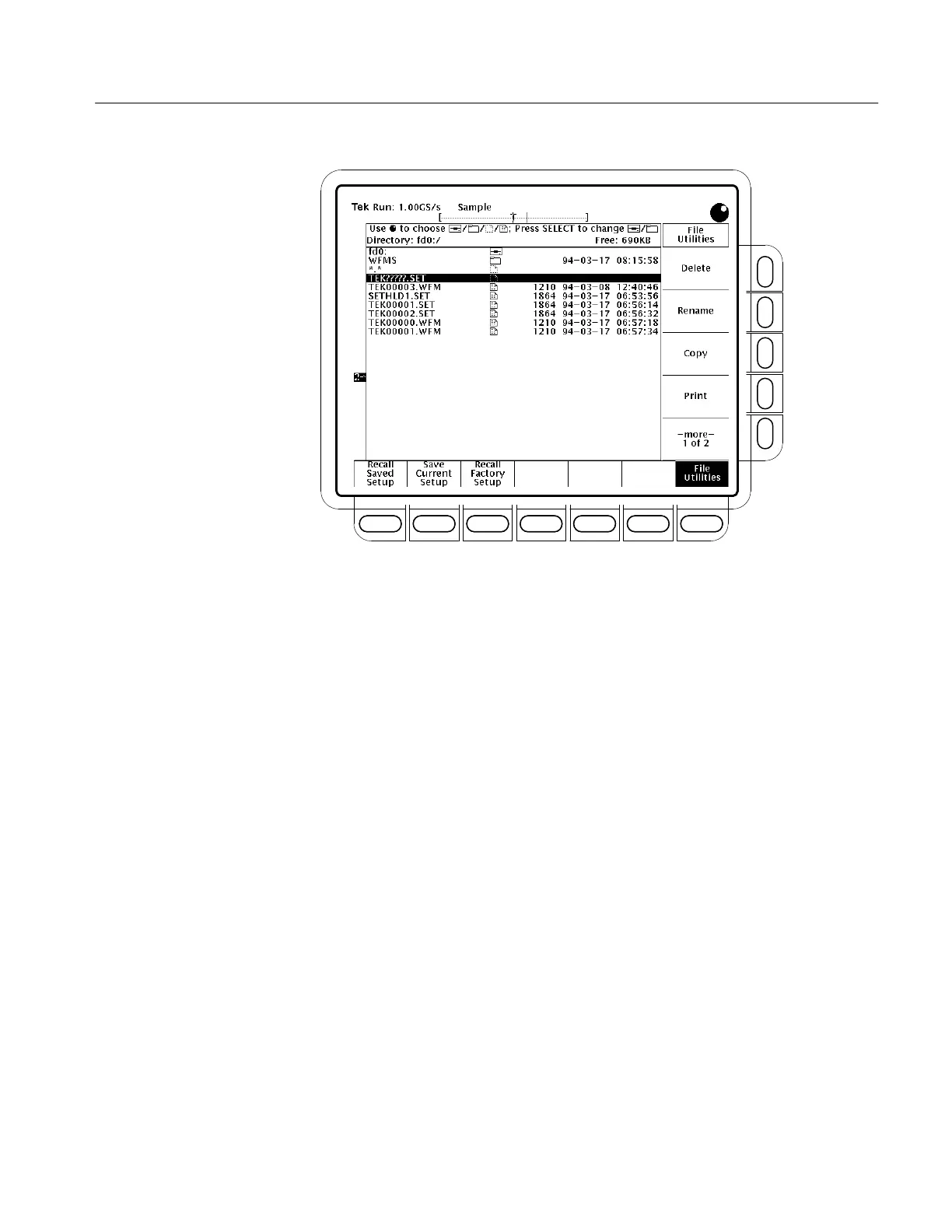

Figure 3–68: File Utilities

To rename a file or directory, turn the general purpose knob until it scrolls the

cursor over the name of the file or directory to delete. For example, to rename

the target file whose default name is  set the cursor over its name.

Then, press the side menu Rename button. (See Figure 3–69).

The labeling menu should appear. Turn the general purpose knob or use the

main-menu arrow keys to select each letter. Press Enter Char from the main

menu to enter each letter. When you have entered the name, press the side menu

OK Accept item.

To Rename
