Saving Waveforms and Setups
TDS 500B, TDS 600B, & TDS 700A User Manual
3–129
3. Press Clear Menu to remove the menu from the display so the date and time
can be displayed. (See Figure 3–72.) (The date and time are removed from
the display when menus are displayed.)
4. Once the oscilloscope is connected to a hardcopy device, press
HARDCOPY to print your date/time stamped hardcopy.

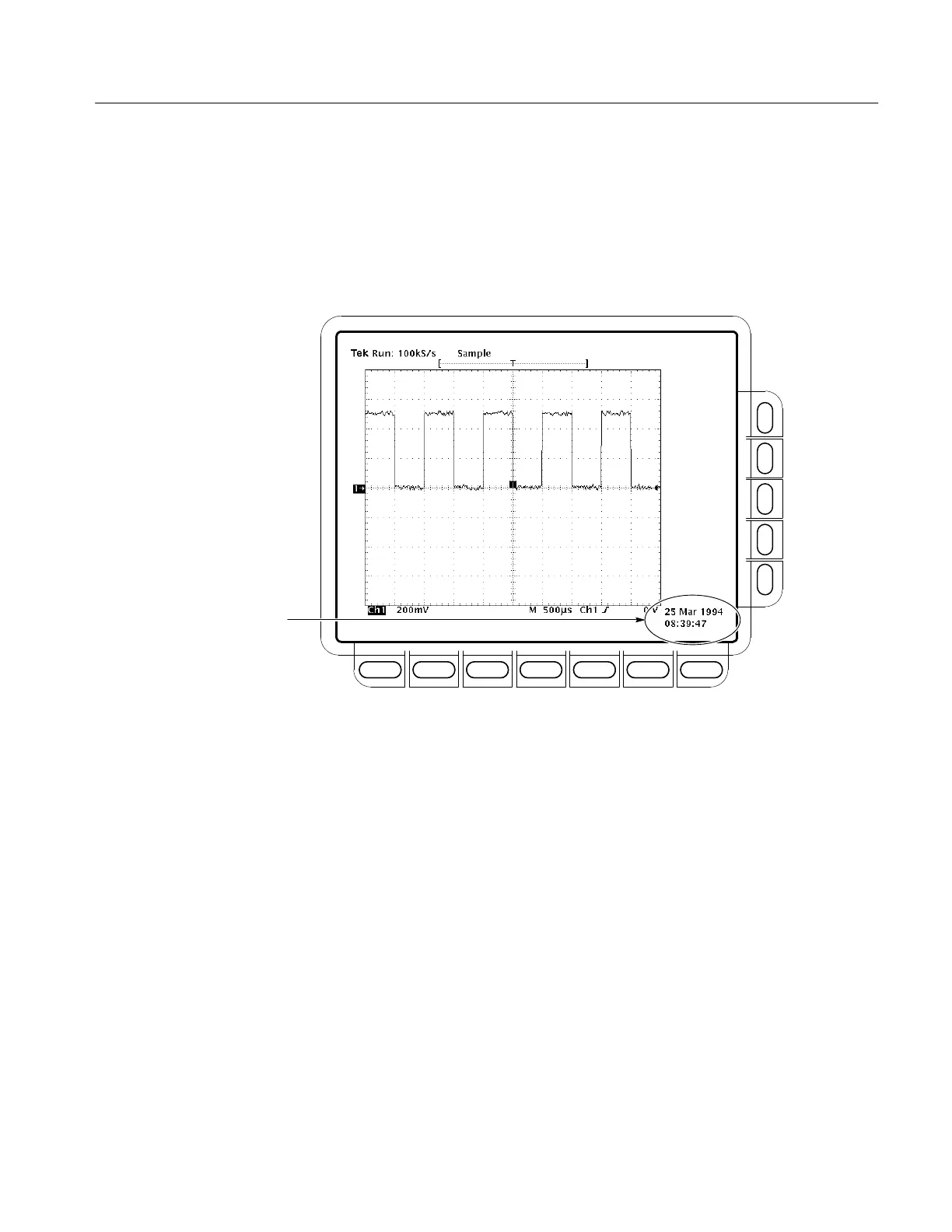

Date and Time Display
Figure 3–72: Date and Time Display
Set the Date and Time. You might need to set the date and time of the oscillo-
scope. To set those parameters, do the following steps:
1. Press SHIFT ➞ UTILITY ➞ Config (pop-up) ➞ Set Date &
Time (main) ➞ Year, Day Month, Hour, or Minute (side).
2. Use the general purpose knob or the keypad to set the parameter you have
chosen to the value desired. (The format when using the keypad is
day.month. For example, use 23.6 for the 23
rd
of June.)
3. Repeat steps 1 and 2 to set other parameters as desired.
4. Press OK Enter Date/Time (side) to put the new settings into effect. This
sets the seconds to zero.
