Acquiring and Displaying Waveforms
TDS 500B, TDS 600B, & TDS 700A User Manual
3–37
ScrTxt

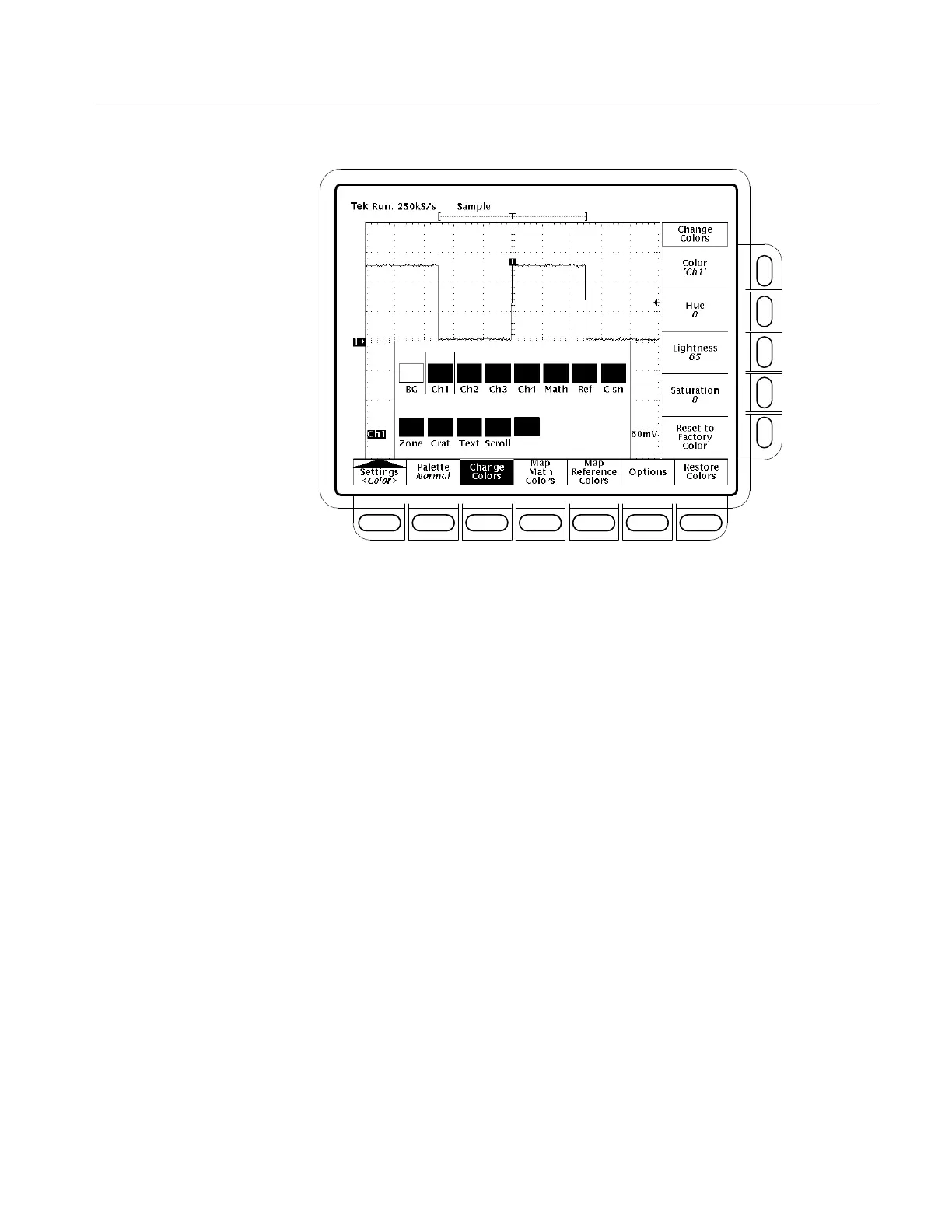

Figure 3–20: Display Menu — Palette Colors
To define math waveform colors:
1. Choose to define math waveform colors by selecting the main menu Map
Math item.
2. Select one of the three math waveforms by pressing Math in the side menu.
3. If you want to assign the selected math waveform to a specific color, press
Color and cycle through the choices.
4. If you want the selected math waveform to be the same color as the
waveform it is based on, select Color Matches Contents. If the math
waveform is based on dual waveforms, the math waveform will use the color
of the first constituent waveform.
To return to the factory defaults, select Reset to Factory Color.
To define reference waveform colors:
1. Press Map Reference in the main menu. (See Figure 3–21.)
2. Select one of the four reference waveforms by pressing Ref in the side menu.
3. To assign the selected reference waveform to a specific color, press
(repeatedly) Color and choose the value.
Set Math Waveform Color
Set Reference Waveform
Color
To Next Page
