Maintenance
6. Remove the four
screws that hold the Display Adapter board to the chassis
and save the screws for installation of the replacement board.
7. Loosen the Display Adapter board and disconnect the display cable at J201.
8. Remove the Display Adapte r board from the chassis.
Installation.
1. Connect the display cable to the Display Adapter board at J201. (See
Figure 6-3.)
2. Position the Display Adapter board on the instrument chassis and align the
board with the holes in the chassis.
3. Use the four screws that were removed to attach the Display Adapter board to
the chassis.
4. Connect the Display cable to J201 on the Main board as shown in the figure.
For the 4 channel models, make sure that the two ferrite EMI suppressors are
attached as shown. (See Figure 6-4.)

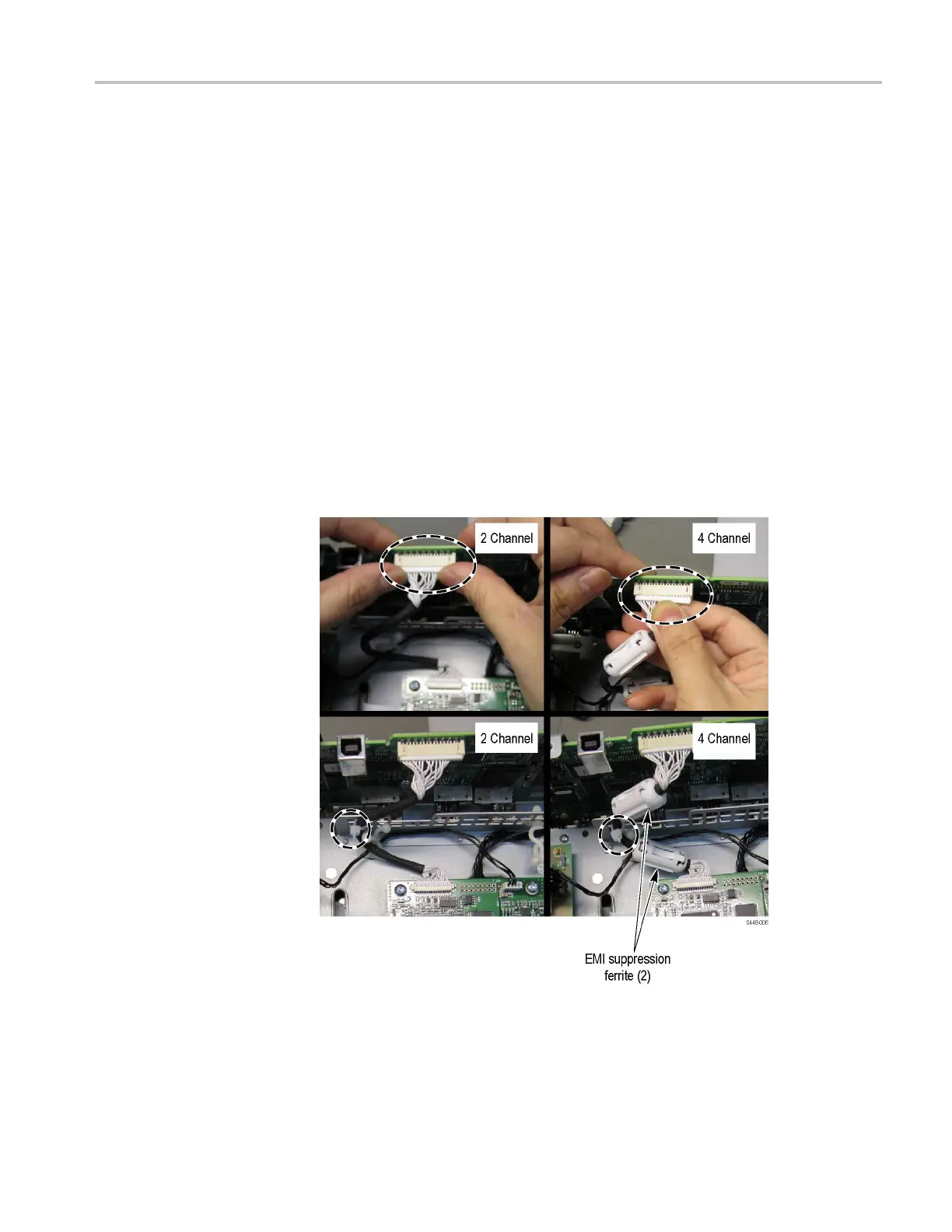

Figure 6-4: Connecting the Display cable
5. Attach the Display cable to the chassis with a cable tie as shown in the figure.
(See Figure 6-4.)
TDS2000C Series Oscilloscope Service Manual 6–15
