Replaceable Par ts
Parts Lists and Exploded Views
The following tables show the module-level exploded views of the TDS2000C
and TDS1000C-EDU oscilloscopes. Following each exploded view is the list of
components, indexed by the numbers in the figure.

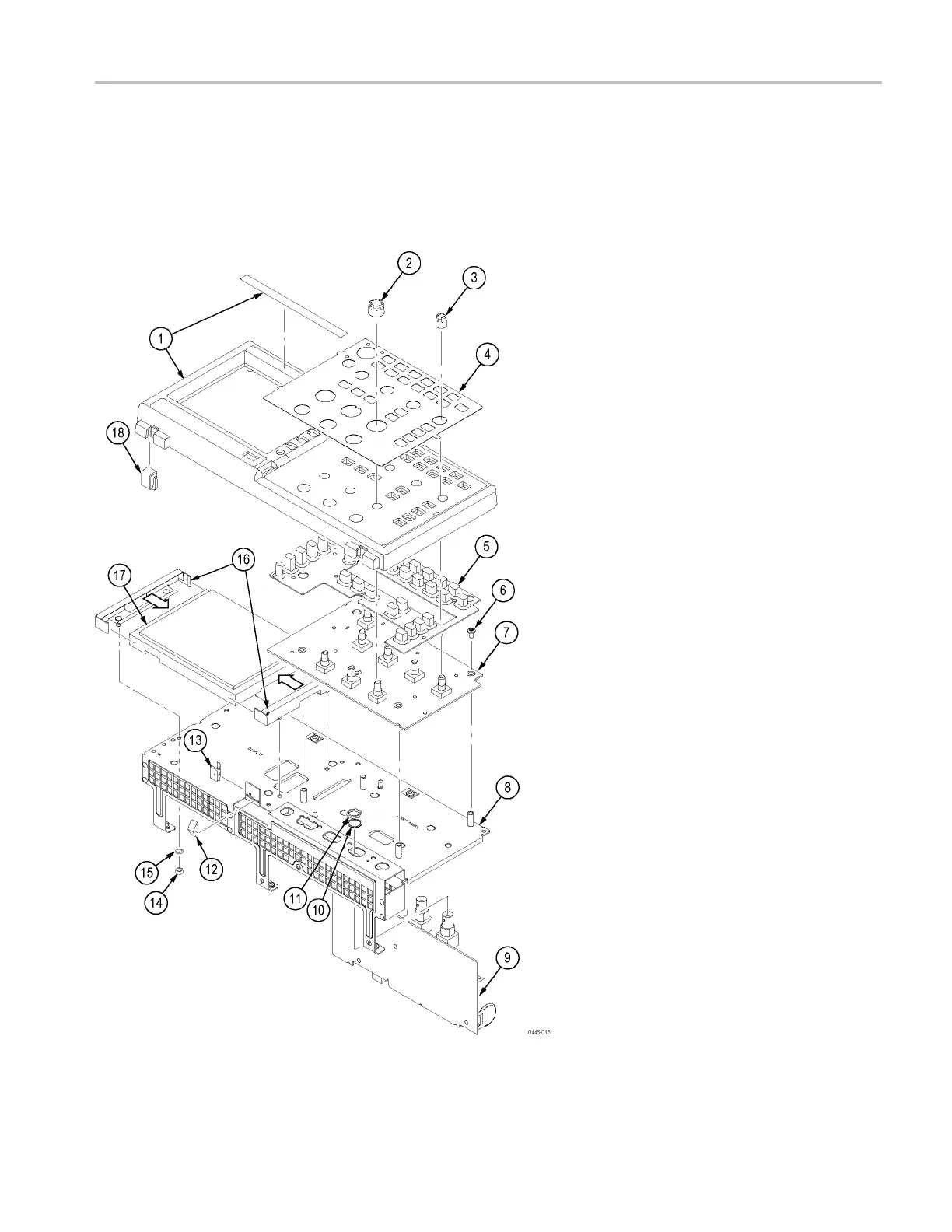

Figure 1 2: Exploded diagram, 2-channel models
TDS2000C and TDS1000C-EDU Series Oscilloscope Service Manual 89
