Tektronix TDS2024C

Theory of Operation
System Level B
lock Diagrams
Two high-level block diagrams are provided, one for 2-channel models and one
for 4-channel models. (See Figure 1 on page 22.) (See Figure 2 on page 23.)

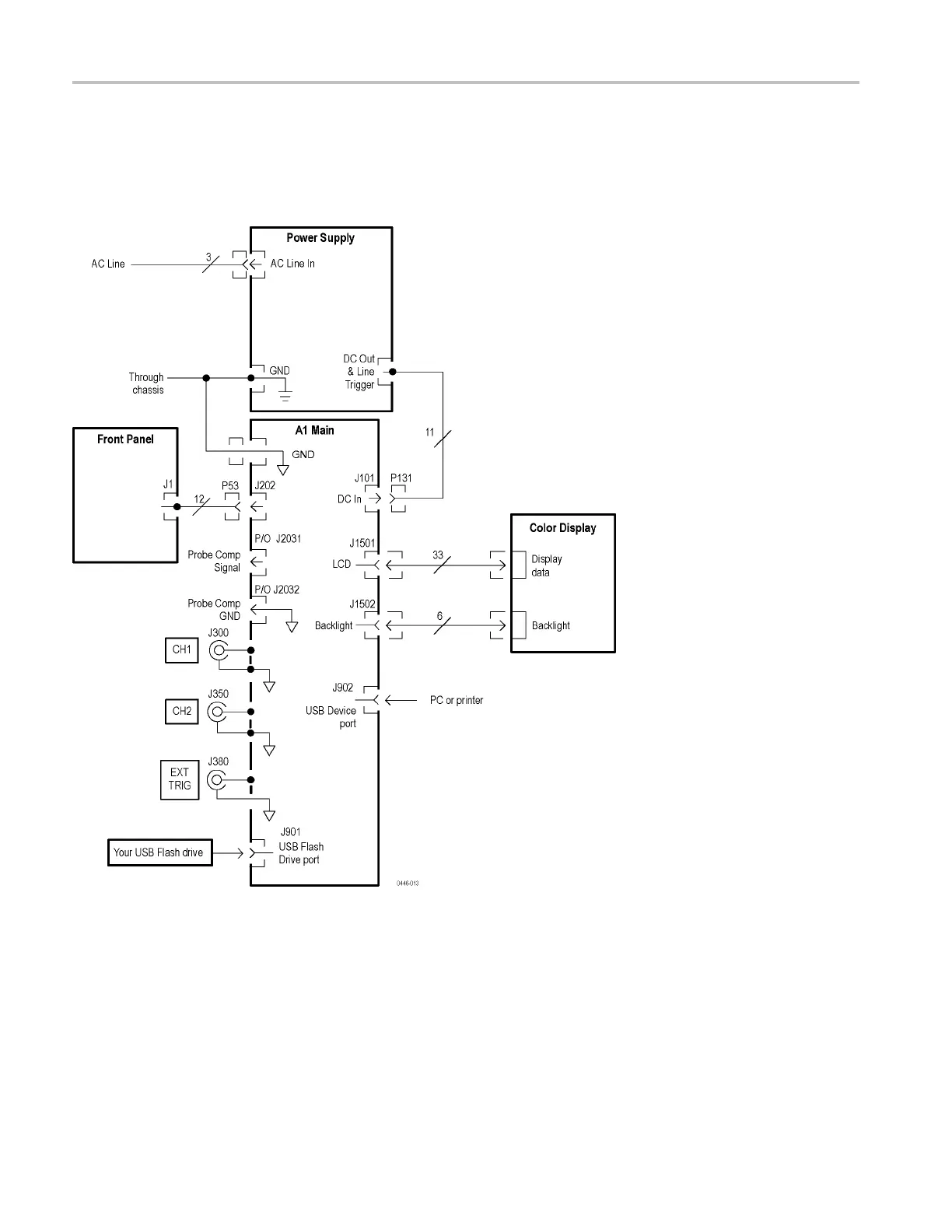

Figure 1 : Module-level block diagram (2-channel)
22 TDS2000C and TDS1000C-EDU Series Oscilloscope Service Manual
