Tektronix TDS5054B - Getting Acquainted with the Instrument; Instrument Panels and Connections

Getting Acquain
ted with Your Instrument
Getting Acqua
inted with Your Instrument

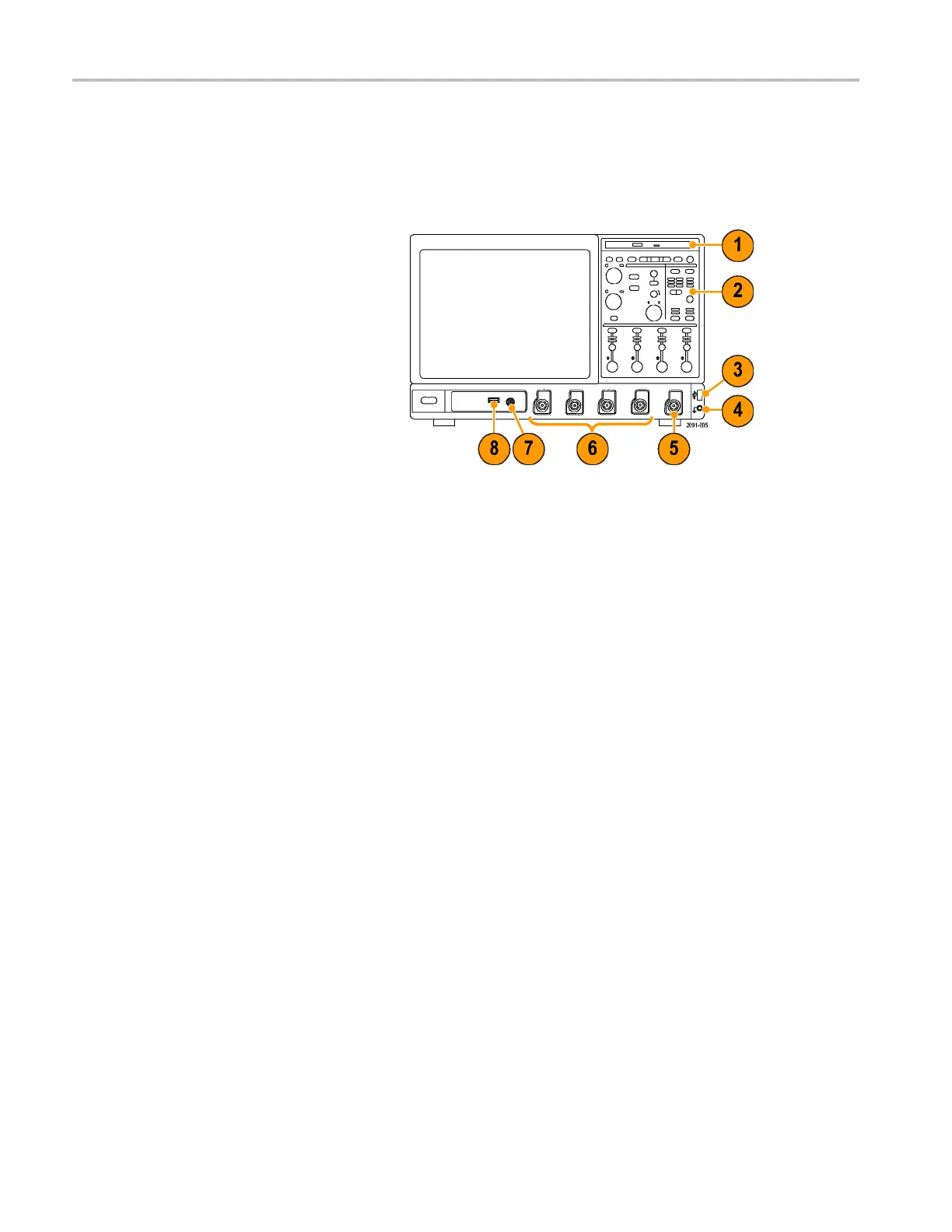

Front P anel
1. DVD/CD-RW drive
2. Front panel controls
3. USB port
4. Ground terminal
5. Auxiliary Trigger Input
6. Channel 1–4 inputs
7. Probe calibration output
8. Probe compensation output
