Getting Acquain
ted with Your Instrument
Signal Path Compensation
To optimize measurement accuracy, see the oscilloscope online help to perform the instrument signal path compensation
procedure. Use the procedure if the temperature has changed more than 5 °C since the last signal path compensation.
Perform the signal path compensation once a week. Failure to do so may result in the instrument not meeting warranted
performance levels at those volts/div settings.
Sync Pickoff Compensation – VM6000 and DPO7000 Series, Options SD/HD
Only

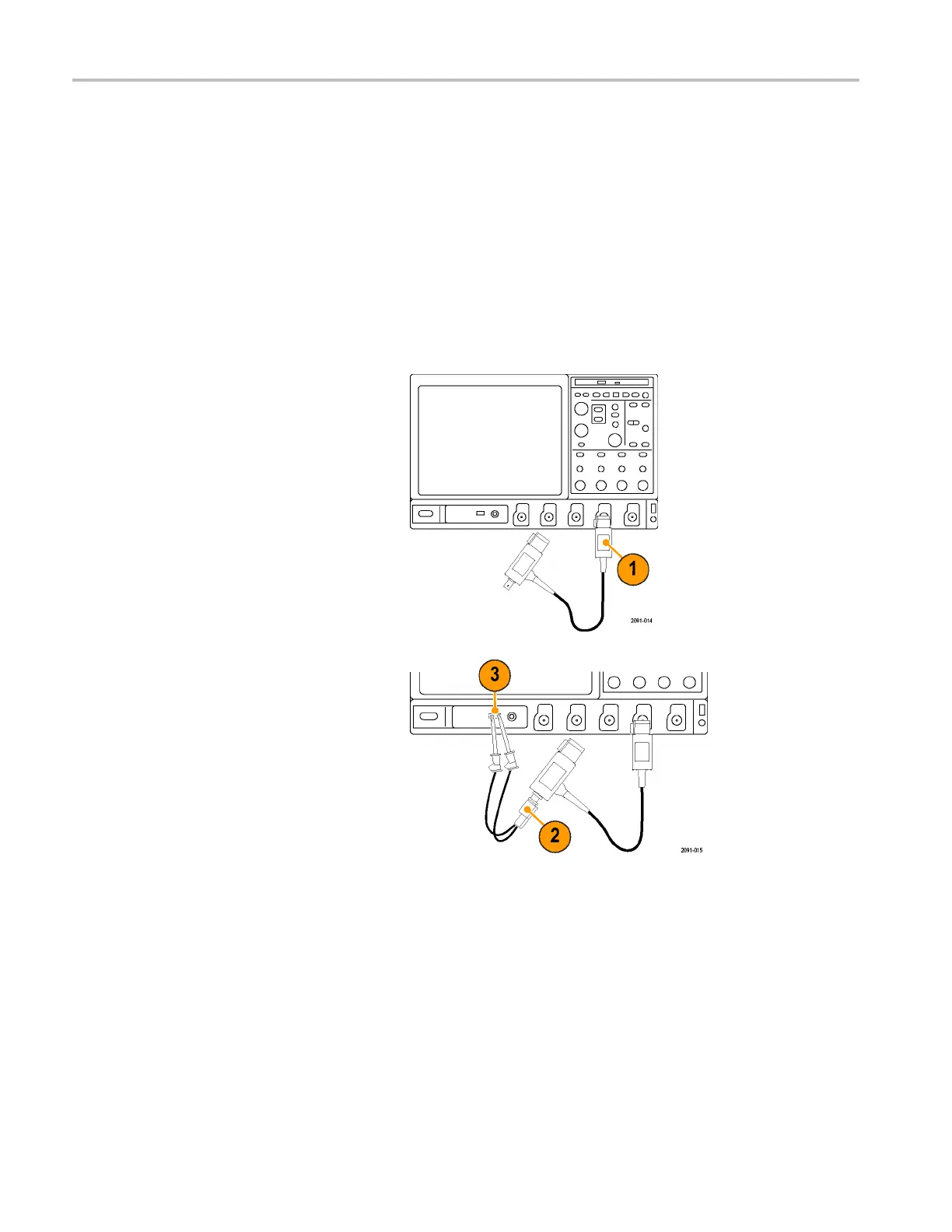

To properly compensate the Sync Pickoff:
1. Connect the Sync Pickoff small housing
(marked “Connect to Trigger Channel”)
to CH4. Leave the large housing
unconnected from the instrument.
2. Attach the Sync Pickoff BNC connector
to a BNC-to-minigrabbers connector
(Pomona Electronics model number
3789).
3. Connect the minigrabbers to the PROBE
COMP connector.
20 VM Series Video Measurement System Quick Start User Manual
