Kit Description
Clearance R eq
uirements
The rack in which the rack adapted instrument is mounted must provide the
following clearance requirements:
A minimum of 14.0 inches (355.6 mm) of vertical space.
A minimum width of 17.717 inches (450 mm) between the left- and right-front
rails in the rack.
A m inimum depth of 20 inches (508 mm).
CAUTION. Adhering to these clearance requirements provides the rack-mounted
instrument with enough clearance for air circulation and accommodation of the
power cor
d and mounting hardware. Failure to provide these clearances can
result in overheating and can cause instrument faults or failure.

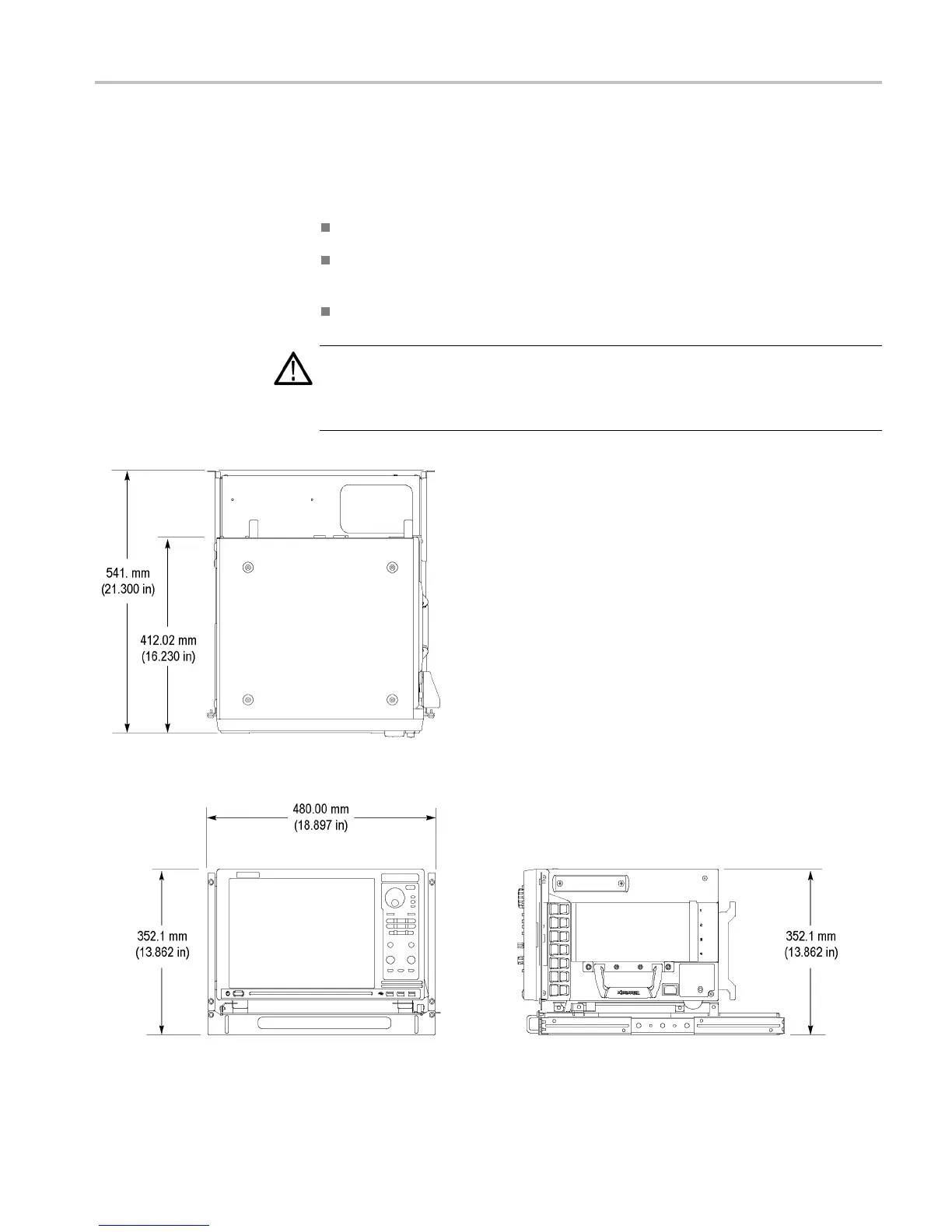

Figure 4: TLA7012 or TLA6200 series instrument with rack adapter installed
TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions 7
