Installation Instructions
3. Select the moun
ting method according to rack type:
To mount the brackets with their rear flanges outside the rear rails, use the
Mounting Meth
od A when doing Step 4. Add a bar nut to the installation
only if the rails have untapped holes.
To mount wit
h the rear flanges inside the rails, use the Mounting Method
B. This mounting method a ssumes untapped holes.

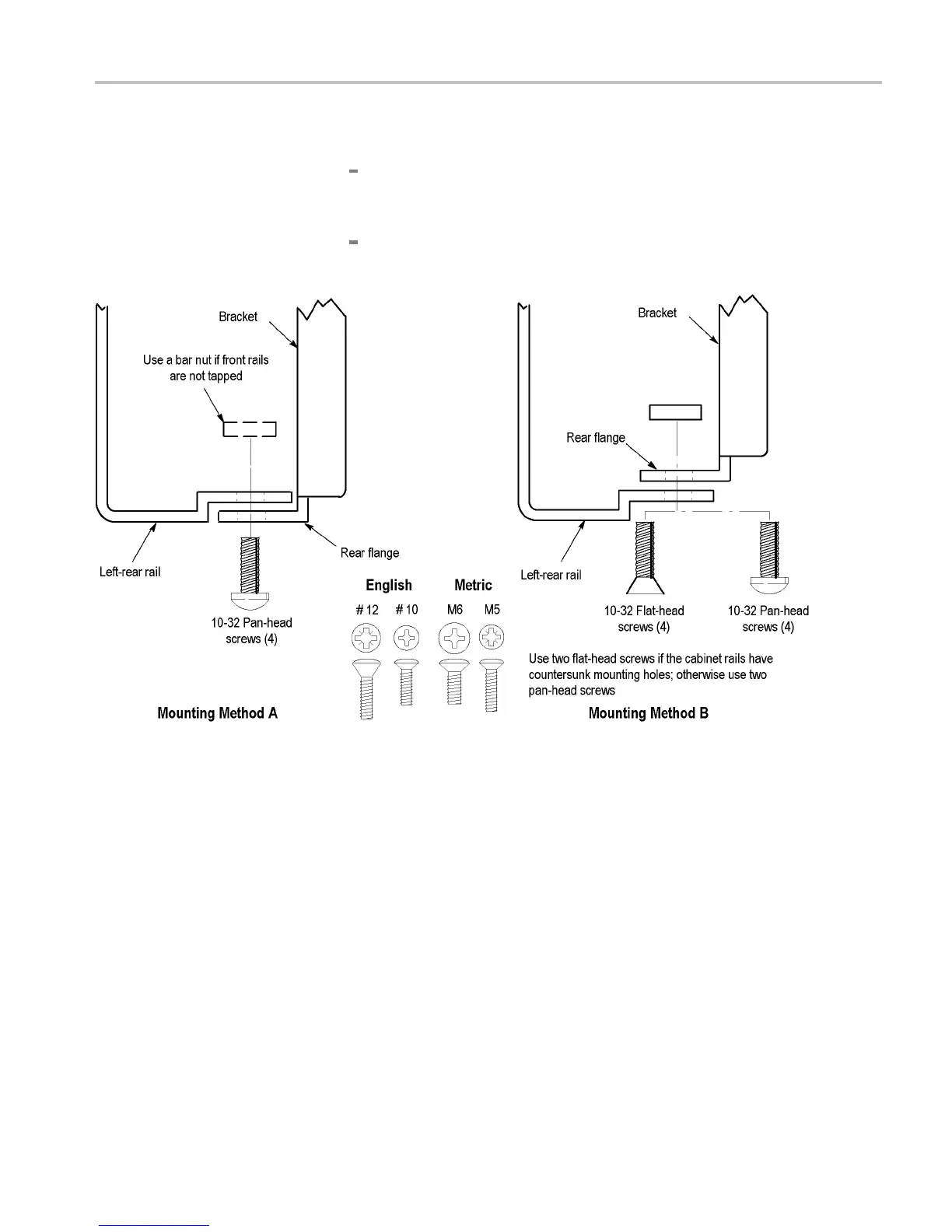

Figure 9: Installation of slide-out track assemblies in rack (top view)
4. Using the method and h ardware determined from step 3, a ttach the brackets
to the rear rails. The screws should be fully, but lightly, seated so mounting
canbeadjustedlater.
TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions 13
