Installation Instructions
Figure 1
3: Location of screws on the TLA6400 series instrument for bracket mounting

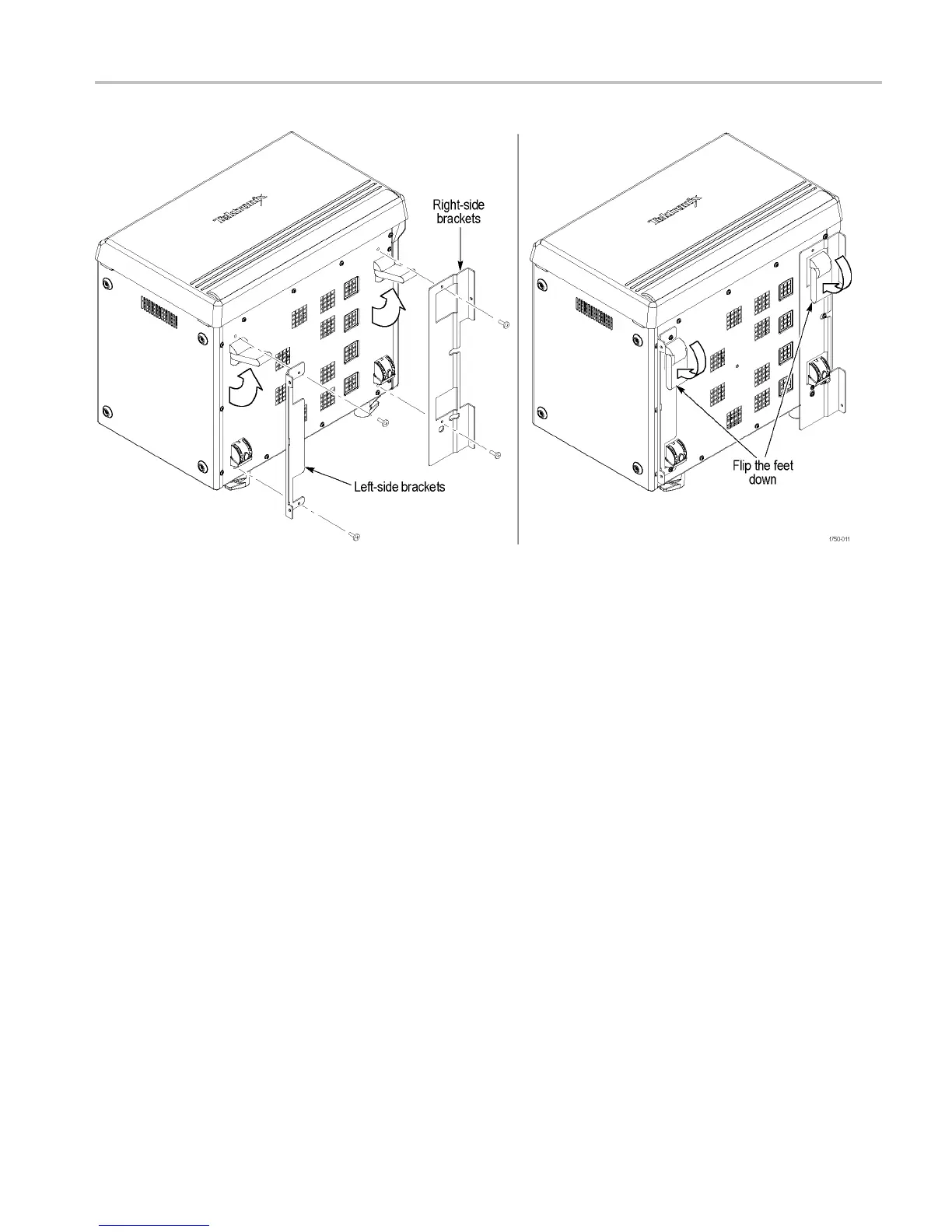

3. Attach
the right and left-side brackets to the bottom of the instrument using
the screws that you removed in the previous step.
4. Fold th
e front feet down flat against the bottom of the instrument.
TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions 17
