AFA4000/1 Airflow Monitor / p.56
Cable Specifications
Mains cable
3-core, 0.7mm², 2m long
Light Curtain cable
4-core, 0.5mm², 2m long
Keypad cable
RJ45, 3 m long
Sash Position Sensor cable
4-core, 0.2mm², 2.5m long
Personnel Sensor cable
5-core, 0.2mm², 3m long
Motor cable
2-core, 0.5mm², 2m long
6.2 Auto Sash keypad / alarm panel
Alternative Auto Sash Keypad / Alarm Panels can be supplied for US and EU markets.
Both types should be mounted on the front of the fume hood, ensuring there is
adequate clearance behind for the cables connecting the keypad to the Auto Sash
Control Unit.
6.2.1 Fitting the Auto Sash keypad / alarm panel
1. Fit the Auto Sash Keypad to the fume hood using either a single gang socket for UK
applications (Figure 29) or using a cut-out to the (Version 2) dimensions (Figure 30).

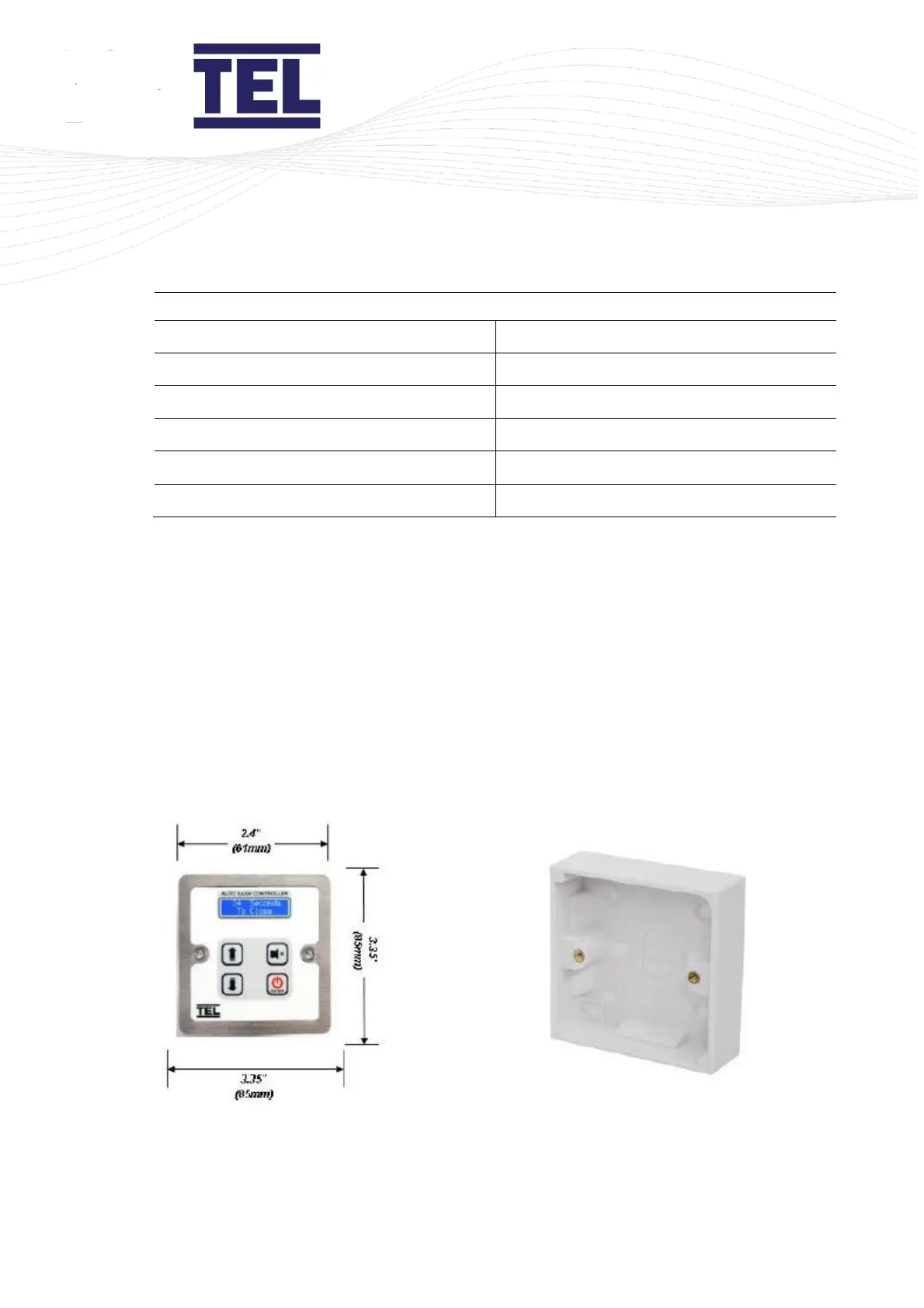

Figure 29: Version 1 - UK Single Gang Keypad Fits in Standard Single Gang Socket
