AFA4000/1 Airflow Monitor / p.71

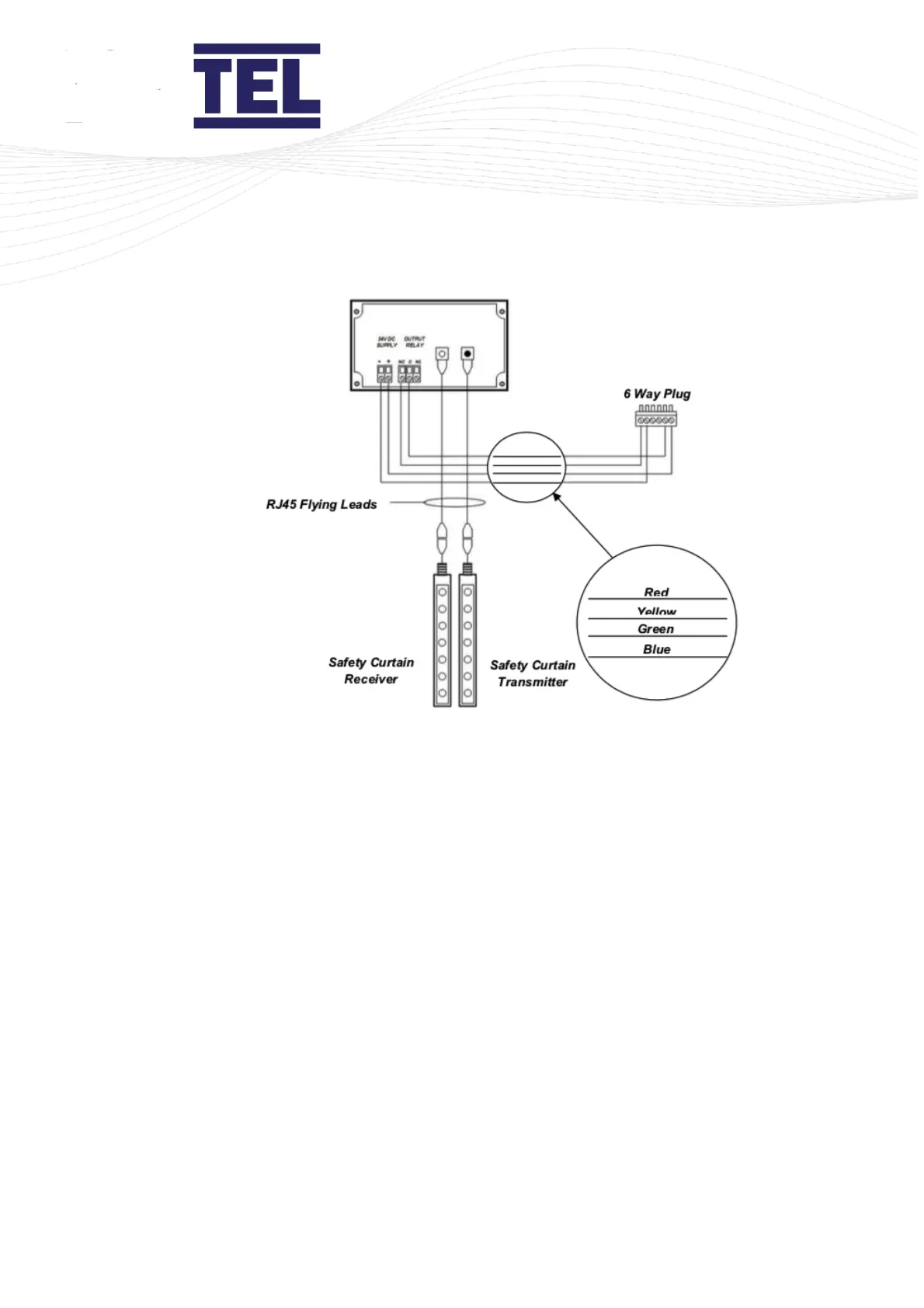

Figure 45: Light Curtain Vertical Range Safety Curtain Transmitter and Receiver Wiring
Schematic
7. Use the pre-assembled cables provided to connect the output from the Safety Curtain
Control Box to the Auto Sash Control Unit. See the wiring schematic in section 6.10
and Figure 31.
8. Fix the light curtain transmitter and receiver to the sidewall using their fixing holes
and re-attach the plastic covers.
