AFA4000/1 Airflow Monitor / p.80
A
Cable Entry
10 x 20 mm (5 mm diameter cable provided)
B
Fixing Hole
5 mm diameter maximum
C
Spare Hole
10 x 20 mm
D
Spare Hole
10 x 20 mm
E
Fixing Hole
5 mm diameter maximum
F
Spare Fixing Hole
5 mm diameter maximum

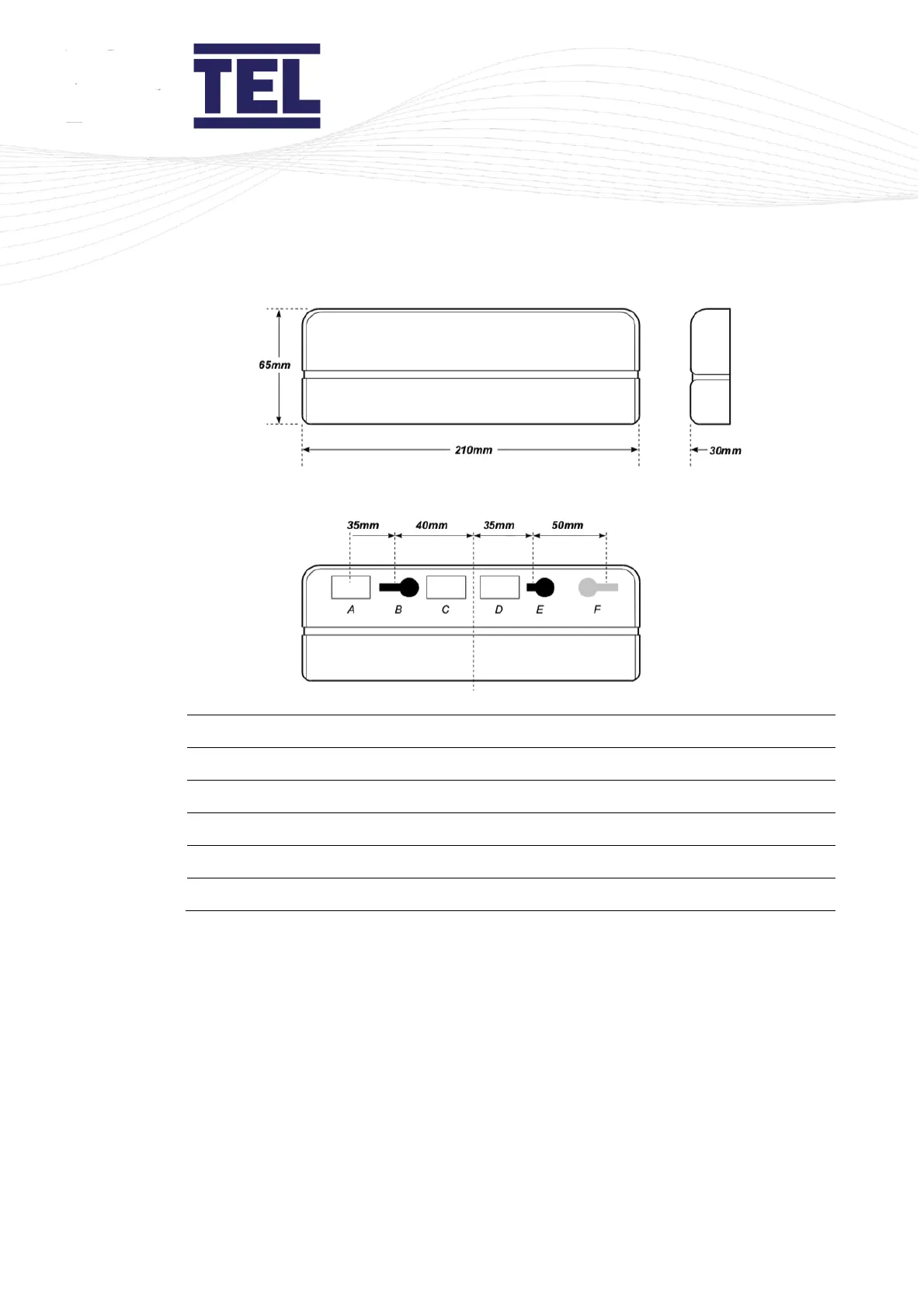

Figure 56: Personnel sensor mounting details
The Personnel Sensor should be positioned so that it points straight down, with the
horizontal axis of the sensor parallel to the horizontal axis of the fume hood (Figure 57).
Note: Do not mount the sensor higher than 250 0mm (98”) from the laboratory floor.
