TECHNICAL SPECIFICATIONS ZEN 60 ZEN 100
Motor power supply 24 Vdc 24 Vdc
Max. door surface area 9 m
2
12 m
2
Opening time 20 sec 20 sec
Max. absorbed current (at 230Vac) 0.5 A 0.5 A
Max. motor absorbed current (at 24V) 5 A 5 A
Operating temperature -10 +70°C -10 +70°C
Protection rating IP 30 IP 30
Built-in control unit Z124 Z124
Useful travel 2842 mm* 2842 mm*
Max. thrust 600 N 1000 N
Encoder Yes Yes
Guide length 3200 mm** 3200 mm**
Battery charger optional optional
Courtesy light 10W Halogen 10W Halogen
Work intermittence 80% 80%
* with optional ZENGB4: 3902 mm
** with optional ZENGB4: Max 4240 mm
PRELIMINARY CHECKS
Before proceeding with installation, the following checks/procedures should be performed.
1) Carefully read the instructions, observing the sequence of each assembly phase.
2) The device must not be operated in environments where there is any flammable gas/liquid.
3) The door structure (sectional/up-and-over) must be solid and suited to the installation.
4) The door must move smoothly throughout travel with no points or friction or vibrations.
5) The door must open and close exclusively under the traction/thrust force (with no upturning or rotation).
6) Remove the locking bolt on door closure.

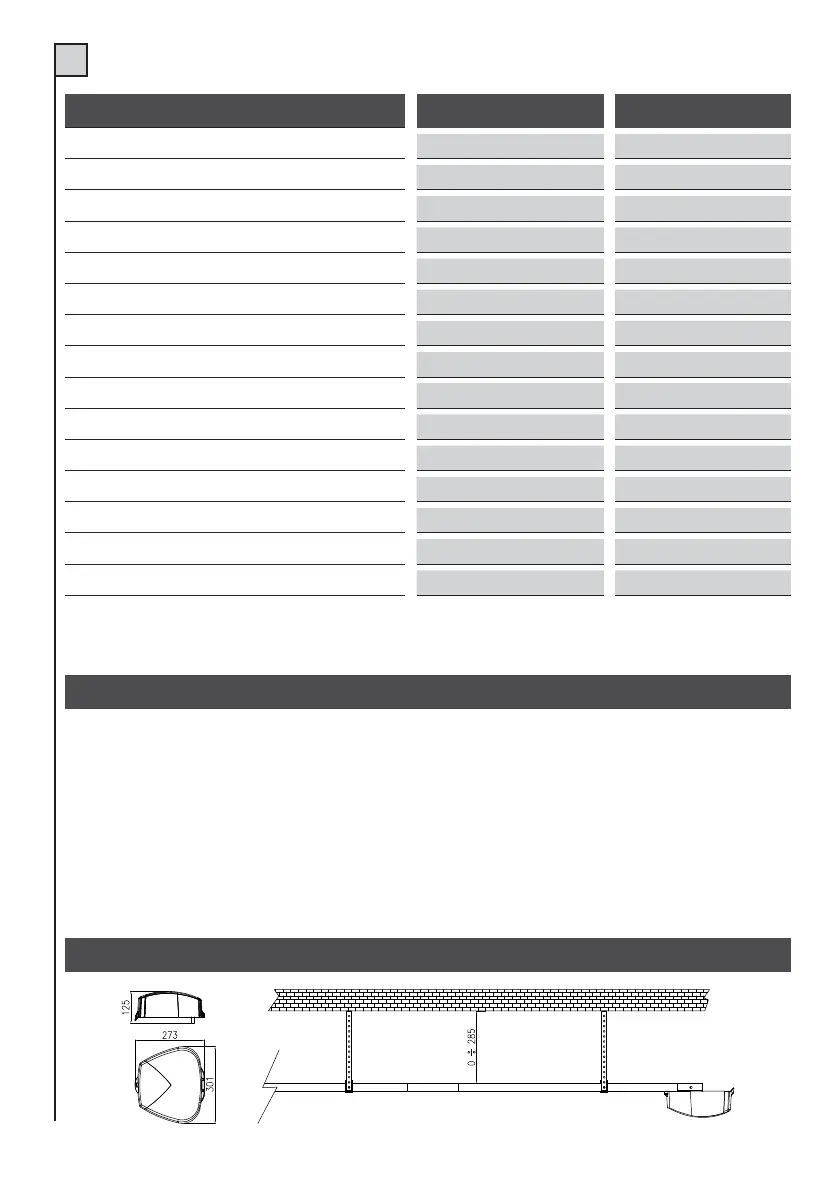

OVERALL DIMENSIONS
Fig. 17
