RED: Interface has not established, no data connection.
Blinking: problems with the interface firmware.
YELLOW: Connecting.
GREEN: Communication established.
Blinking: Traffic in the interface.
ISDN ISDN Interface:
OFF: Physical level unavailable.
RED: ERROR: Line errors (physical level) or call in progress.
YELLOW: Physical level established.
GREEN: Call established.
SLOT A Reserved: always off.
SLOT B The device has an MINI-PCI slot where a Wireless LAN daughter card can be in-
stalled.
OFF: Interface not available or not installed (not supported).
RED: Interface has not established, no data connection.
YELLOW: Connecting.
GREEN: Communication established.

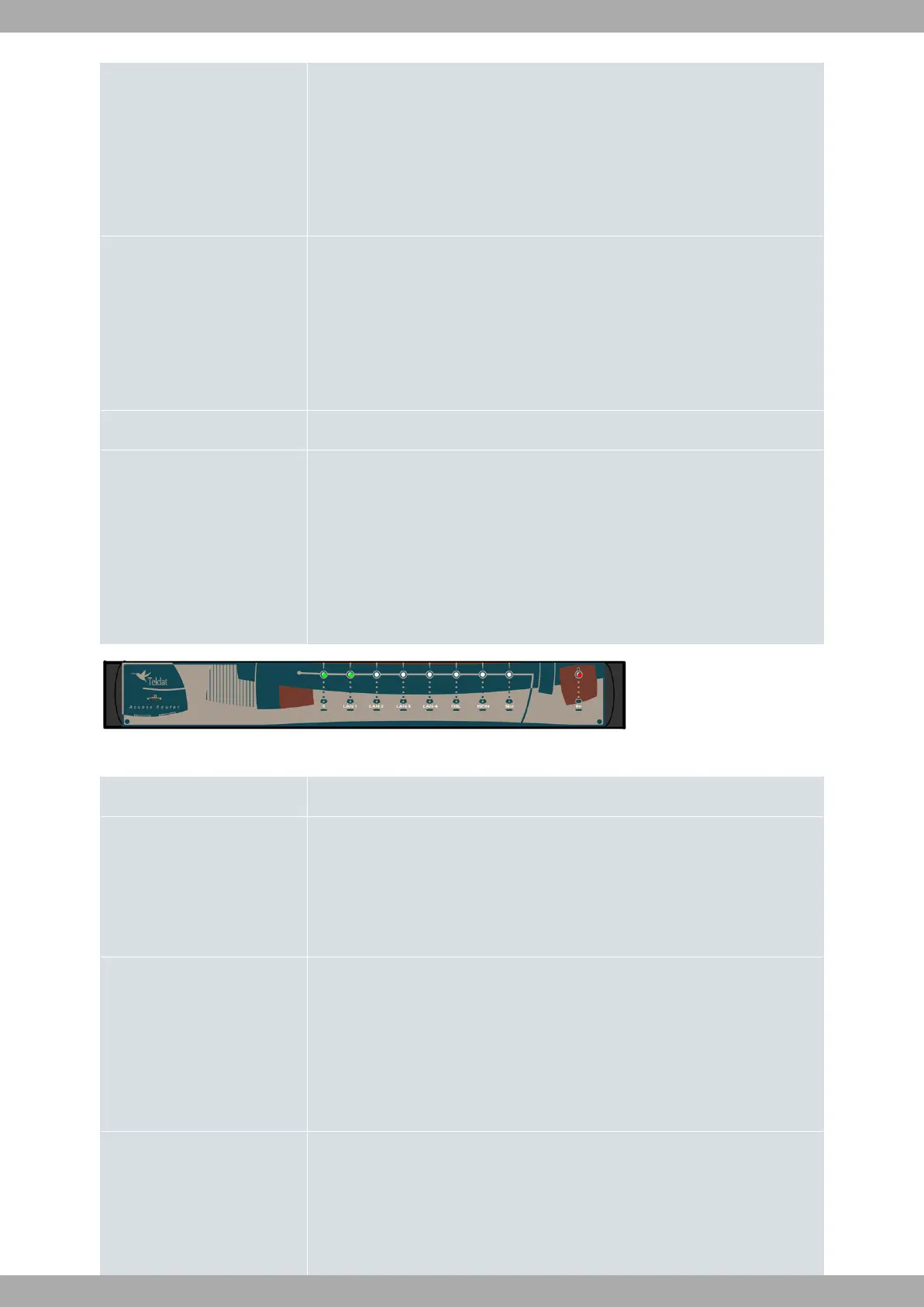

Fig. 43: Teldat C1+ front panel
ON Power-on indicator. It lights up when connected to the power. .
S Router operation:
OFF: System off.
GREEN: System initialized and operating.
YELLOW: System with established Telnet session.
LANx Switch LAN Ethernet interface:
OFF: Not available or device failure.
RED: Interface activated, there are no devices connected which are active.
GREEN: Interface activated, there is one connected device which is active.
Blinking: heartbeat.
DSL DSL Interface:
OFF: Interface not available (not supported).
RED: Interface has not established, no data connection.
Blinking: problems with the interface firmware.
