Teldat C+ Series User Manual

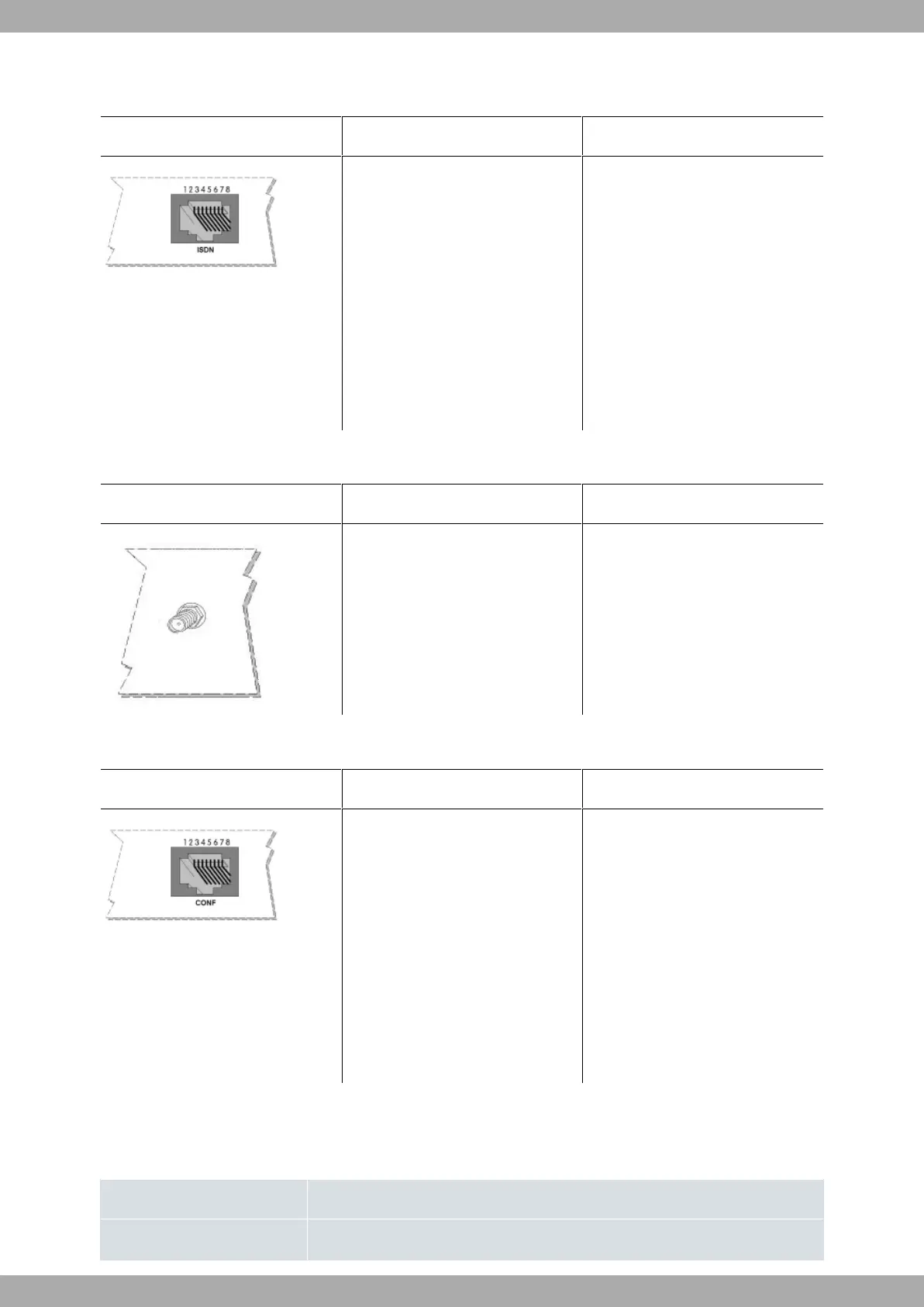

2.3.3 ISDN Connector
RJ45 ISDN RJ45 PINOUT ISDN
1
2
3
4
5
6
7
8
--
--
Tx+ (output)
Rx+(input)
Rx-(input)
Tx-(output)
--
--
2.3.4 ANT Connector
PINOUT ANT
Internal
External
RF in/out
GND
2.3.5 Configuration Connector
RJ45 CONFIGURATION RJ45 PINOUT CONF
1
2
3
4
5
6
7
8
--
RxD
GND
--
--
GND
TxD
--
2.4 Technical Specifications
Hardware Architecture
PROCESSORS Motorola PowerPC MPC8xx.
MEMORY 32/128 Mbytes in SDRAM.
Teldat S.A.
2 Appendix
Teldat C+ Router Family 17
