2.2 Software updating
The Teldat C+ can be updated to newer versions. Please contact your dealer for further details on new versions.
There are several ways to update a Teldat router. For further information, please see the software upgrading manual.
The software required to update Teldat routers is supplied in a format known as distribution. This consists of a
single file that contains all the files needed to update your device, as well as detailed information on the content.
2.3 Connectors

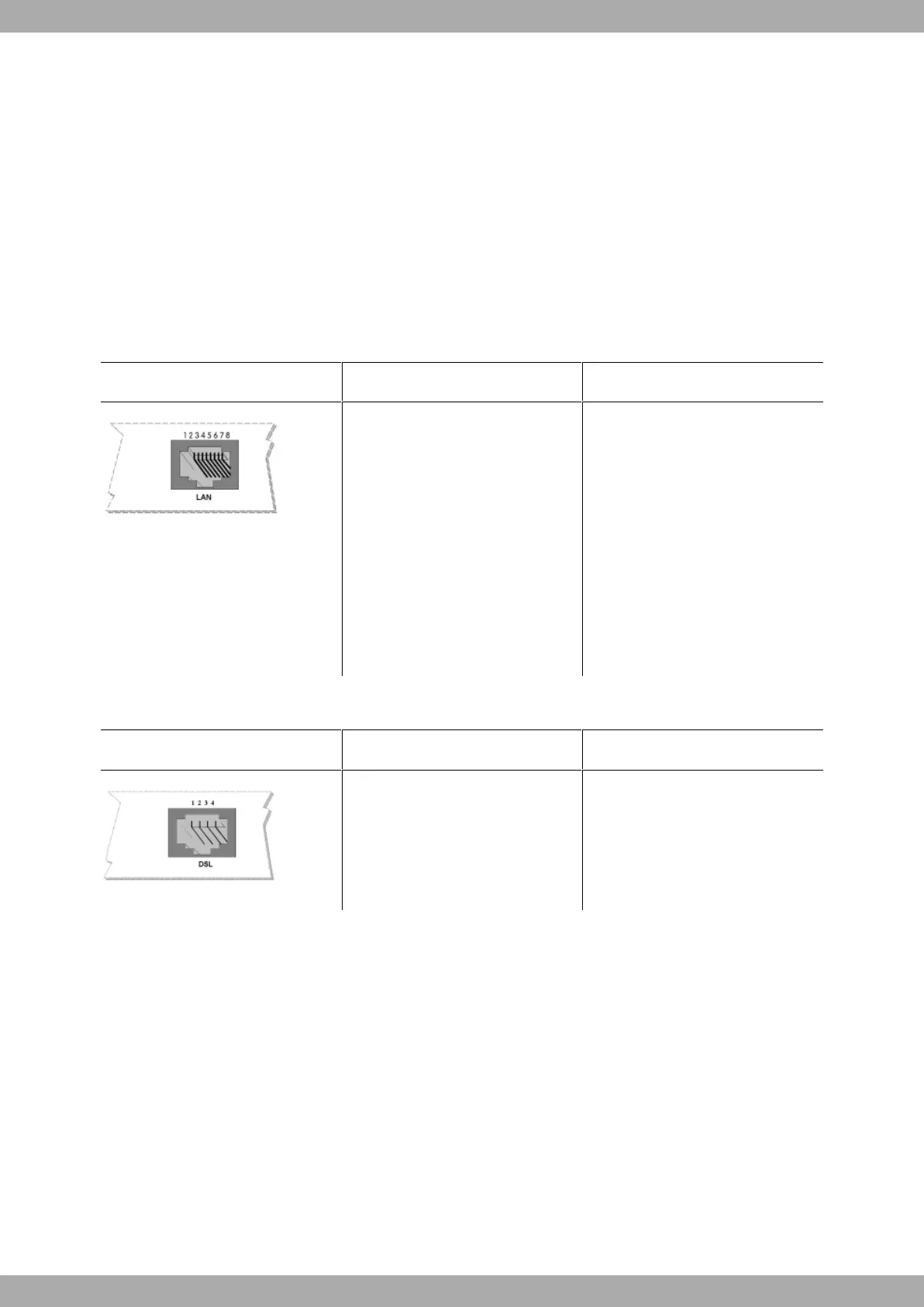

2.3.1 LAN Connector
,RJ45 LAN RJ45 PINOUT LAN
1
2
3
4
5
6
7
8
Tx+(input)
Tx-(input)
Rx+(output)
--
--
Rx-(output)
--
--
2.3.2 DSL Connector
RJ11 DSL RJ11 PINOUT DSL
1
2
3
4
Joined to 2
Line
Line
Joined to 3
