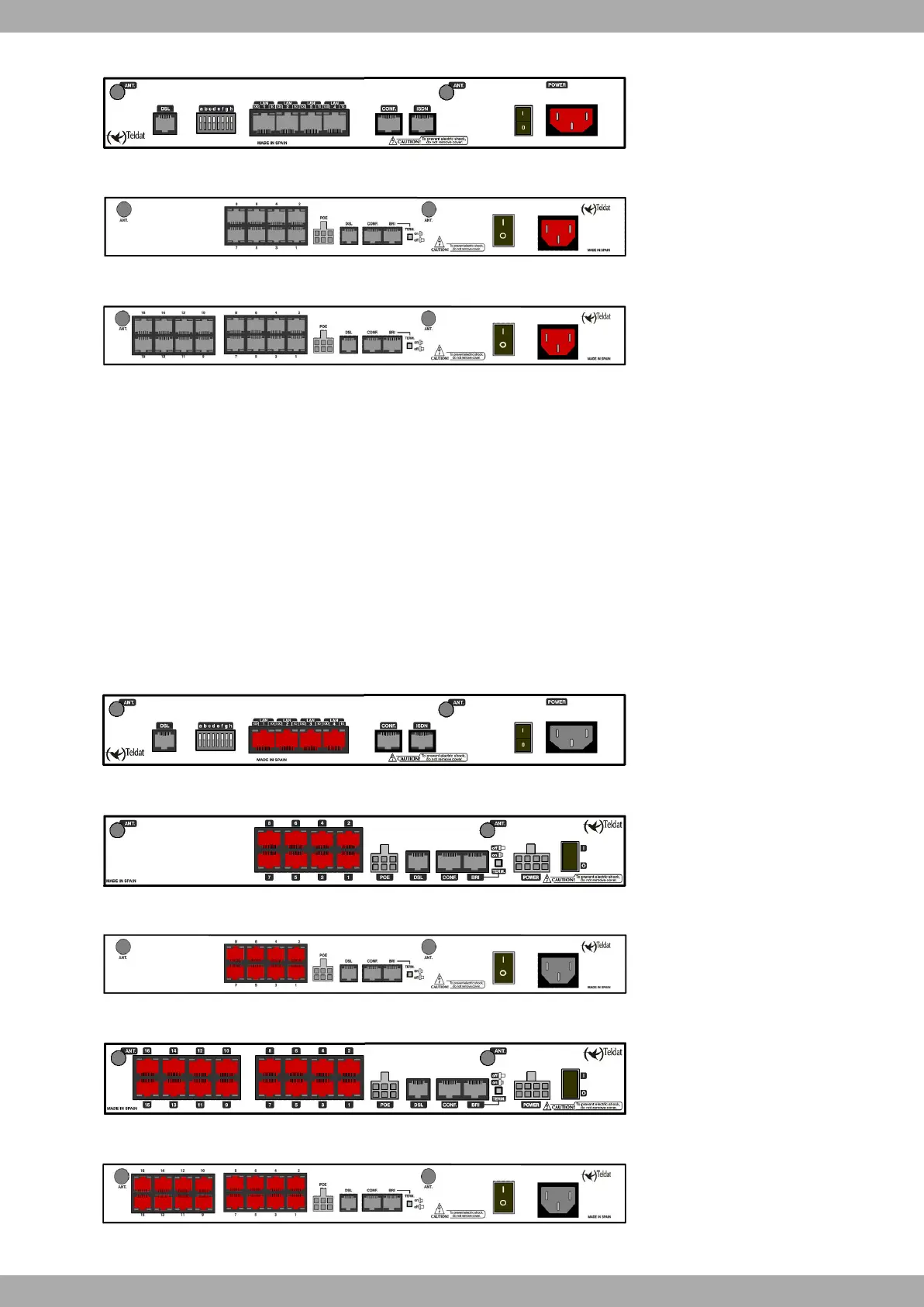

Fig. 6: Teldat C1+ power connection with an internal source
Fig. 7: Teldat C8+ power connection with an internal source
Fig. 8: Teldat C9+ power connection with an internal source
1.2.2 Data Connections
The Teldat C+ is equipped with the following connectors (although some of these may not be available depending on
the model):
SWITCH:
The Teldat C+ incorporates a 4 or 8 port Switch or 2 x 8 (i.e. total of 16 ports) 10/100BaseT with automatic MDI/
MDIX for local area network (LAN) connection: this has a 100 LED indicating connection at 100 Mbps, and a 10 LED
indicating connection at 10 Mbps.
Please pay close careful attention to the labelling to avoid confusing the switch with other port types.
The following are available, depending on the model:
Fig. 9: Teldat C1+ device: 4 port LAN switch
Fig. 10: Teldat C8+ (external source) device: 8 port LAN switch
Fig. 11: Teldat C8+ (internal source) device: 8 port LAN switch
Fig. 12: Teldat C9+ (external source) device: 8 port 2 switch
Fig. 13: Teldat C9+ (internal source) device: 8 port 2 switch
Teldat S.A.
1 Installing the Router
Teldat C+ Router Family 5
