In addition, the Teldat M2 router family is equipped with two status LEDs
LEDs
LED Status Description
PWR Monochrome green Green -> Device powered.
WLAN Tricolor Green -> Some client connected and registered in one of two ra-
dios. Blinking: Transferring data.
Amber -> Interface enabled.
Red -> Interface down.
Off -> Interface off or disabled.
3.1.2 Underside panel
The following elements can be found on the underside panel:

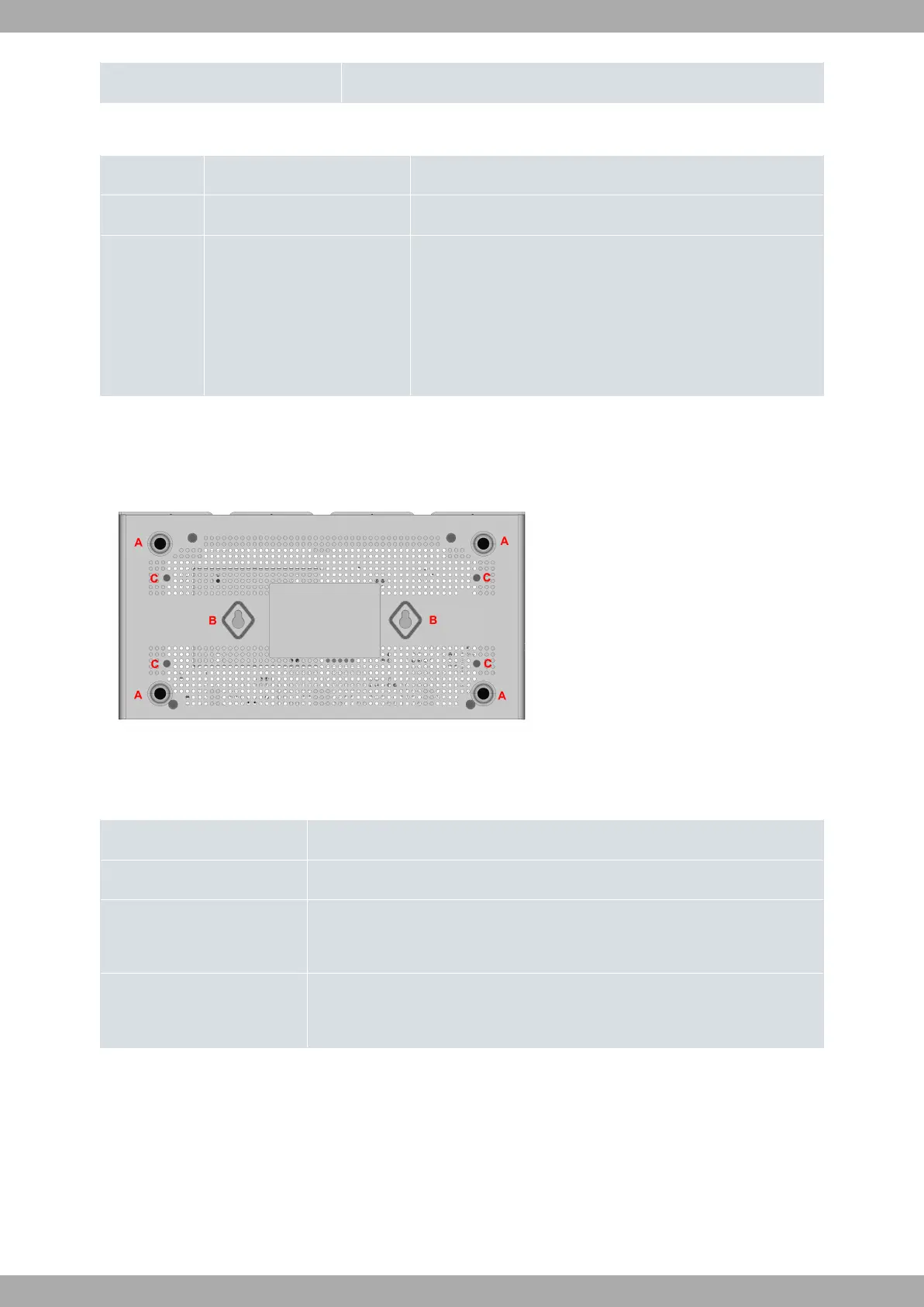

Fig. 6: Underside panel
The following table contains details on the relevant elements found on the underside panel.
Underside panel elements table
Item Description
A Rubber feet.
B Slots for wall mounting.
For further information, please see Wall mounting on page 8.
C Holes for rack mounting.
For further information, please see 19'' Rack installation on page 9.
3.2 Mounting an anti-theft security cable
Teldat M2router family has been equipped with a standard Kensington security slot to which a security cable can be
attached. The T-bar lock of the security cable allows the device to be attached to an anchor point, thus preventing
potential thefts.
The security slot is located on the front panel of the housing, as shown in the following figure:
Teldat S.A.
3 Components and Power Supply
Teldat M2/M2L 7
