3.1.4 Underside Panel
The following elements are located on the underside panel:

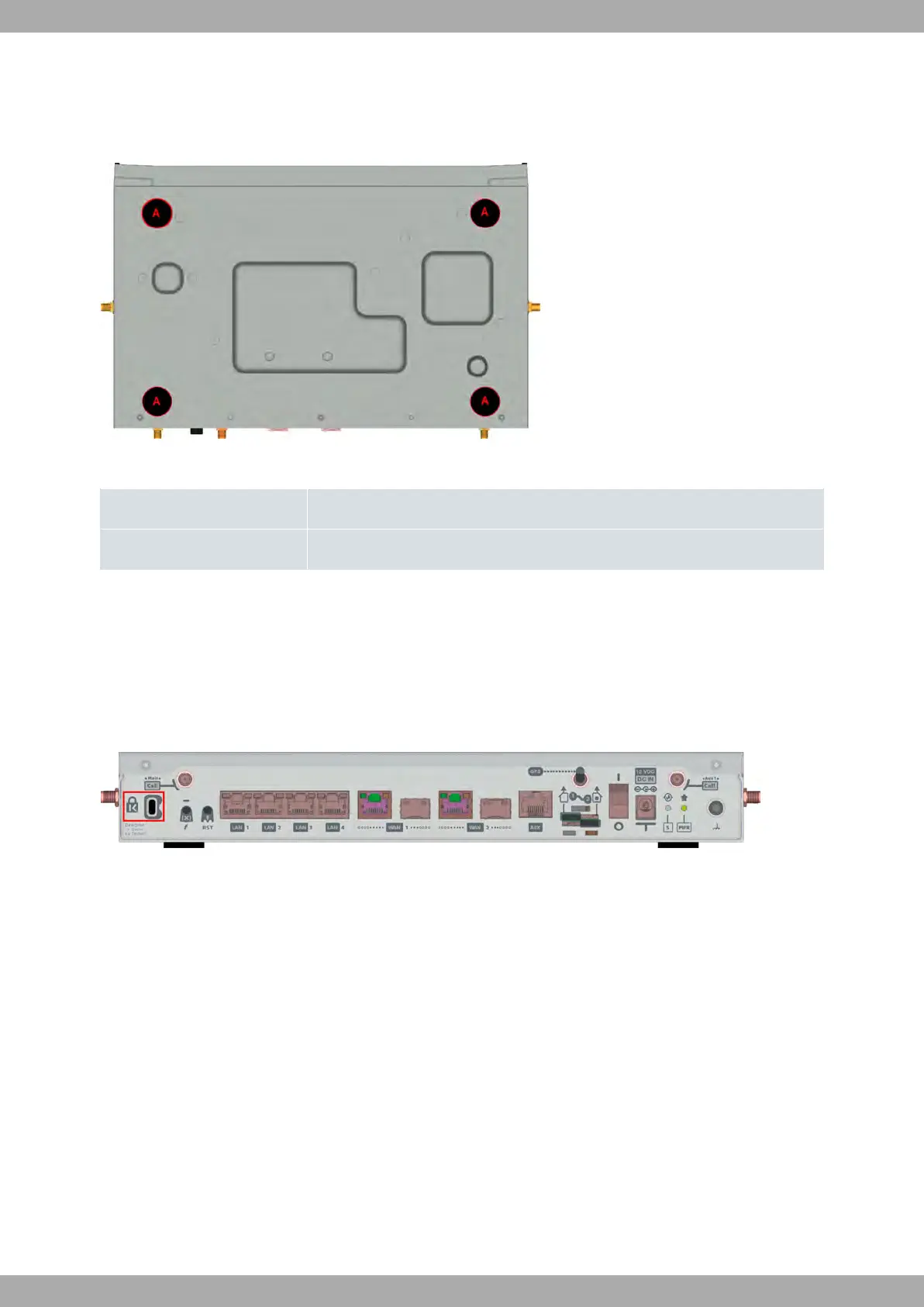

Fig. 20: Underside panel
UNDERSIDE PANEL ELEMENTS
Item Description
A Adhesive rubber feet (these are not required for rack mounting).
3.2 Mounting an Anti-Theft Security Cable
The M8-Smart devices have been equipped with a standard Kensington security slot to which a security cable can
be attached. The T-bar lock of the security cable allows the device to be attached to an anchor point, thus preventing
potential thefts.
The security slot is located on the rear panel of the housing, as shown in the following figure:
Fig. 21: Security Slot
3.3 Rack installation
The M8-Smart device can be installed in a 19” rack. The necessary strips and screws are not provided by default
and must be acquired separately.
Both strips are attached to the device by means of 5 screws, as shown in the following figure:
