TelePost LP-PAN - Page 5

5
Quantity
designation
Value
6
L1,2,3,5,6,7
1mH RF Choke (br-bk-rd) Fig. 5
1
Q1
MPS5179 transistor Fig. 10
2
R2,31
10 ohm 1/8W res. (br-blk-bk) Fig. 12
4
R9,17,18,34
1K 5% 1/8W res. (br-blk-rd) Fig. 12
4
R10,14,15,16
1.1K 1% 1/8W res. (br-br-bk-br-br) Fig. 12
1
R11
1.5K 5% res. (br-grn-rd) Fig. 12
3
R12,21,22
2K 5% 1/8W res. (rd-bk-rd) Fig. 12
4
R13,19,20,27
22 ohm 1% 1/8W res. (rd-rd-bk-gld-br) Fig. 12
1
R23
1K Pot Fig. 22
2
R24, 35
10K 5% 1/8W res. (br-bk-or) Fig. 12
1
R25
27K 5% 1/8W res. (rd-viol-or) Fig. 12 (1% may
be supplied as alternate)
1
R26
470 ohm 5% 1/8W res. (yel-viol-br) Fig. 12
1
R29
200 ohm Pot Fig. 23
1
SW11
4PDT Pushbutton Switch & Keycap Fig. 6
2
T1,2
Audio Output Xfmr, 600 ohm Fig. 25
1
U1
78L05 5V Regulator Fig. 10
1
Y1
32.836MHz Crystal Fig. 24 (K2: 19.68MHz,
Kenwood: 35.35MHz, TenTec: 36.000MHz,
10.7MHz: 14.31818MHz)
1
PCB Fig. 26
1
Enclosure Fig. 27
1
Power Cord Fig. 8
6
¼” Black Sheet metal screw Fig. 14
8
3/16" Black machine screw Fig. 15
4
1/4" standoff Fig. 13
4
Rubber feet Fig. 16
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 6

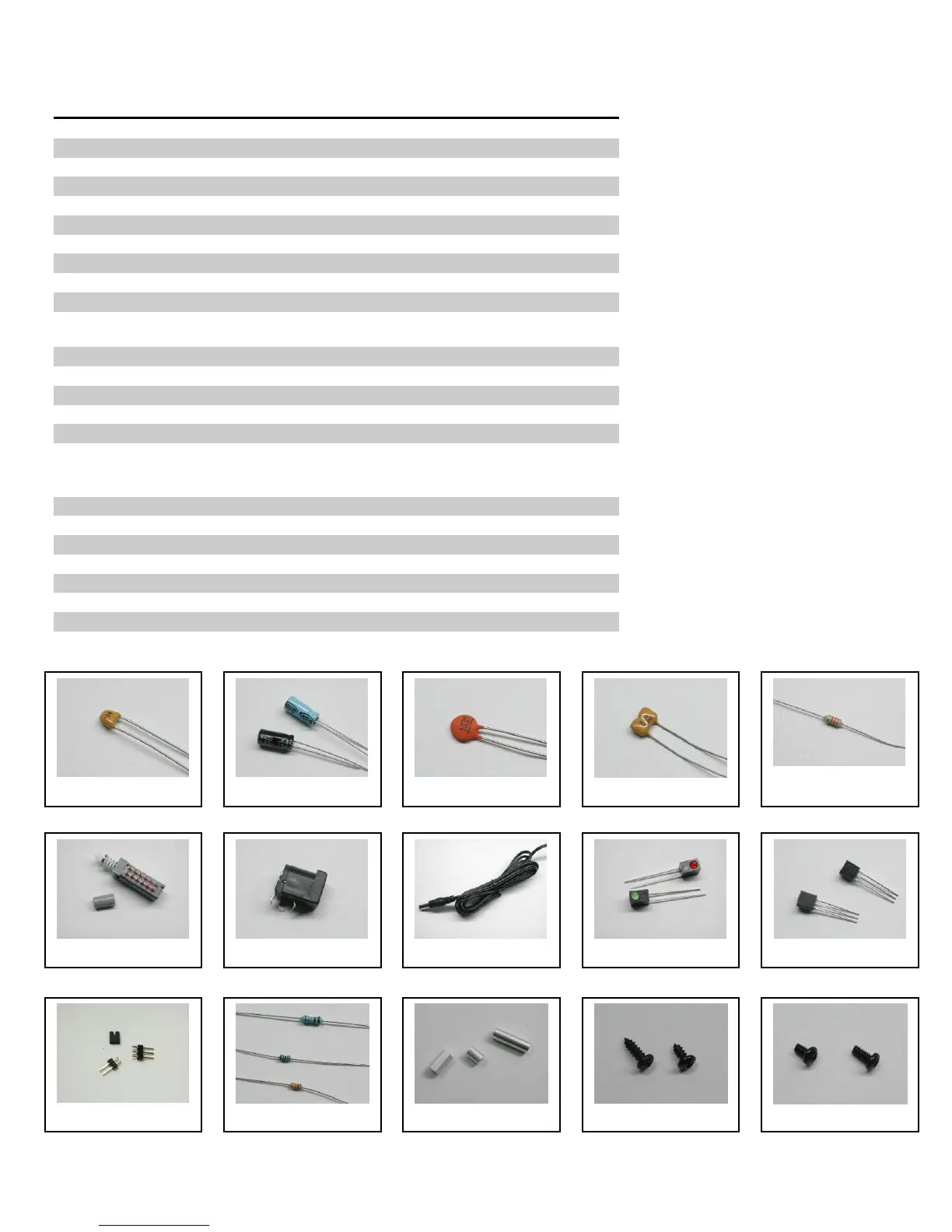

Parts List – Cont’d
