16

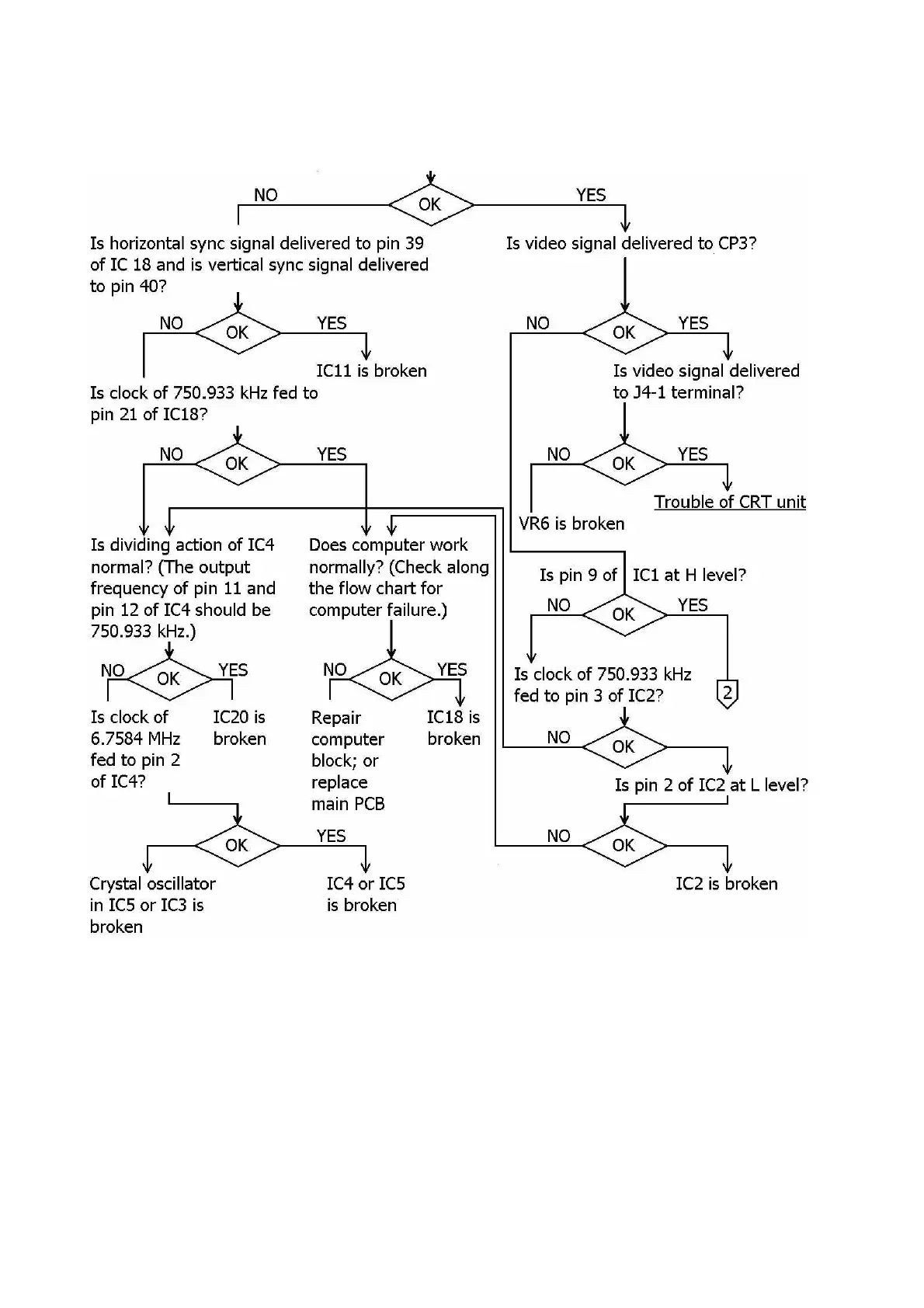

4.2 Trouble of the CRTC block
Is horizontal sync signal of about 63.92 µs period delivered to CP1, and is vertical sync signal of
about 16.875 ms period to CP2?
