30
7. Keyboard troubleshooting (KB-685E, KB-6850

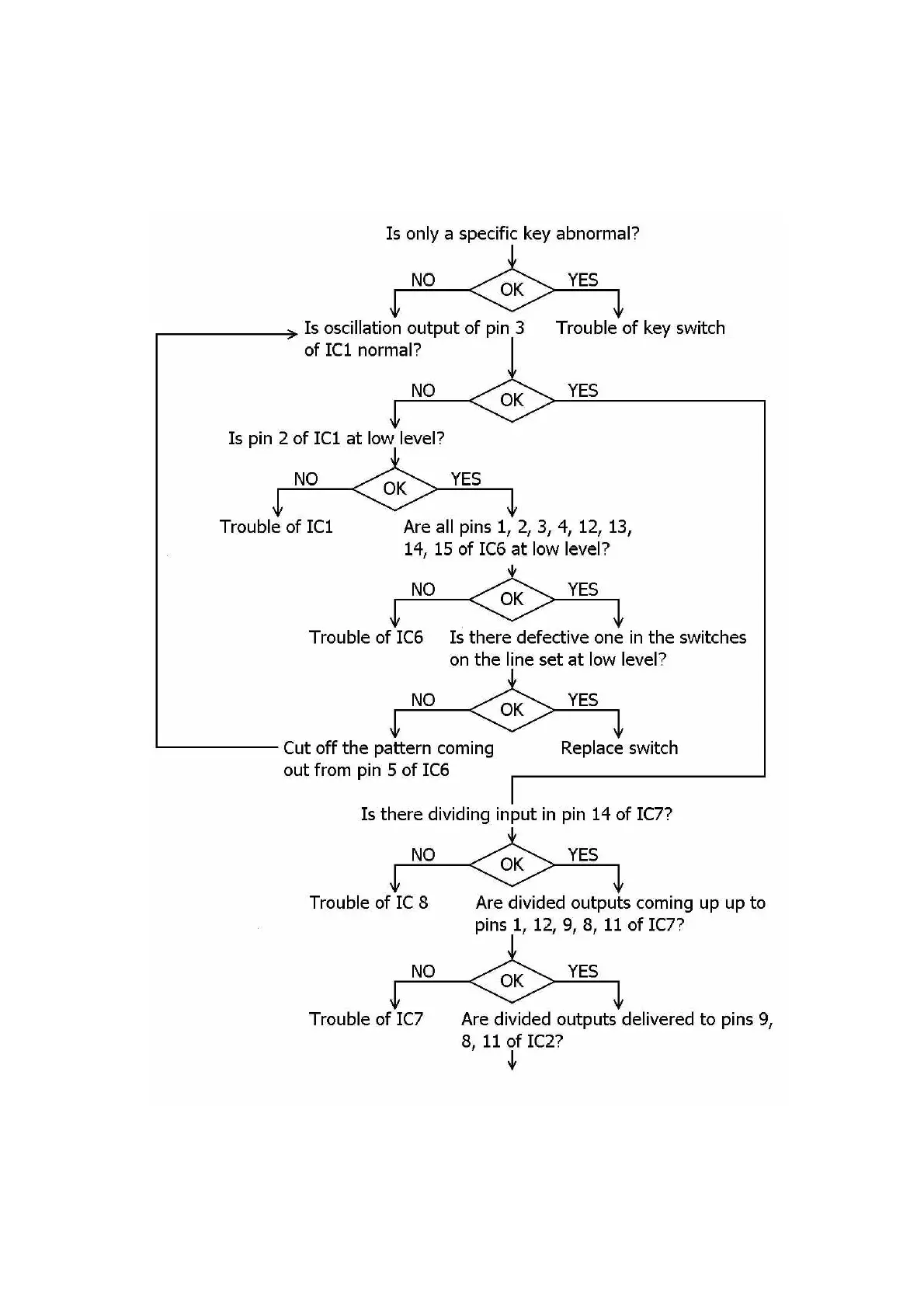

7.1 Troubleshooting flow chart of keyboard (PCB No. 820226-1)
Referring to the attached wiring diagram, check the keyboard in connected state.
