4.4. Broadband Amplifier
It features two signal input connectors, to
allow mixing of the channels provided by two
systems. Whenever is only used one input, please
remember to terminate the non used port with the
corresponding 75 ohm load, ref. 4061.
On its upper part the unit features one signal
output connector and a test output connector (-30
dB)
The unit is powered via a power BUS made by
independent power leads, which interconnect all
the units each other.













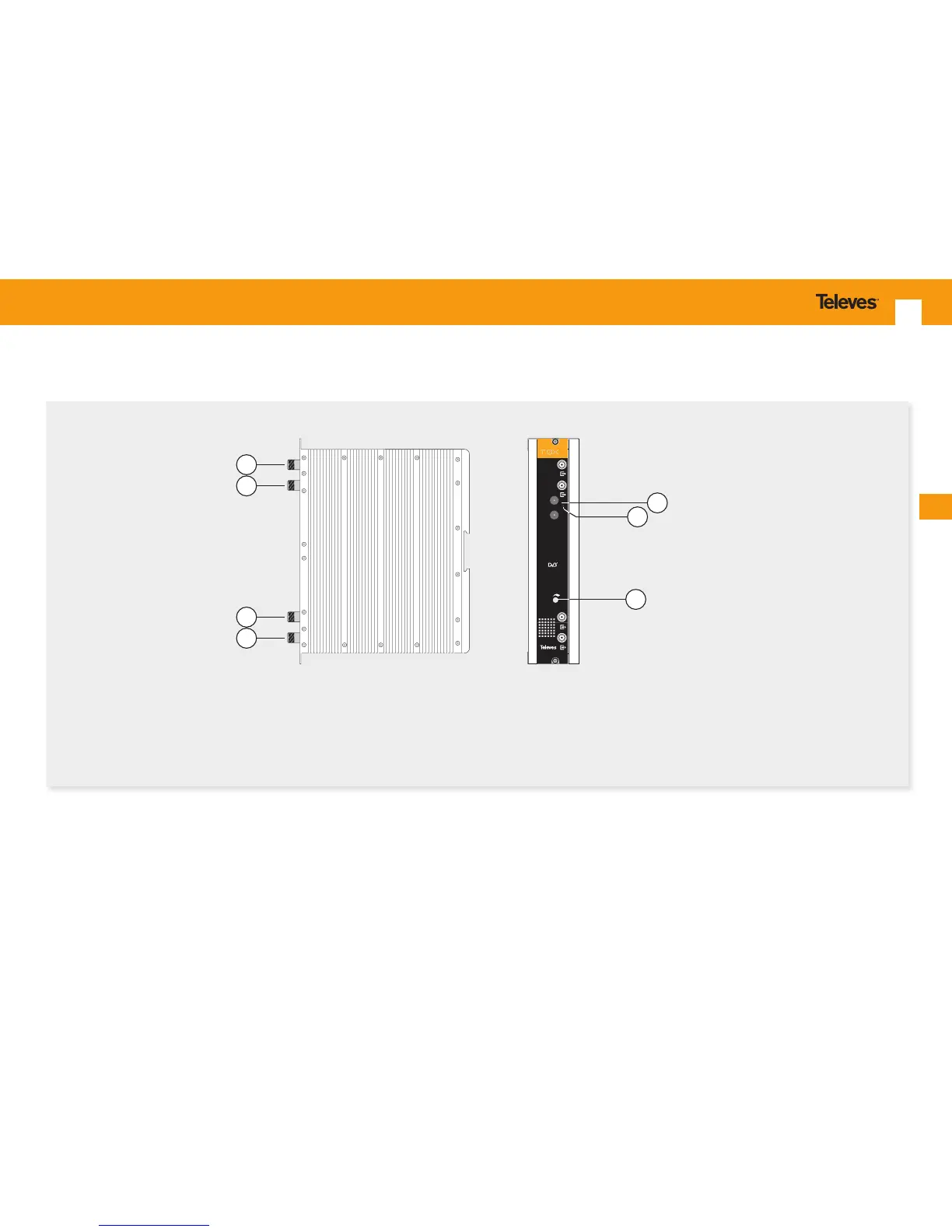

1. RF Output
2. Test Output
3. RF Input
4. RF Input
5. Powering connectors
6. Status LED
7. Attenuator
