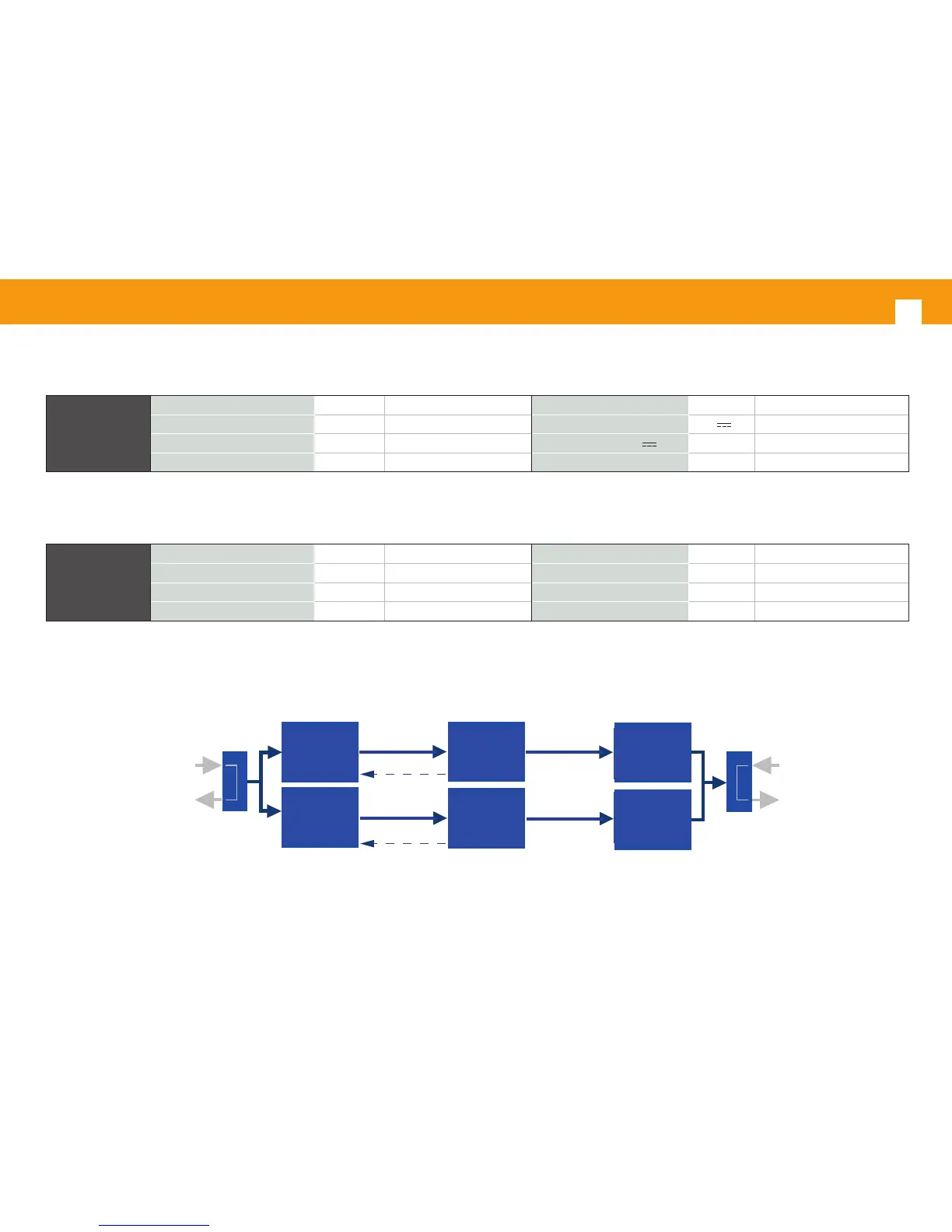

DUAL A/D CHANNEL PROCESSOR
6
1.2. Broaband Amplifier Technical Specifications
1.3. Power Supply Unit Technical Specifications
1.4. Block diagram
Amplier
ref. 5575
Frequency range MHz 46 ··· 862 Connector type female “F”
Gain dB 44 ± 2.5 Powering voltage V
24
Regulation margin dB 20 Consumption at 24 V
mA 450
Output level dBmV 45 Test output attenuation dB -30
PSU
ref. 563901
Mains voltage V~
102 - 138 / 50-60
Output voltage V= 24±1
(1)
Mains frequency Hz
50 / 60
Output current (max.) A= 5
(2)
Current consumption (max.) A~ 1.5 Output power W 120
Working temperature (max.) ºF 113 Protection level IP 20
(1) Provides protection voltage variation from 21 to 27 V= (2) Maximum current limited to 4A=
SALIDA
CAG
CAG
(46-862 MHz)
Etapa FI
Up
Converter
módulo (A)
ENTRADA
(46-862 MHz)
Up
Converter
Down
converter
Down
converter
Etapa FI
módulo (B)
módulo (A)
módulo (B)
módulo (A)
módulo (B)
OUTPUT
46-862 MHz
Down
Converter
Module (A)
Up
Converter
Module (A)
Down
Converter
Module (B)
Up
Converter
Module (B)
IF stage
Module (B)
IF stage
Module (A)
INPUT
46-862 MHz
AGC
AGC
