7. Example of application
Distribution of 20 channels

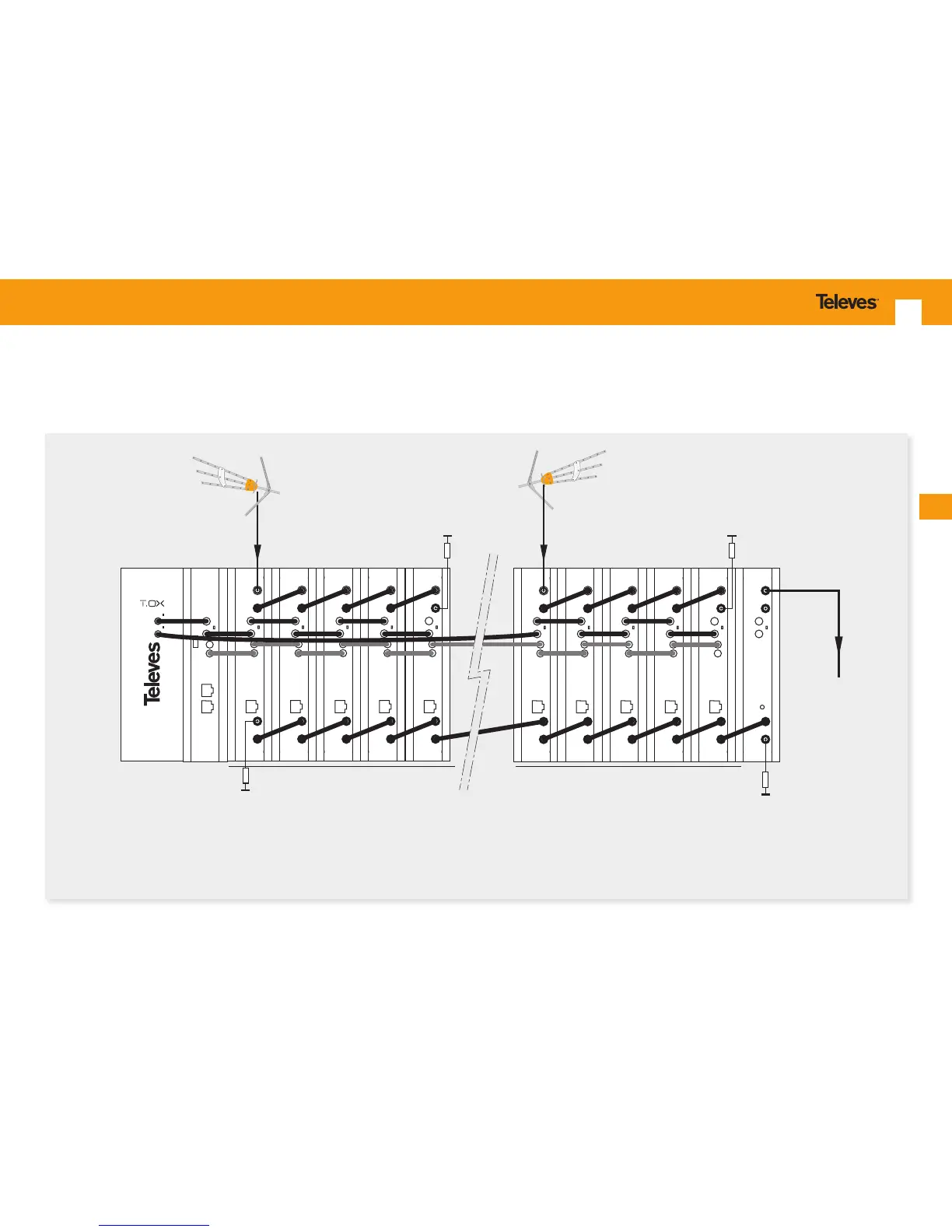

This gure depicts a headend congured for distributing 10x2 channels processed.
It is necessary to take into account the constraint of 4 A per each one of the outputs of the PSU.
To distribution
563901
555902
5575
75 ohm
4061
75 ohm
4061
MATV
MATV
5 x 564980 5 x 564980
