8.1. Installation of the rack with
ventilation facilities

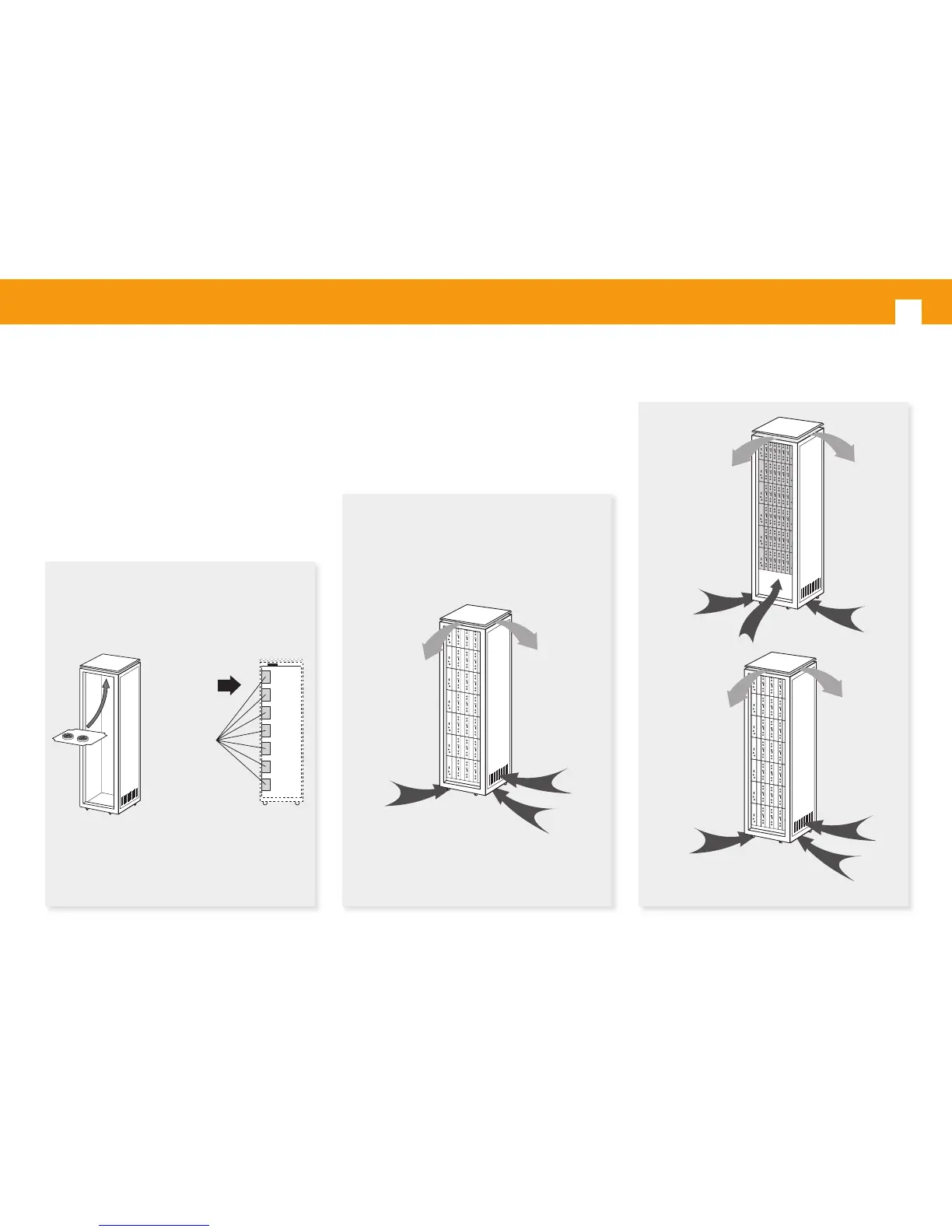

To aid in cooling for proper operation, especially in
warm locations (>113ºF ambient), installation of 2
25W or greater fans is recommended at the top of
the rack. See g 1 and 2.
Be sure to leave approximately 3-5 cm of ventila-
tion slots at the top for proper air ow. See g 2
and 3.
8. 19” Rackmount standards (max. 56 units - 7 subracks with 5U height - 8’7”)
Front
Subrack
g. 1 g. 2
g. 3
