A/V Transmitter & Receiver

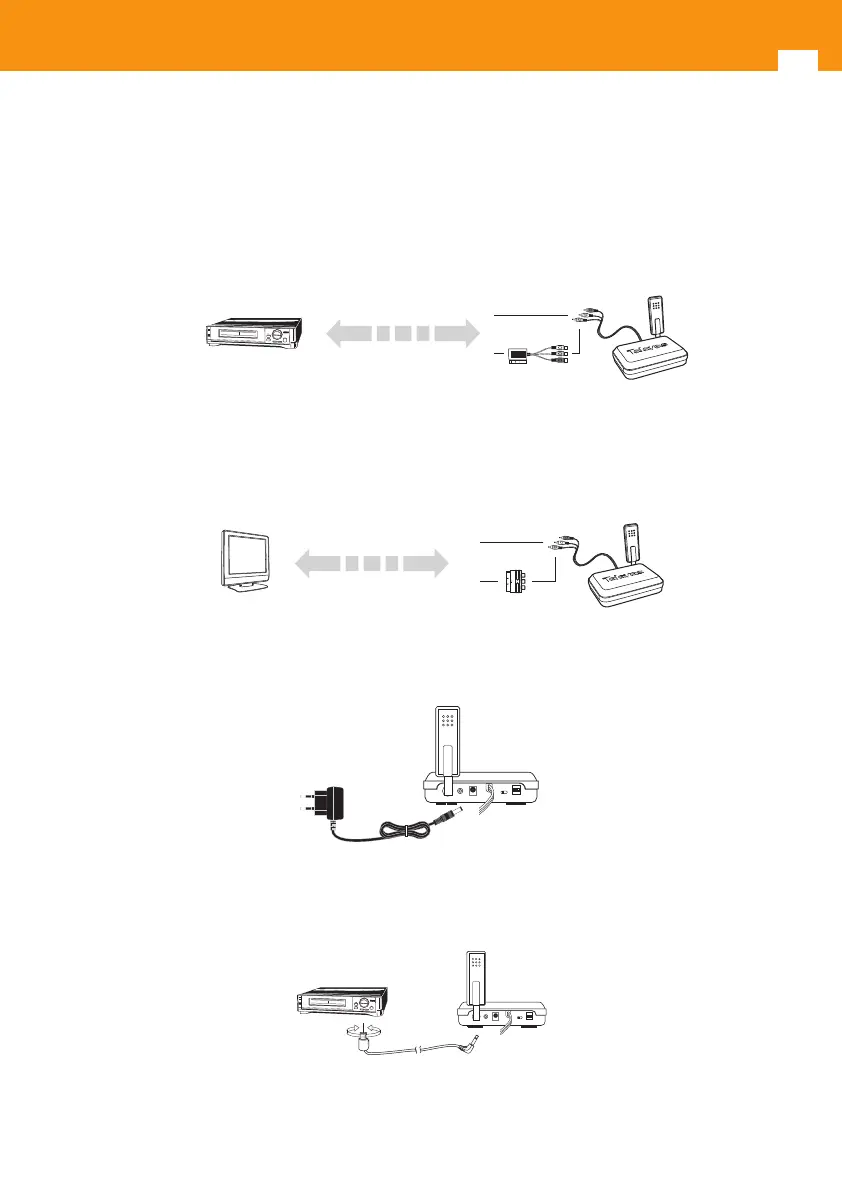

1.- Connect the transmitter (TX) to the A/V signal source. If using RCA connection, take into
account the color of the connections.
A/V Sources: Video Recorder, Digital Video Disc., Compact Disc Player, Satellite Receiver,
Camcorder, Stereo Receiver, Security Camera, Hi-Fi System, Laser Disc Player, Computer,
Cassette Deck etc.
2.- Connect the receiver (RX) to the A/V signal equipments. If using RCA connection, take into
account the color of the connections.
A/V Displays: Computer Monitor (Converted card required), Powered Speaker, TV Monitor
etc.
3.- Plug the Transmitter (TX) and Receiver (RX) into the power outlet using attached Adaptor.
4.- Plug the IR Extender to the Transmitter IR port. The upper side of the extension is rotative,
so the LED is more easily set in front of the IR sensor of the A/V signal generator equipment
.
Receiver
DC 9V
OFF/ON
POWER
ON
123
ID/CH SET
DC 9V
OFF/ON
POWER
ON
123
ID/CH SET
A/V Source
Transmitter
A/V Display
Transmitter
System Installation
