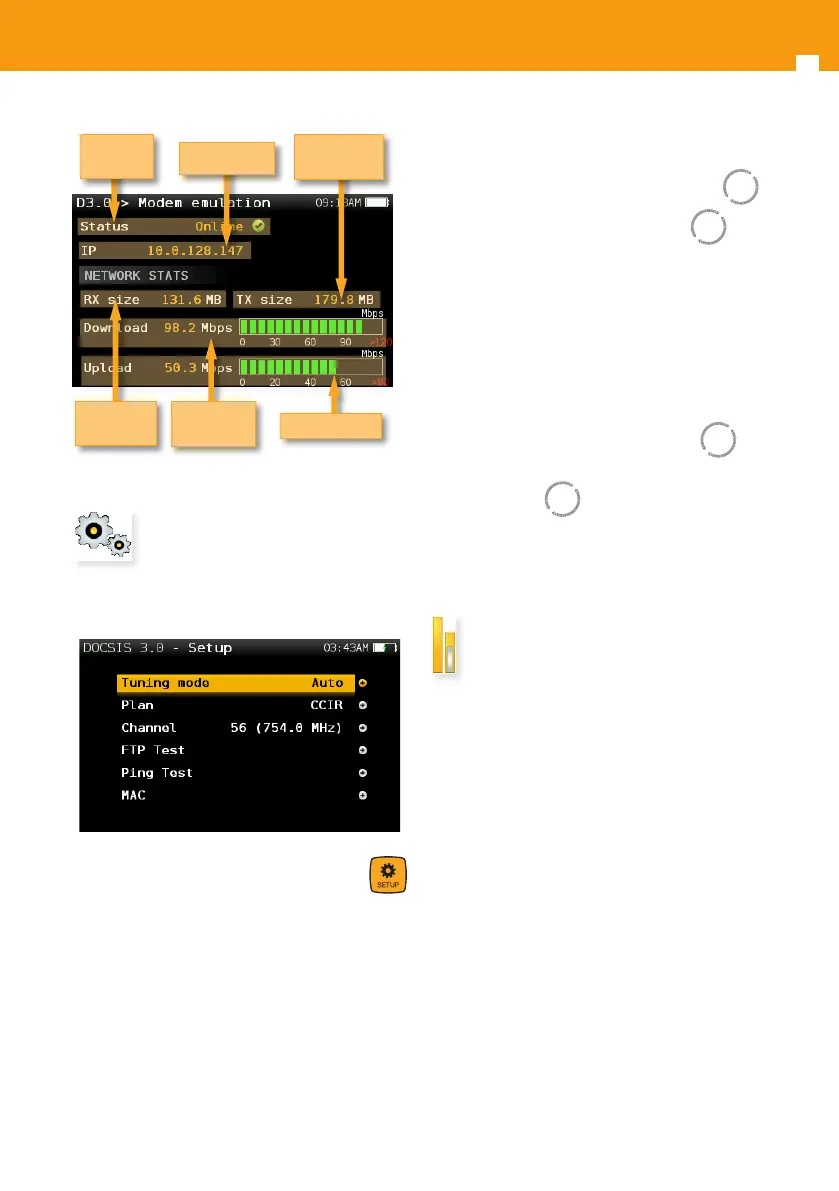

1.5. Setup
The features in this menu, allows you to set the
required parameters to analyze a DOCSIS network.
You can access to Setup menu by pressing
button.
- Tuning mode: Auto, Manual.
If Auto is selected, the H30 automatically
searches for the DOCSIS network channel. If you
select Manual, you must select one channel from
the Channel list
- Plan: FCC STD, FCC RETURN, FCC IRC, FCC HRC,
FCC OFFAIR, CCIR, Custom plans.
- Channel: Allows you to select the channel when
Manual is selected in the Tuning mode.
- FTP Test: These parameters allows to set the ftp
to do the Throughput test.
FTP Server: Enter the ftp address using .
FTP Path: Enter the le path using .
Method: GET, PUT.
GET selects the upstream channel and
PUT select the upstream for the FTP Test
in the Troughput test feature.
User: Enter the user for the FTP server.
Pass: Enter the appropriate password for the for
the FTP server user.
- Ping Test: These parameters allows to set the IP to
do the Throughput test
IP: Enter the IP address using
Count: Enter the number of PINGs to do
using
2. Channel Info
Analog and digital channels are very dierent in
terms of signal content and power distribution
and thus require the advanced SLM techniques
provided in the Televes H30.
In analog mode, video and audio levels, V/A and
Carrier to Noise (C/N) are measured.
In digital mode it´s Power, C/N, Pre-BER and
Post-BER.
2.1. Main window
Below is a capture of a Channel Info window with a
brief explanation of its features.
