14.2. Conguration
Press to change LT Monitoring options.
- Measure delay: Select the time interval
between two consecutive measure shots.
Minimun value is 5 seconds.
- Measure 1, 2, 3: Allows select the three
measures that the user wants to visualize in
the main window:
15. FM Scan
The H30’s FM Scan feature sweeps of the FM
carriers on the frequency range from 87.5 to 108
MHz.
Once located, the H30 makes a continuous update
of the level of eacf carrier.
15.1.Main Window

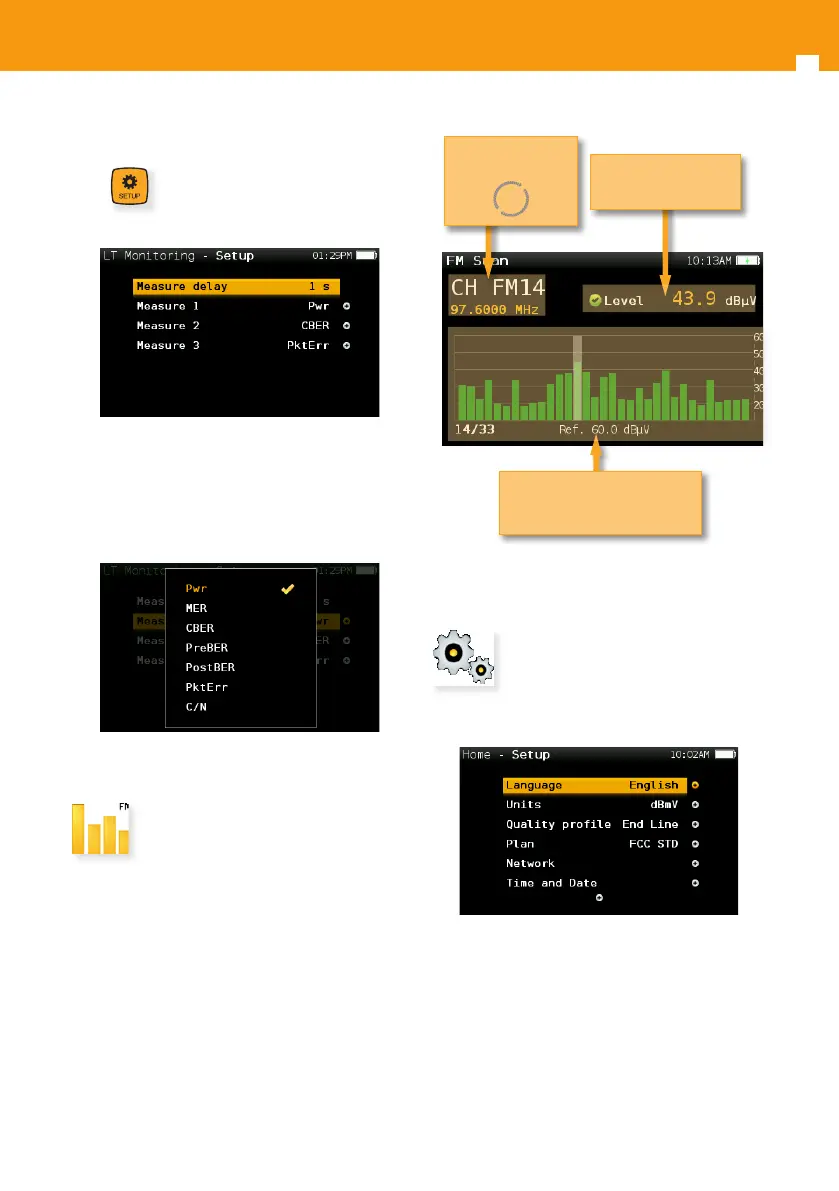

Below is a capture of a FM Scan window with a brief
explanation of its features:
16. Setup
Change main conguration settings:
- Language: English, Español.
- Units: dBµV, dBmV, dBm
- Quality proles: Trunk, Tap, End Line,
Ground.
Dierent thresholds are available for dierent
testing locations.
- Plan: FCC STD, FCC RETURN, FCC IRC, FCC
HRC, FCC OFFAIR, CCIR, and customers plans
Level of the selected
carrier
Bar graph showing the FM
carriers found
Selected channel
Change using
