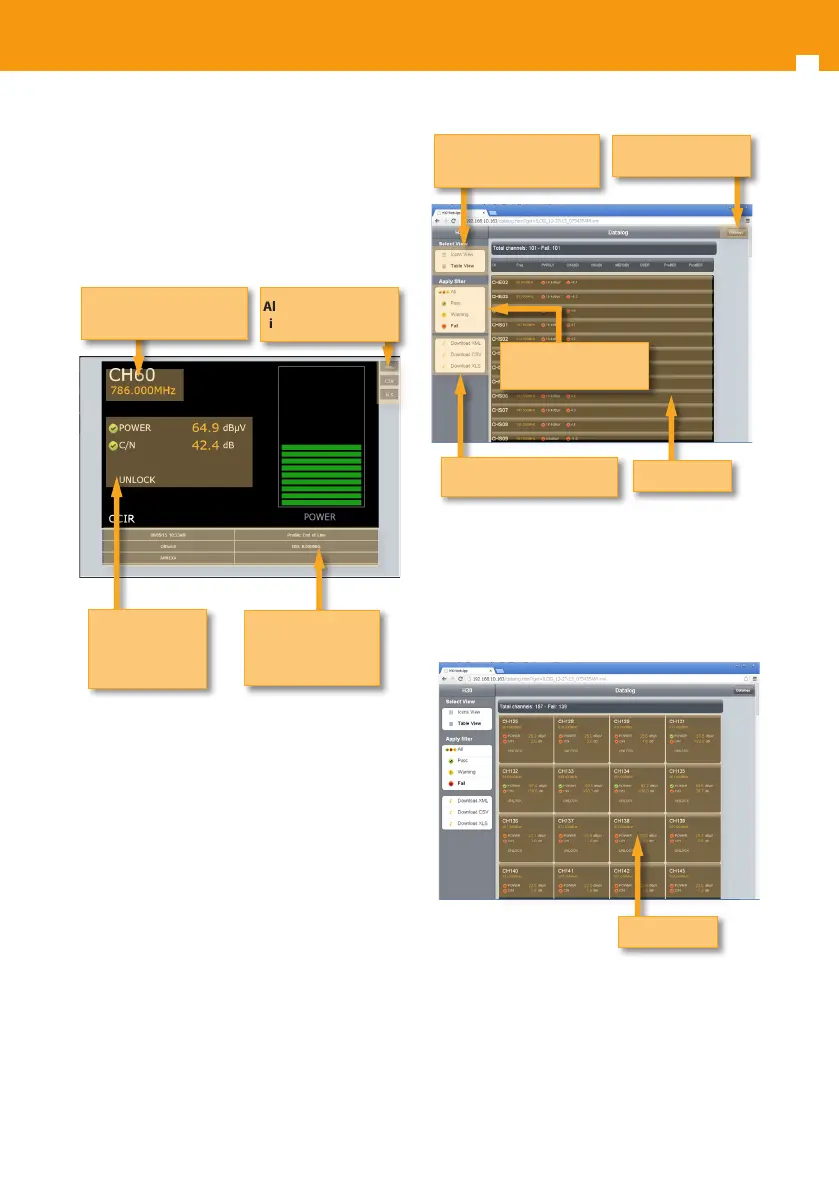

The ILOGs can have measurements of one single
channel (if it was recorded with the following
functions: Channel Info, Constellation, CTB & CSO,
Volt. & Hum). When the user selects one of theses
ILOGs, a window like the one shown bellow, will
open:
There are also ILOGs that contains the
measurements of several channels (if it was
recorded with the following functions: System
Scan and Tilt). Selecting one of these ILOGs shows
a list of all the channels of the selected datalog
with its corresponding measurements and pass/
fail indicators:
Allows to export data
in dierent formats
List of
measurements
with pass/fail
indicators
Parameters of the
channel and time
and date of the
measurement
Channel on wich the
measurements were made
Back to the list of
Datalogs
Allows to export data in
dierent formats
Table view
Two views: Table view and
Icon view
Filter results with
quality indicators
There are two views for the list of channels: Table
view and Icon view.
Above is shown the Table View, and below the
Icons View.
Icons view
The Datalogs saved using the LT Monitoring system
are appointed by default starting with “LTM”.
When the user selects one of theses Datalogs, a
window like the one shown bellow, will open:
