Televes zAshd User Manual

6
High De nition TV Satellite Receiver
123

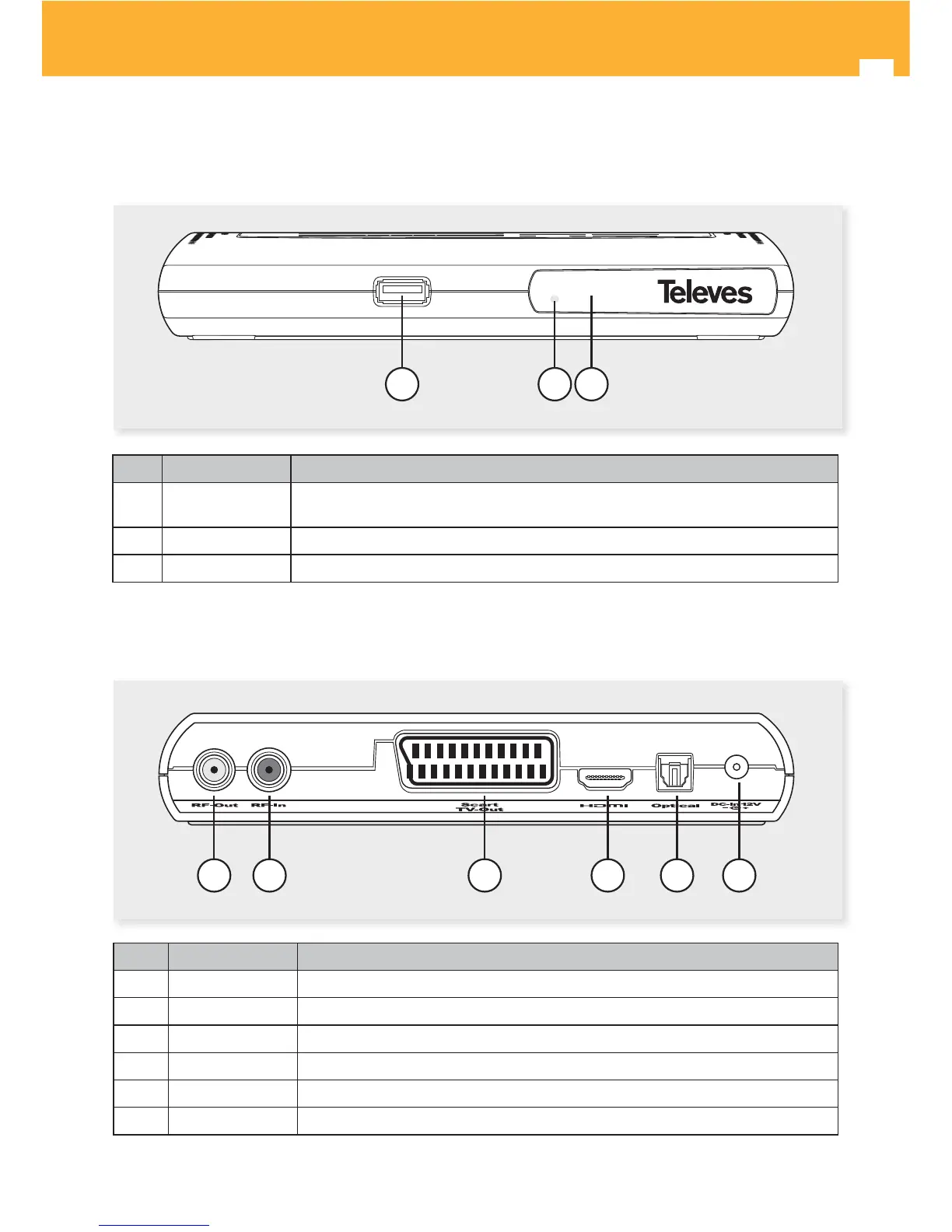

3. Description of connections
Receiver Front Panel
Receiver Rear Panel
No. Name Function description
1 HOST USB Connection for a PEN DRIVE, memory card reader or external hard drive (FAT 32) with
separate powering.
2 LED Operating LED (Red: Standby; Green: power ON).
3IR IR sensor.
No. Name Function description
1 RF-OUT RF output signal loop for connecting another receiver.
2 RF-IN Input signal from the satellite antenna (powering +13, 18V/250mA select. by menu)
3 SCART TV-OUT TV set connection via SCART.
4 HDMI High De nition Multimedia Interface.
5 OPTICAL Optical audio output
6 DC-IN 12V Input for connecting the AC adapter 220 Vac/12 Vdc
21 3 4 5 6

Televes zAshd Specifications

General

Brand	Televes
Model	zAshd
Category	Receiver
Language	English
